3″ (76.2 mm) x .120″ (3.04 mm) HAVEN #912 Double End Facer

Stock #: 3977

SKU: 3977 Categories: , Tag:

UTUBE NUMBER: 3977
MANUFACTURER: HAVEN
MODEL NUMBER: 912

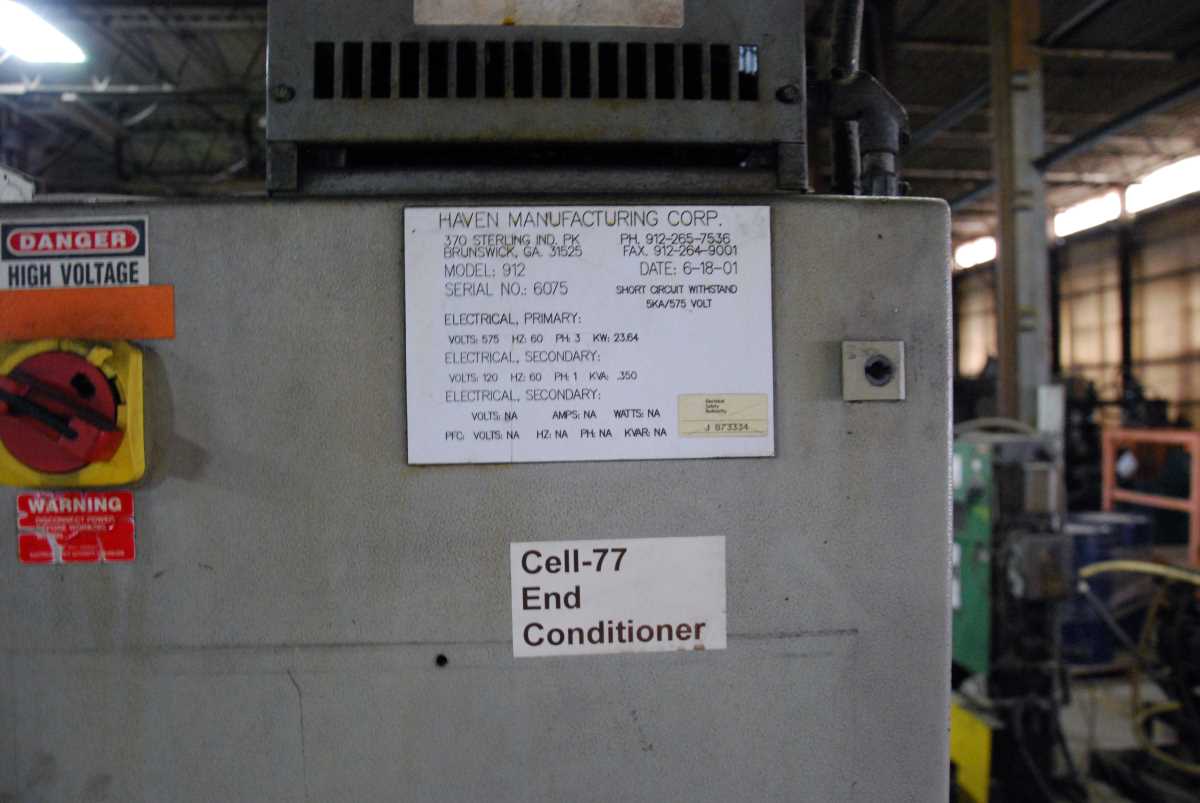

SERIAL NUMBER: 6075

SPECIFICATIONS:
Maximum Tube Diameter: 3″ (76.2 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: .120″ (3.04 mm)
Minimum Wall Thickness: .028″ (.711 mm)
Length: 6″ – 60″

Tube Finish:
• 30 Degree I.D. Chamfer, 30 Degree O.D. Chamfer
• End Face Flat & Square to Center Line of Tube
Feed: Adjustable, Electric
Pneumatic: 80 PSI – 4 Bar
Spindle Drives: (2) 7.5 HP Motors

OVERALL DIMENSIONS: 12′ x 7′ x 6.5′
APPROXIMATE WEIGHT: 5,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
