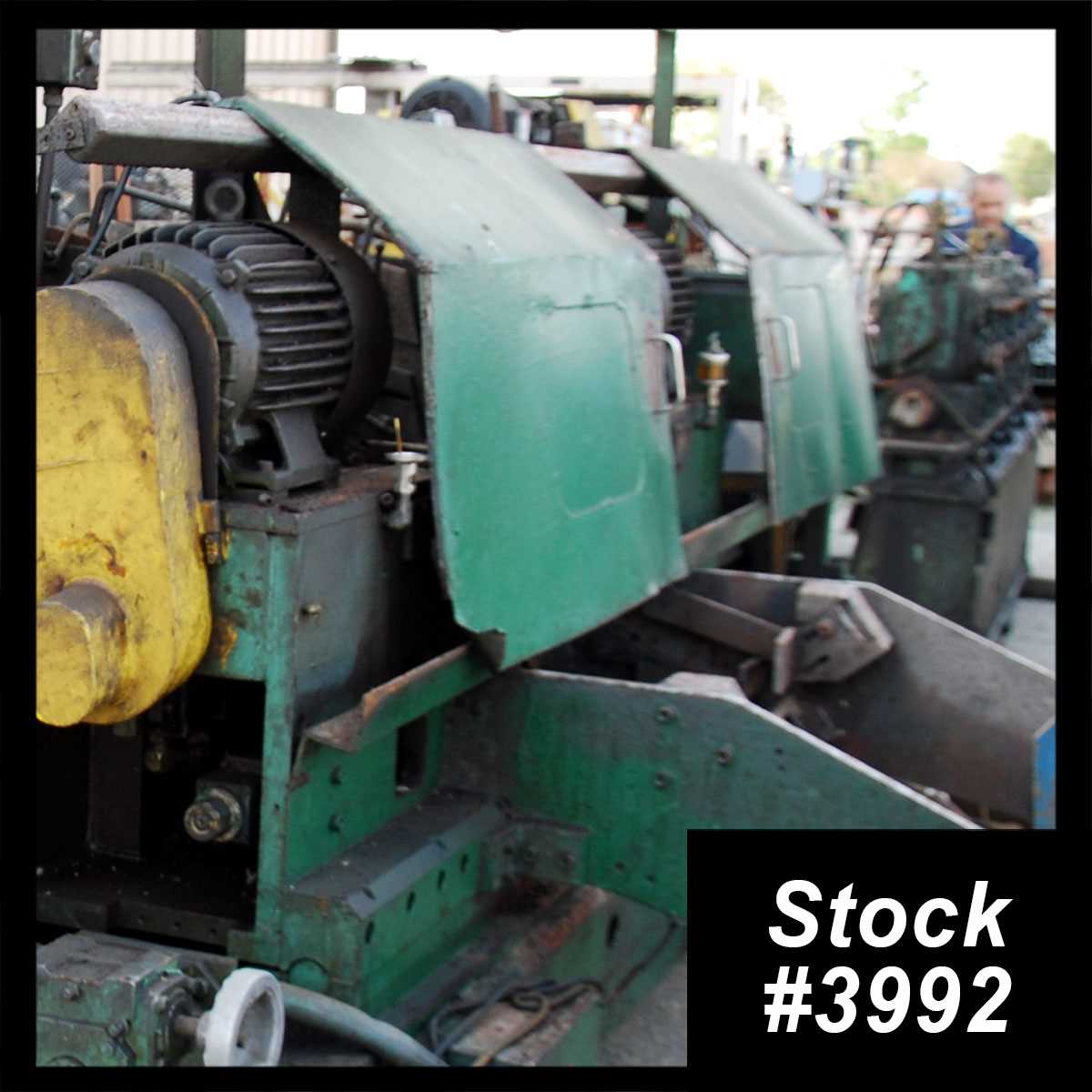

3″ (76.2 mm) x .120″ (3.04 mm) HAVEN 912 Double End Facer

Stock #: 3992

SKU: 3992 Categories: , Tag:

UTUBE NUMBER: 3992
MANUFACTURER: HAVEN
MODEL NUMBER: 912
SERIAL NUMBER:

SPECIFICATIONS:
Maximum Tube Diameter: 3″ (76.2 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: .120″ (3.04 mm)
Minimum Wall Thickness: .028″ (.711 mm)
Length: 6″ – 80″
Tube Finish:
End Face Flat & Square to Center Line of Tube
Feed: Adjustable, Electric
Power: 440 – 460 VAC, 60 Hz, 40 AMP
Pneumatic: 80 PSI – 4 Bar
Production Rate: 500 – 3,000 Parts Per Hour
Length Tolerance: +/- .005″
Length Readout: Digital in Inches and mm
Spindle Drives: (2) 7.5 HP Motors

NOTES:
Needs Controls
Missing Tooling Chucks
Missing One Side of Feeder
No Tooling

OVERALL DIMENSIONS: 20′ x 7′ x 6.5′
APPROXIMATE WEIGHT: 6,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
