UTUBE NUMBER: 2577
MANUFACTURER: ALPHA INDUSTRIES
MODEL NUMBER: FR-16 2-300
SERIAL NUMBER: 12
YEAR:
SPECIFICATIONS:
Maximum Tube Diameter: 4" (101 mm)
Minimum Tube Diameter: 1" (25.4 mm)
Maximum Wall Thickness: .125" (3.17 mm)
Minimum Wall Thickness: .035" (.889 mm)
Die Rail Length: 64"
Maximum Mill Speed: 300 FPM (91 MPM)
Maximum Cuts: 35 CPM
EQUIPPED WITH:
Minster Air Clutch

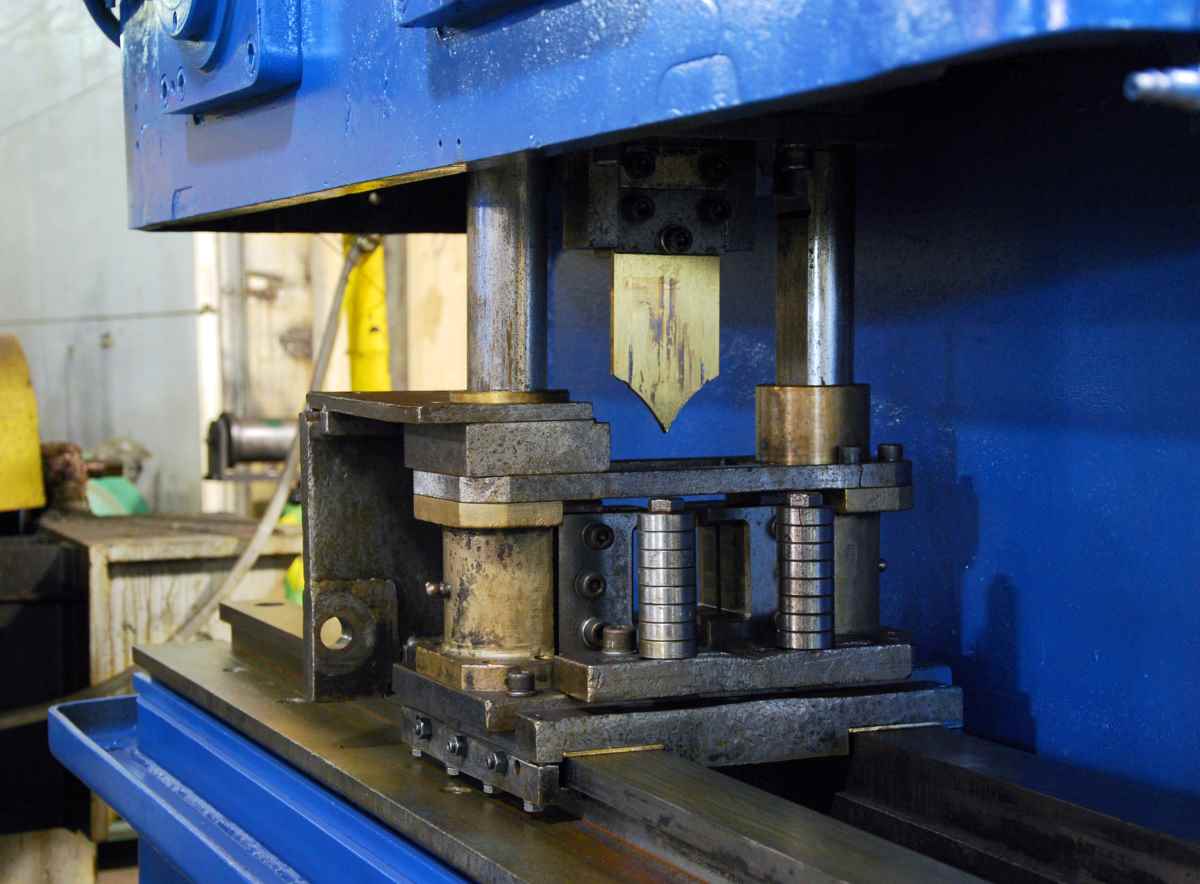

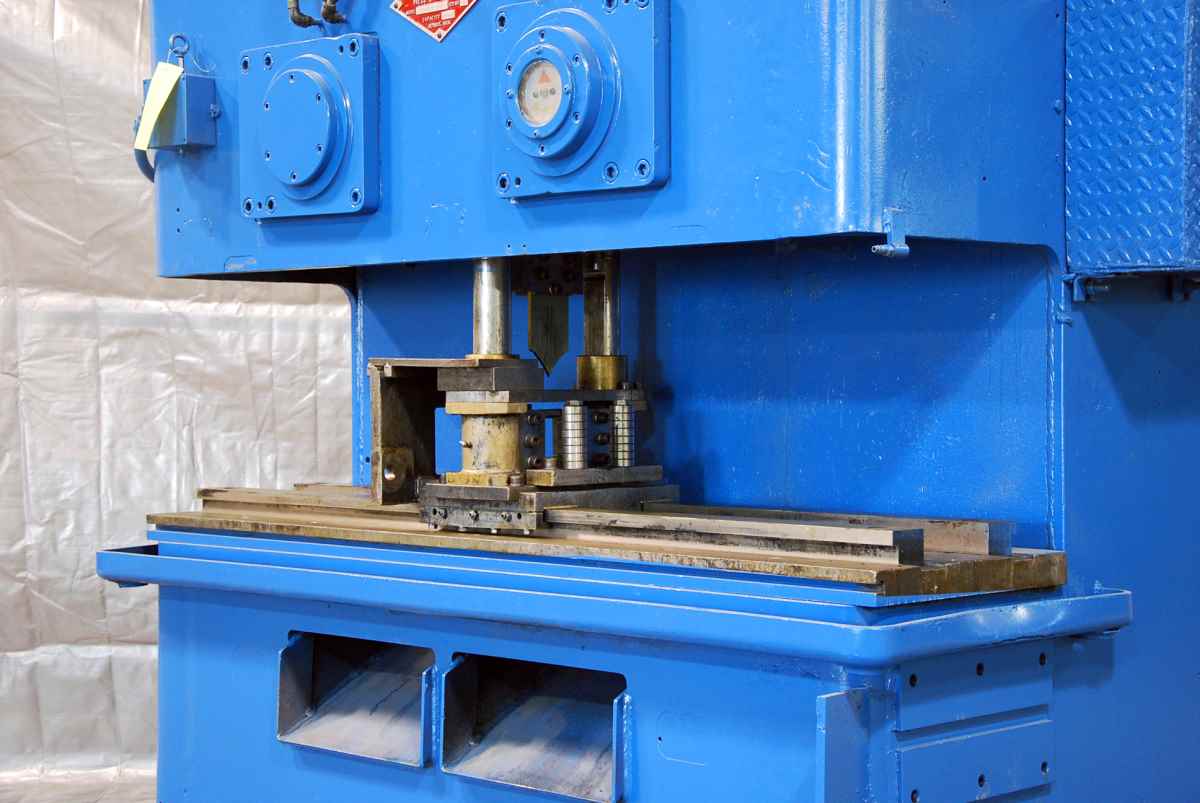

Single Cut Die Set
TALLYRAND Length Control System

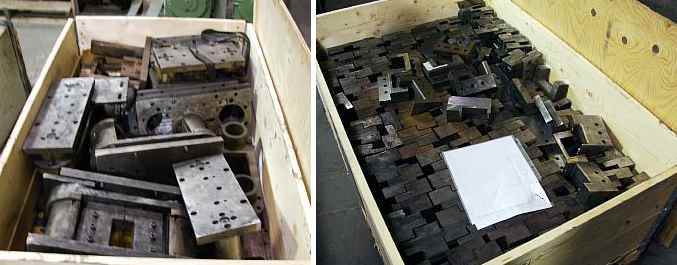

(2) Crates of Jaws & Blades

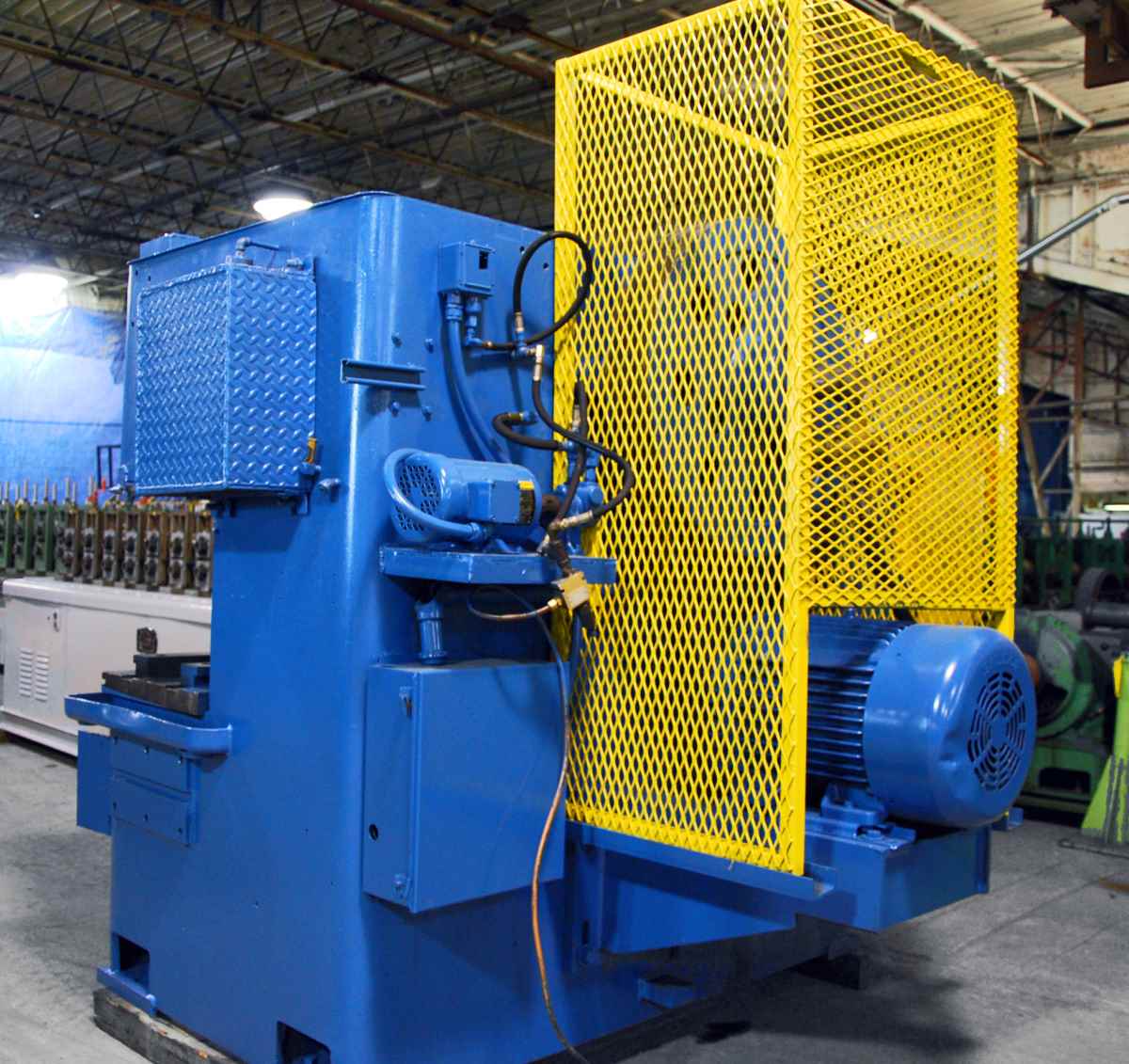

25 HP Motor
Drawings
CONDITION: Good
DIMENSIONS:
Cut-Off: 6′ x 6′ x 6′
Accelerator: 7-1/2′ x 2′ x 2′
TALLYRAND Cabinet: 3-1/2′ x 1-1/2′ x 5-1/2′
LOCATION: Universal Warehouse, Perrysburg, Ohio
