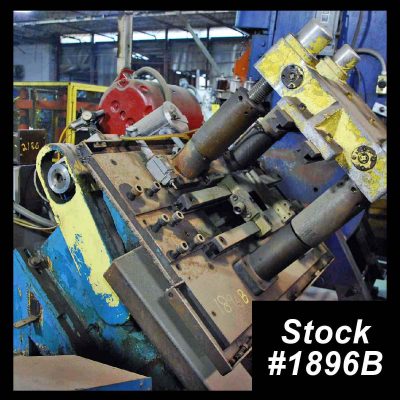

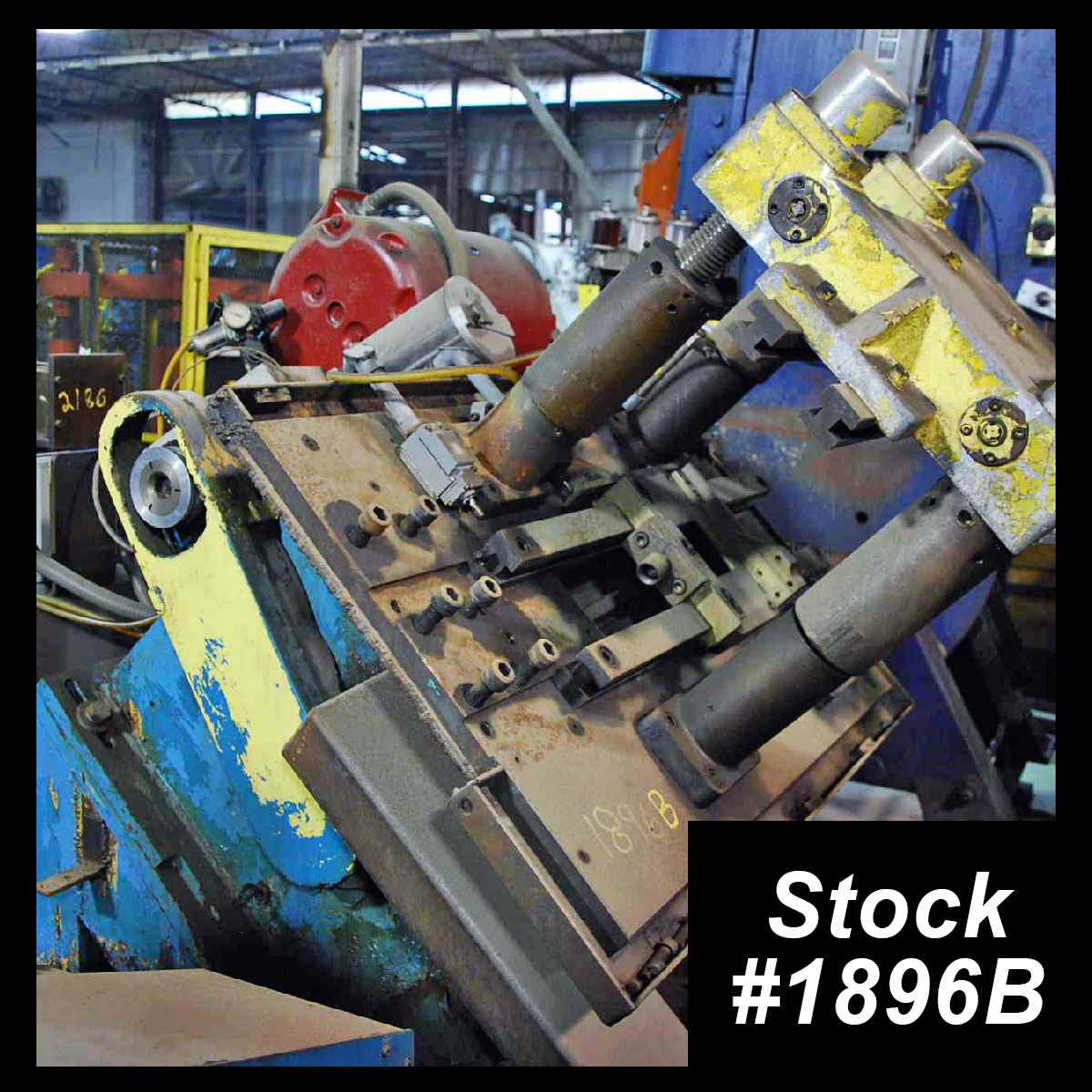

UTUBE NUMBER: 1896B
MANUFACTURER: ALPHA INDUSTRIES / THERMATOOL
MODEL NUMBER: 35 – 19 – 5
SERIAL NUMBER: 46
SPECIFICATIONS:
Capacity: 35 Ton
Maximum Tube Diameter: 2" (50.8 mm)
Minimum Tube Diameter: 1/2" (12.7 mm)
Press: 45 degree angle
Top Die Rail: 32"
Bottom Die Rail: 34"
Nominal Stroke: 5" (127 mm)
EQUIPPED WITH:
MINSTER Clutch
Blade Mister External Lube Pump & Motor
Motor: 7.5 HP, 1160 RPM, 220 / 440 / 3 / 60
NOTE: Missing Air System for Clutch
No Die Set
OVERALL DIMENSIONS: 4-1/2′ x 6′ x 5′
APPROXIMATE WEIGHT: 4,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
