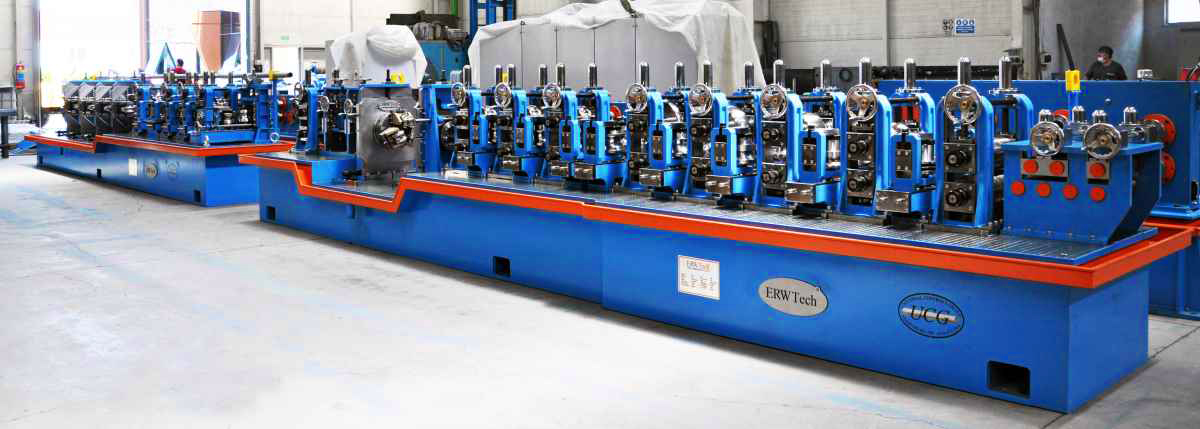

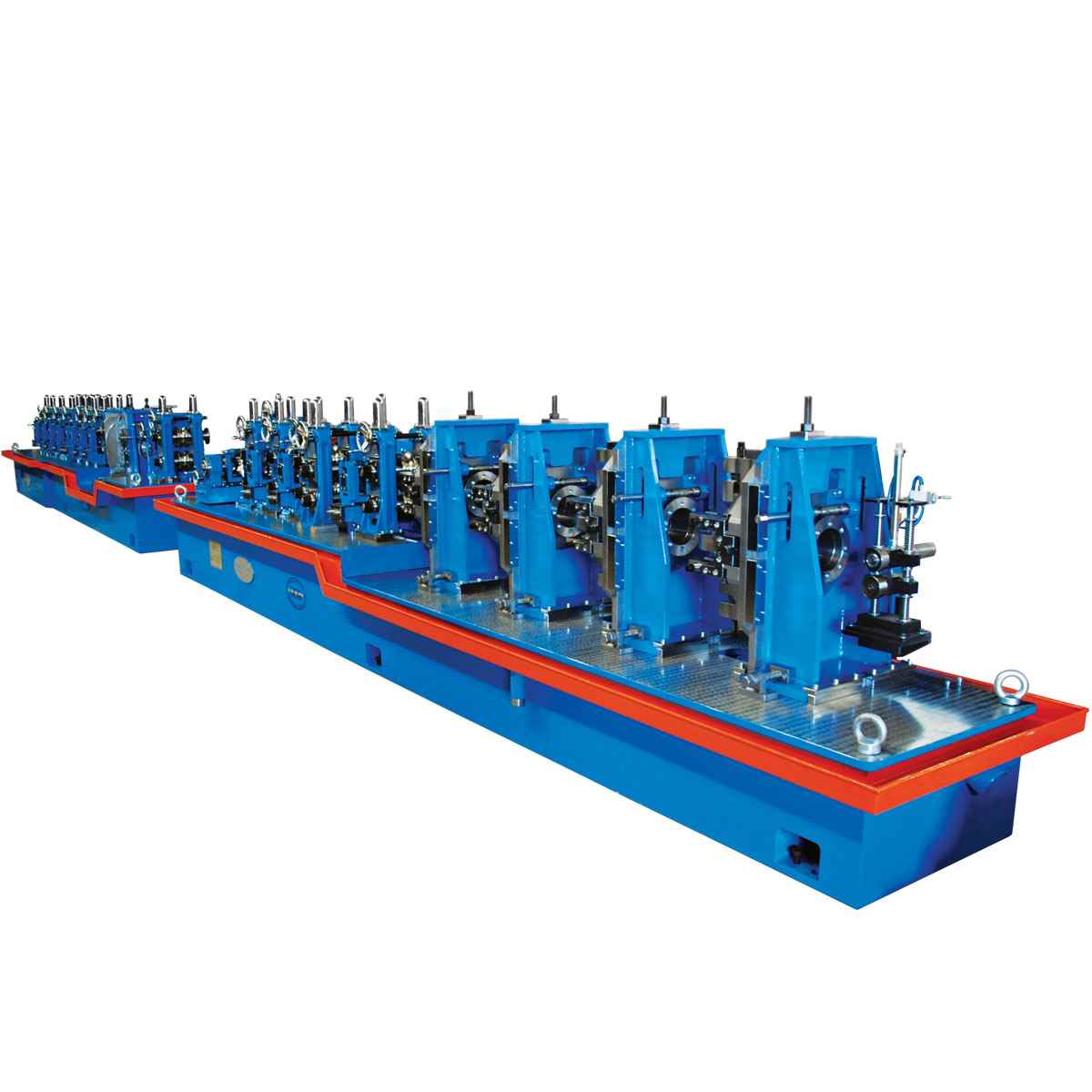

UTUBE NUMBER: P25-028
MANUFACTURER: ERWTech/UCG
YEAR: 2025
SPECIFICATIONS:
Maximum Tube Diameter: 3-1/2″ (89 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Square: 2-3/4″ (70 mm)
Maximum Rectangles: 1-1/2″ x 4” (40 mm x 100 mm)
Wall Thickness: .027″ – .160″ (0.7 mm – 4 mm)
Maximum Strip Width: 11″
Maximum Line Speed: 320 FPM (100 m/min)
Machine Maximum Power: 1200 kW
Line Direction: Right to Left

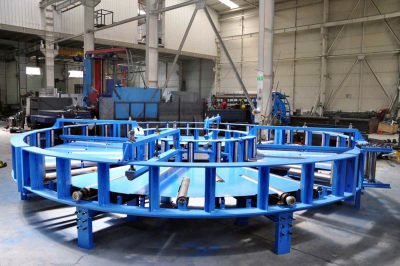

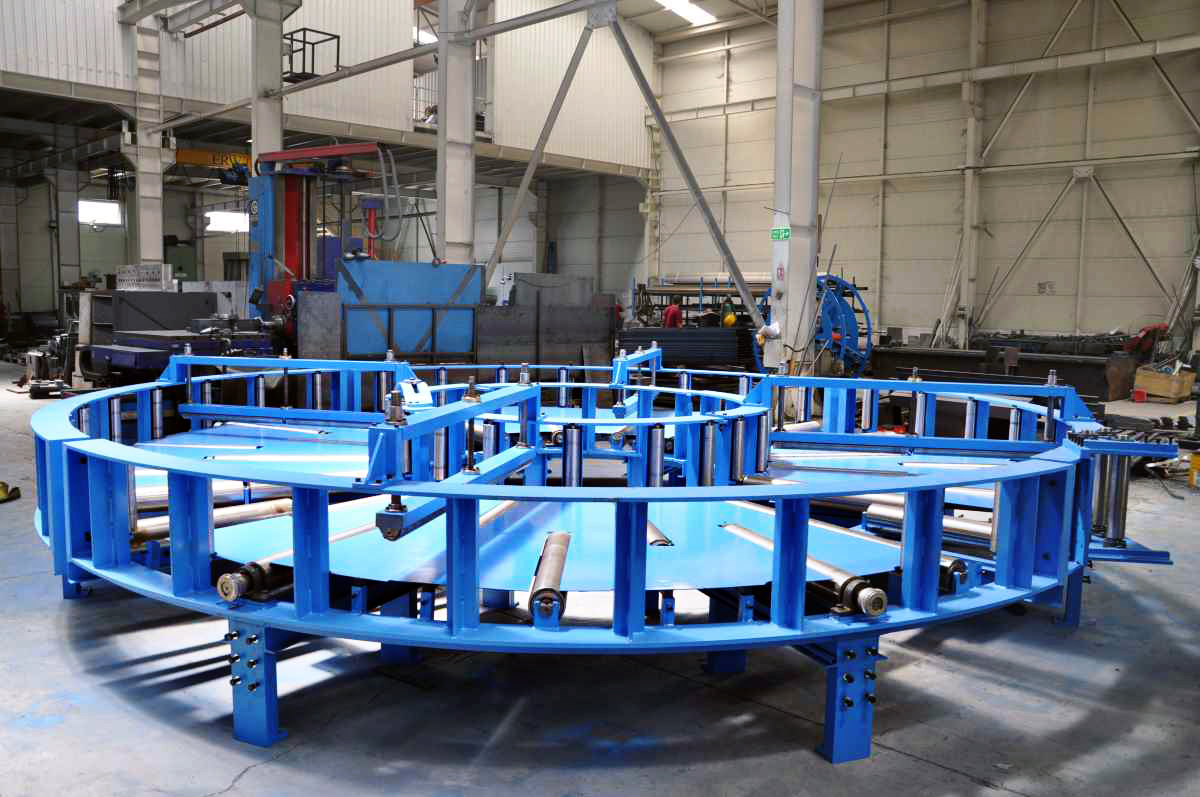

STRIP ACCUMULATOR

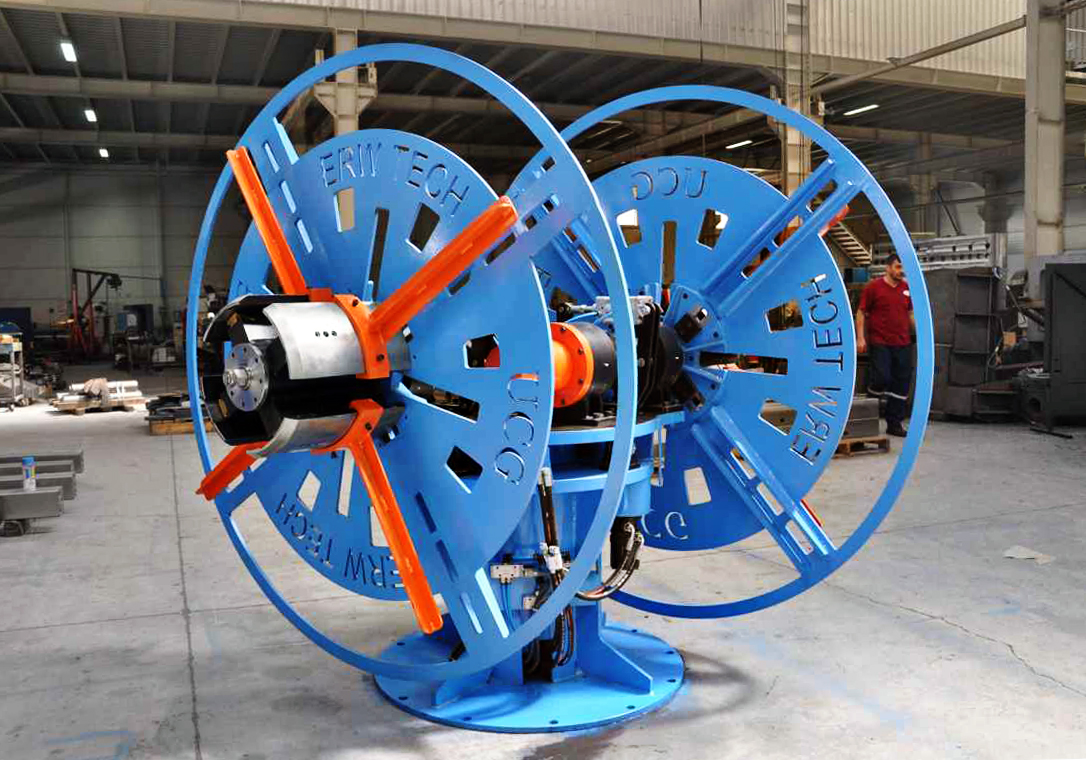

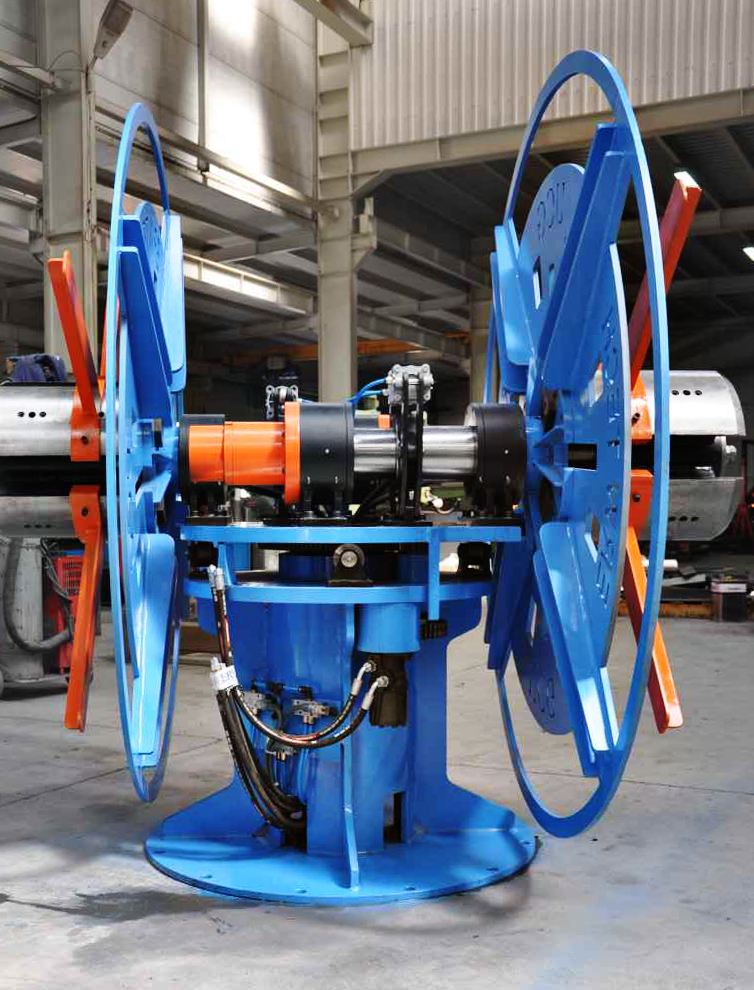

DOUBLE UNCOILER:
Capacity: 11,000 Lbs per side
Strip Width: up to 12″
Coil ID: 18″– 20″
Coil OD: up to 72″
Hydraulic Rotation & Expansion
Pneumatic Brake & Lock Pin
Hydraulic Unit

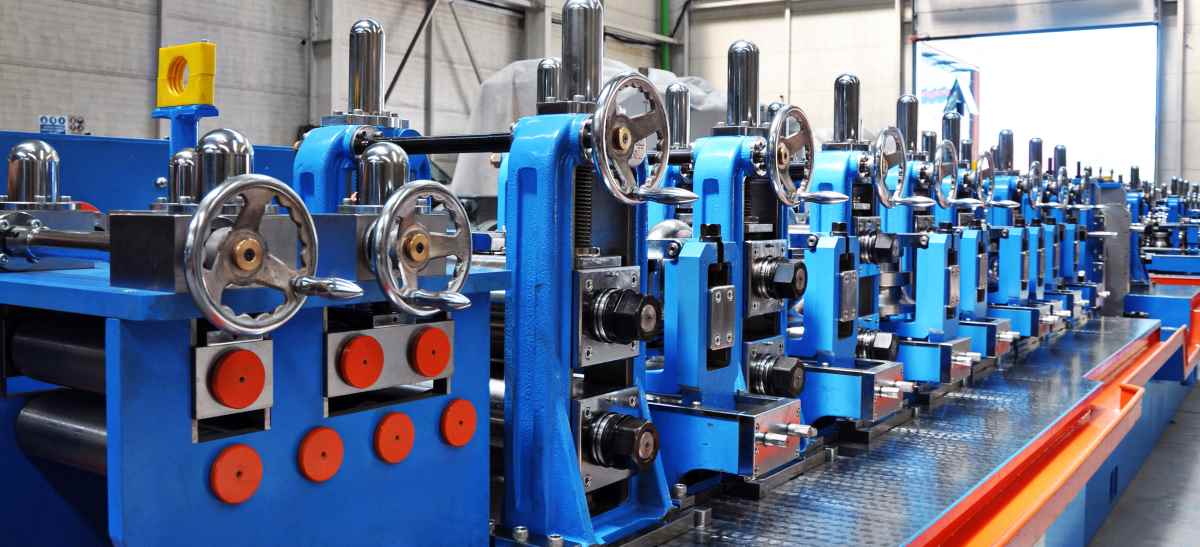

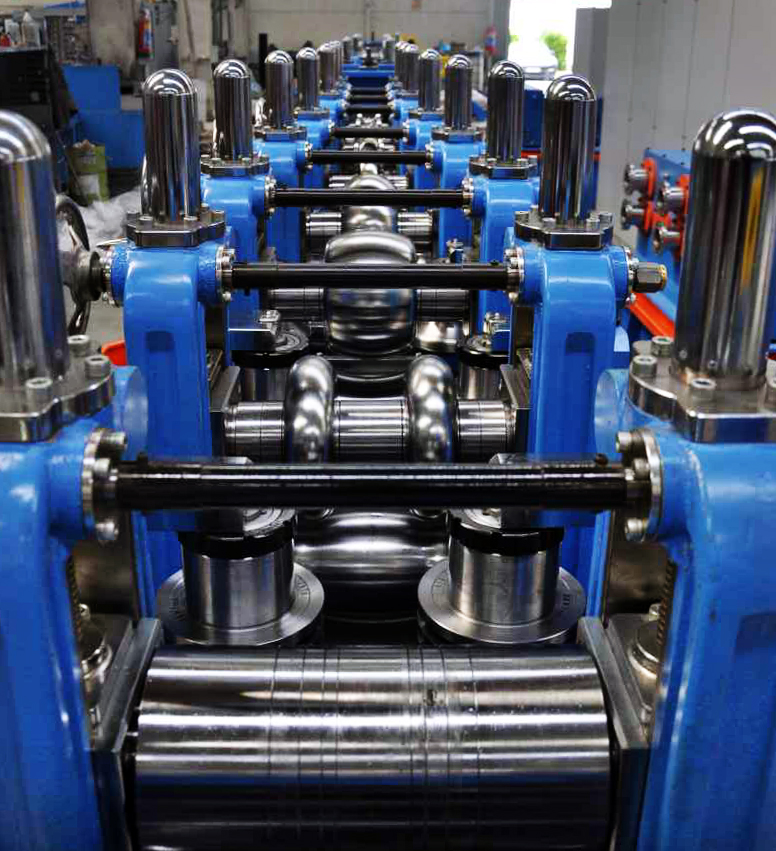

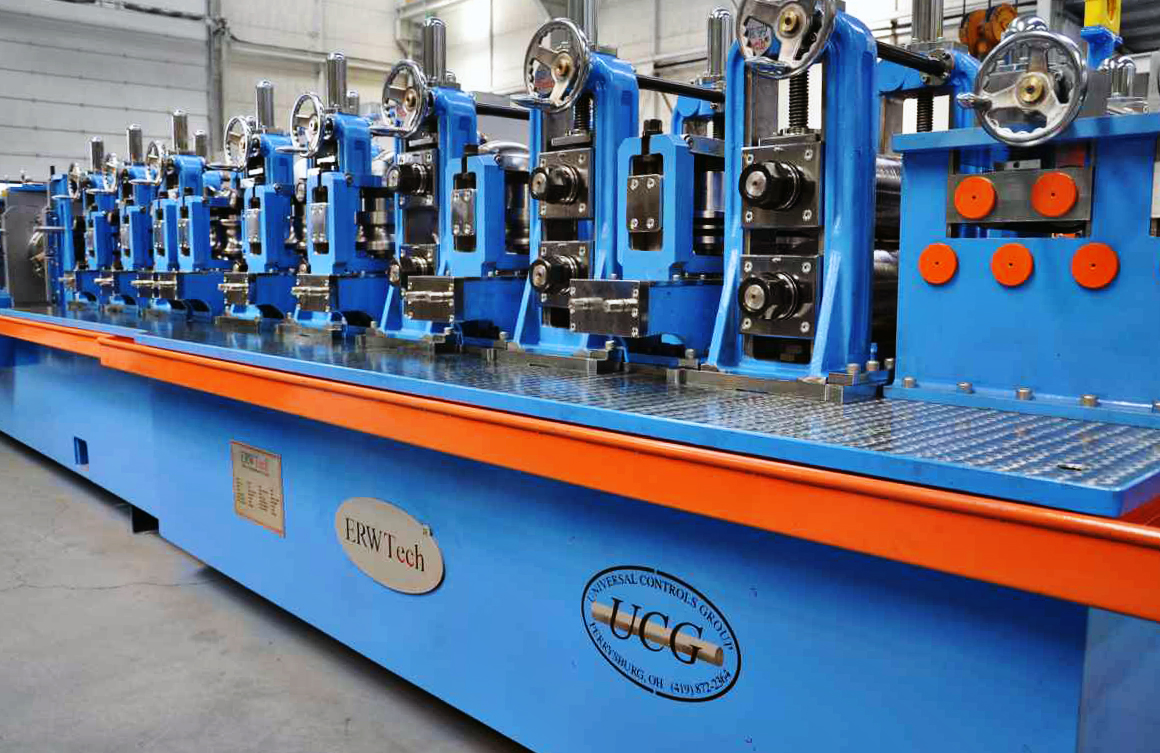

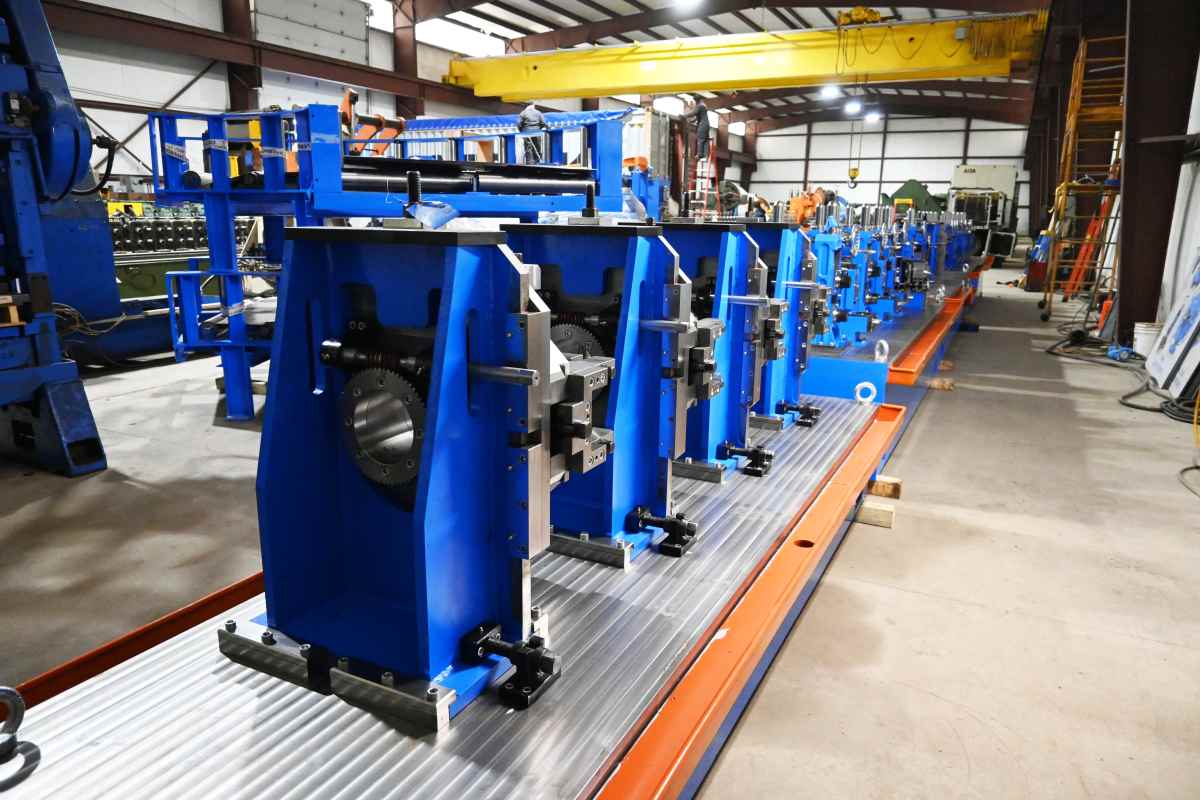

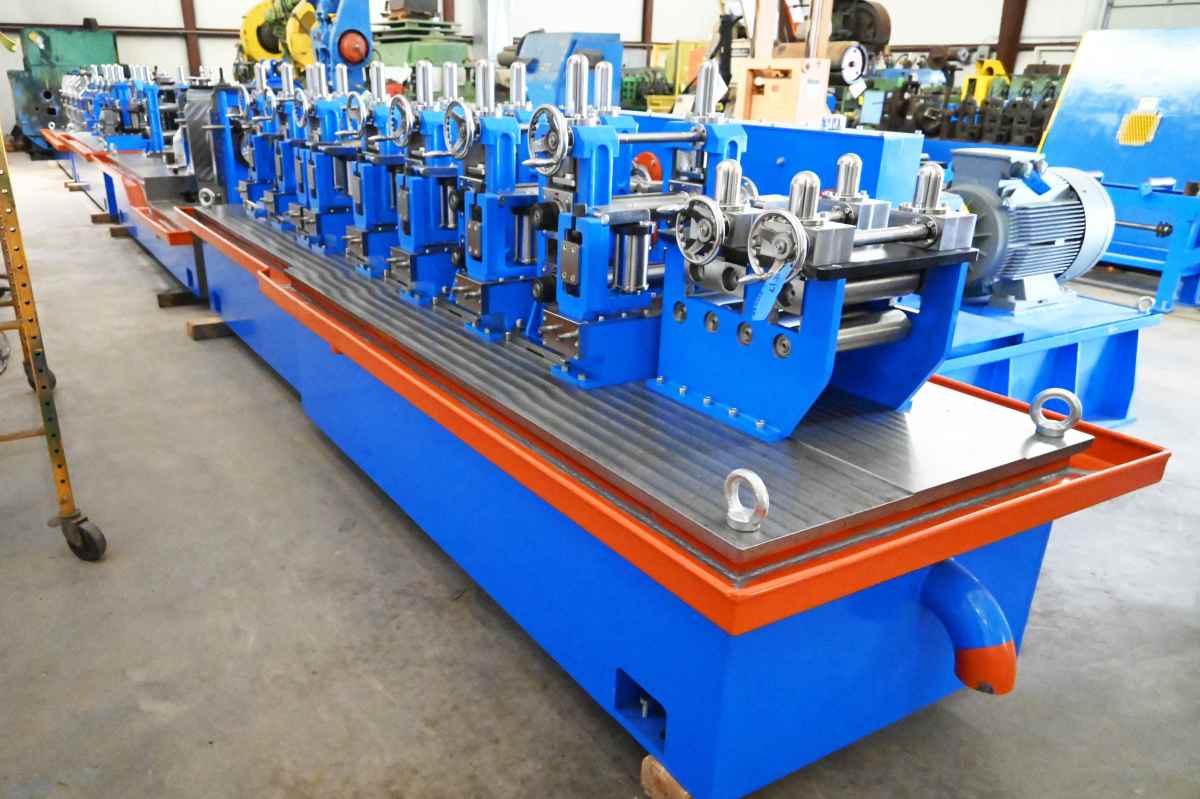

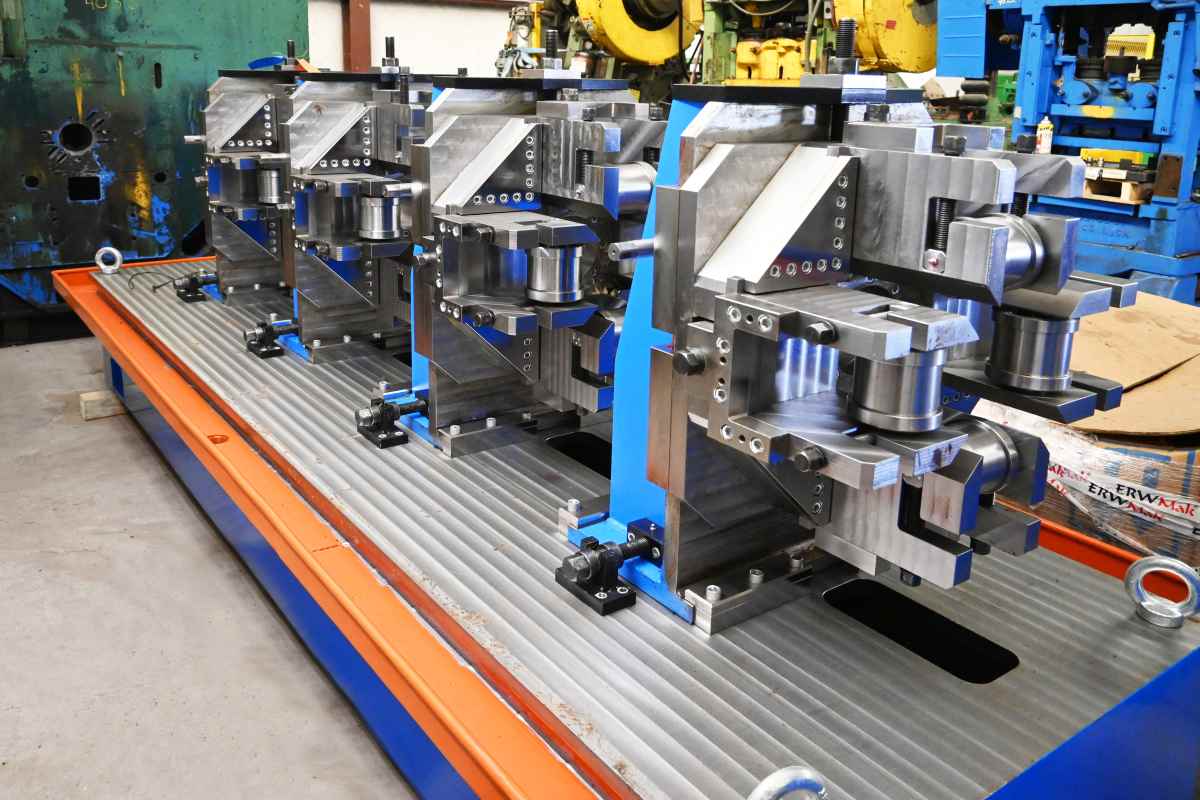

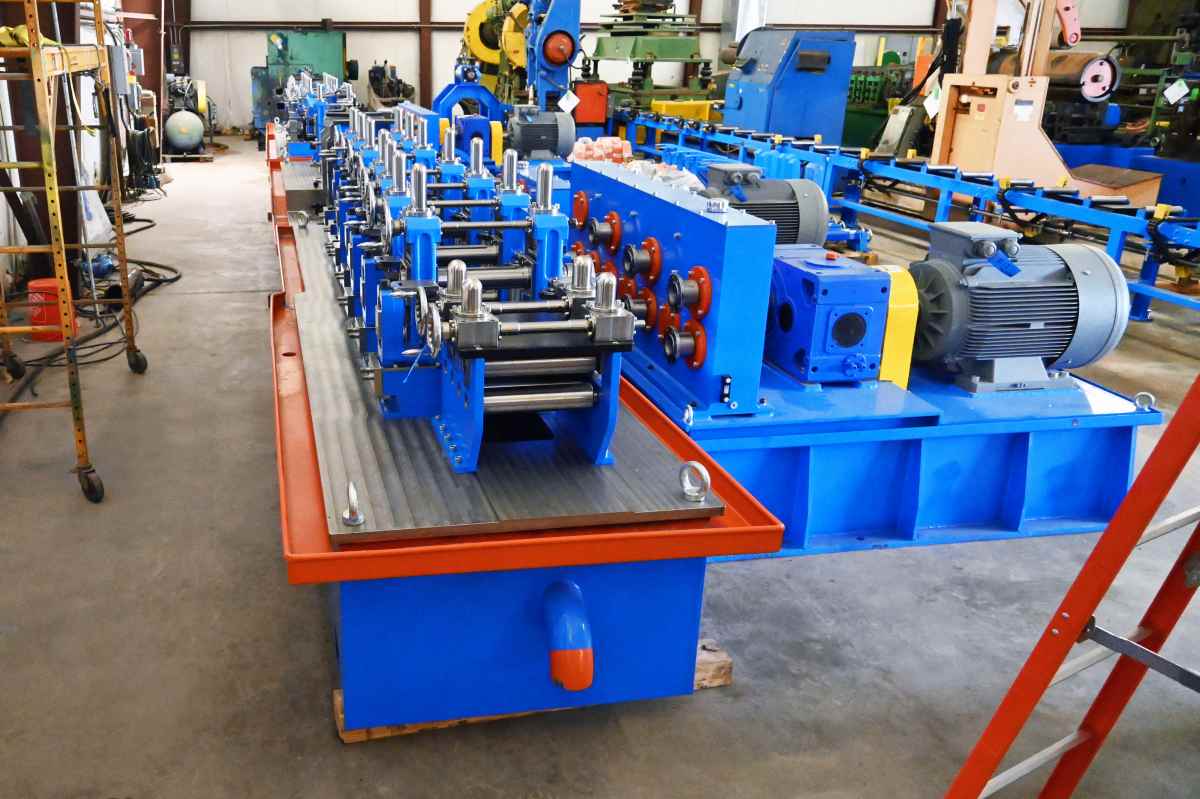

FORMING MILL:
4-Roll Entry Guide
(3) Driven Breakdown Stands
(5) Idle Side Rolls
(3) Driven Fin Stands

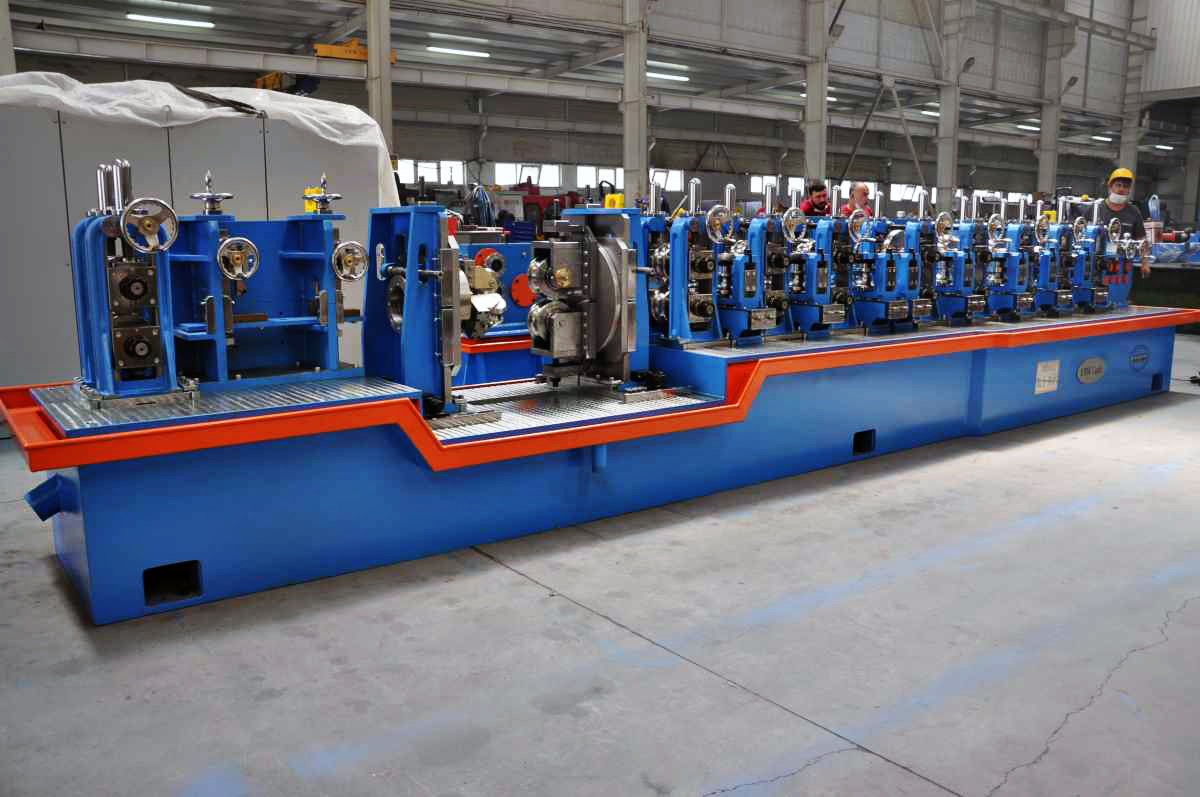

WELDING SECTION:

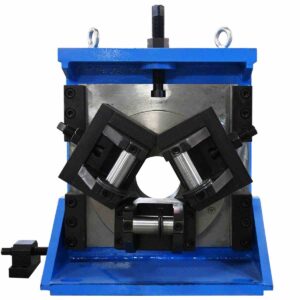

3-Roll Weld Pressure Unit
Single Scarfing Unit

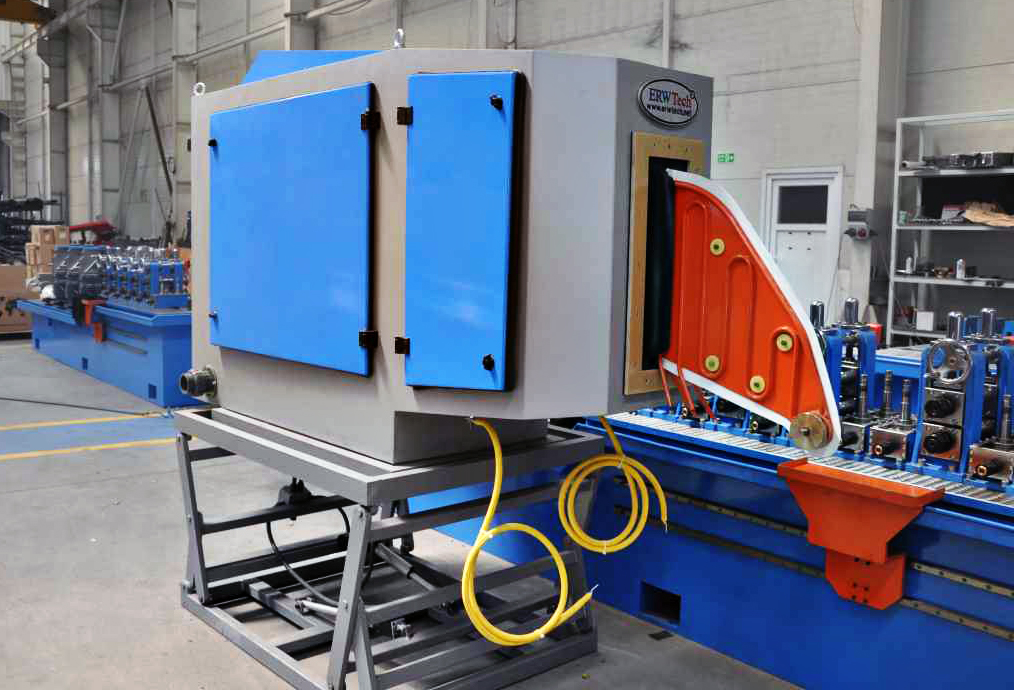

WELDER:
300 kW Solid State, High-Frequency
Input: Volts: 480
Amps: 630
Freq. HZ: 60
Phase: 3
Motorized Adjustments
COOLANT SECTION:
Flood-Type

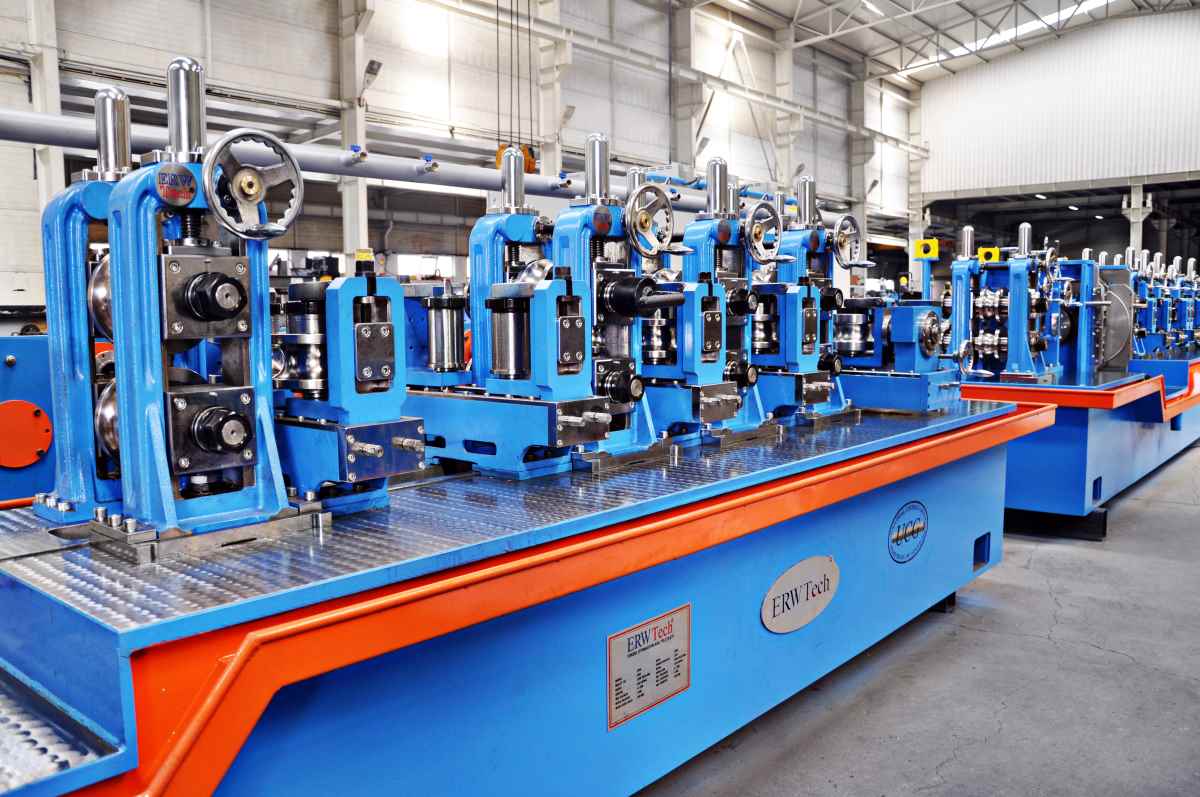

SIZING MILL:
(3) Driven Sizing Stands
(3) Idle Side Rolls

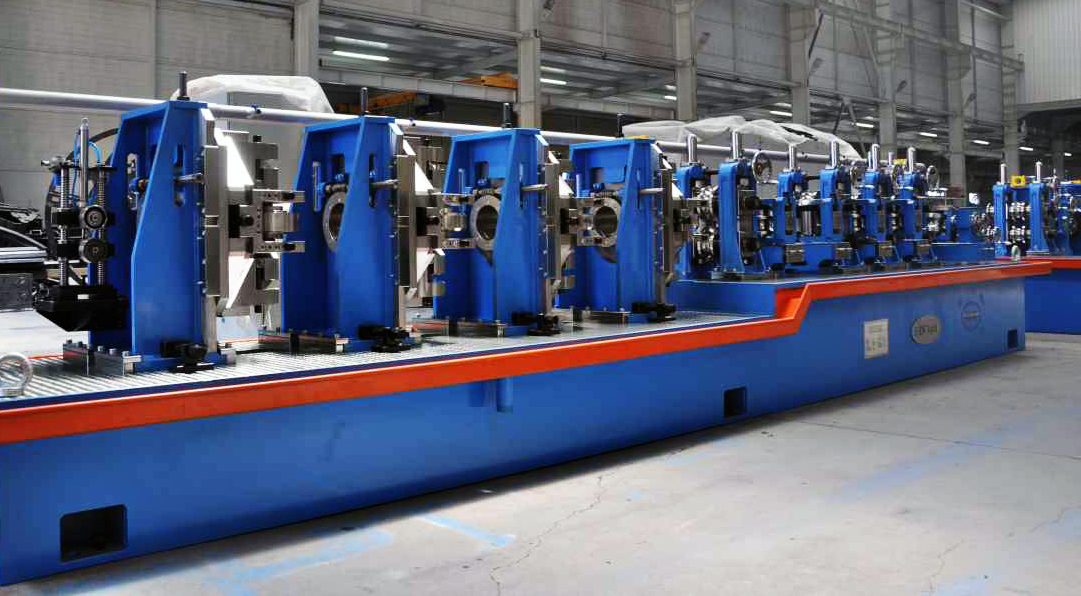

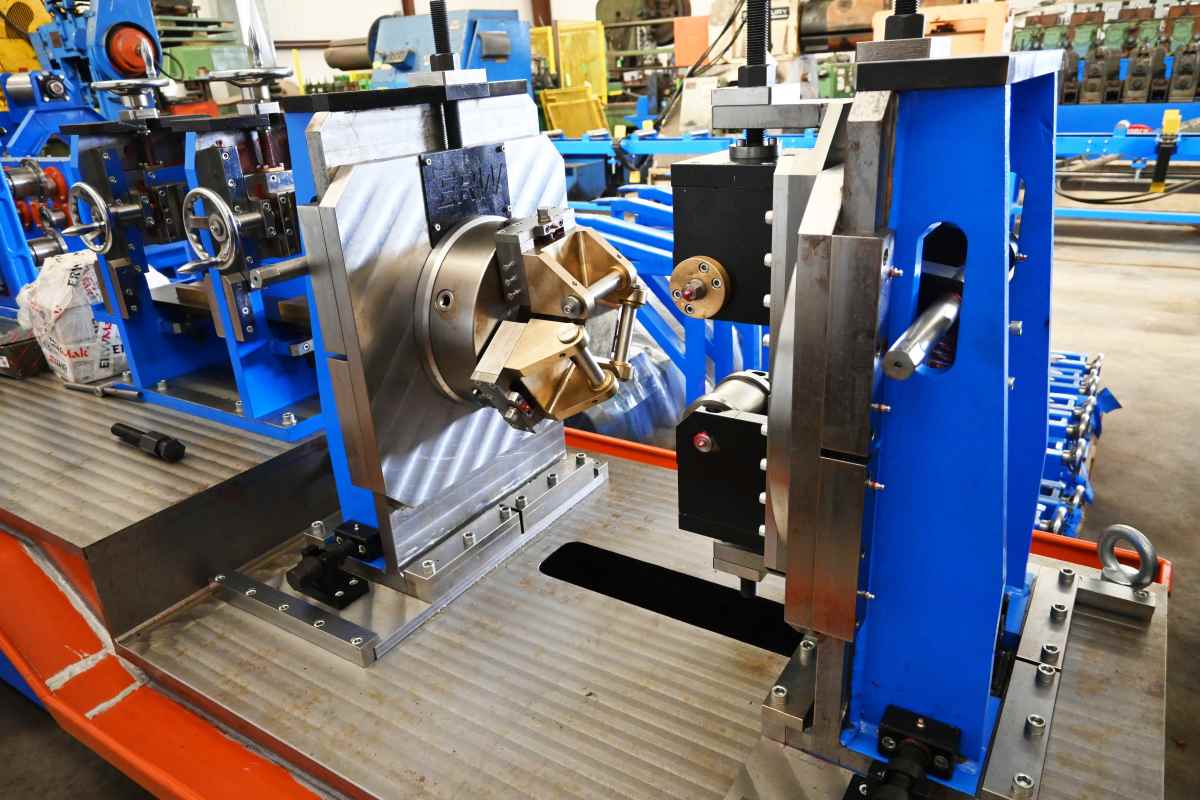

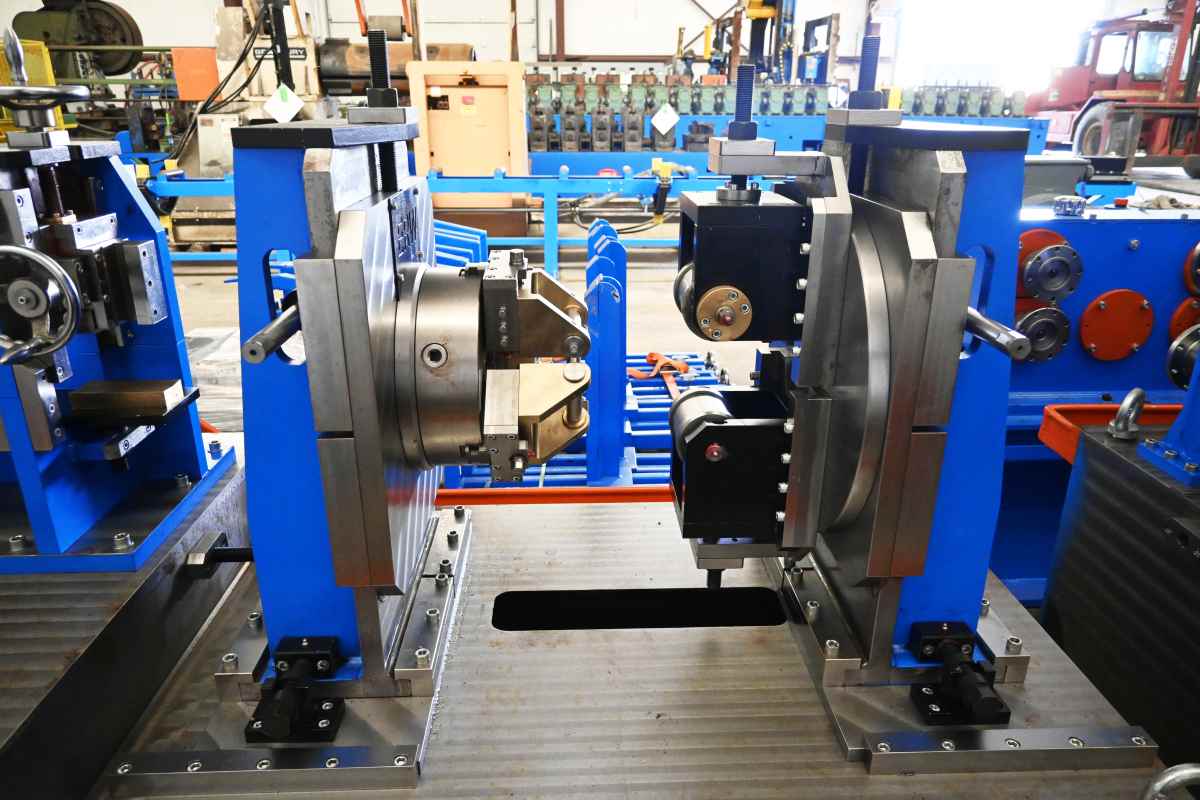

Straightener, Turkshead 4-Roll

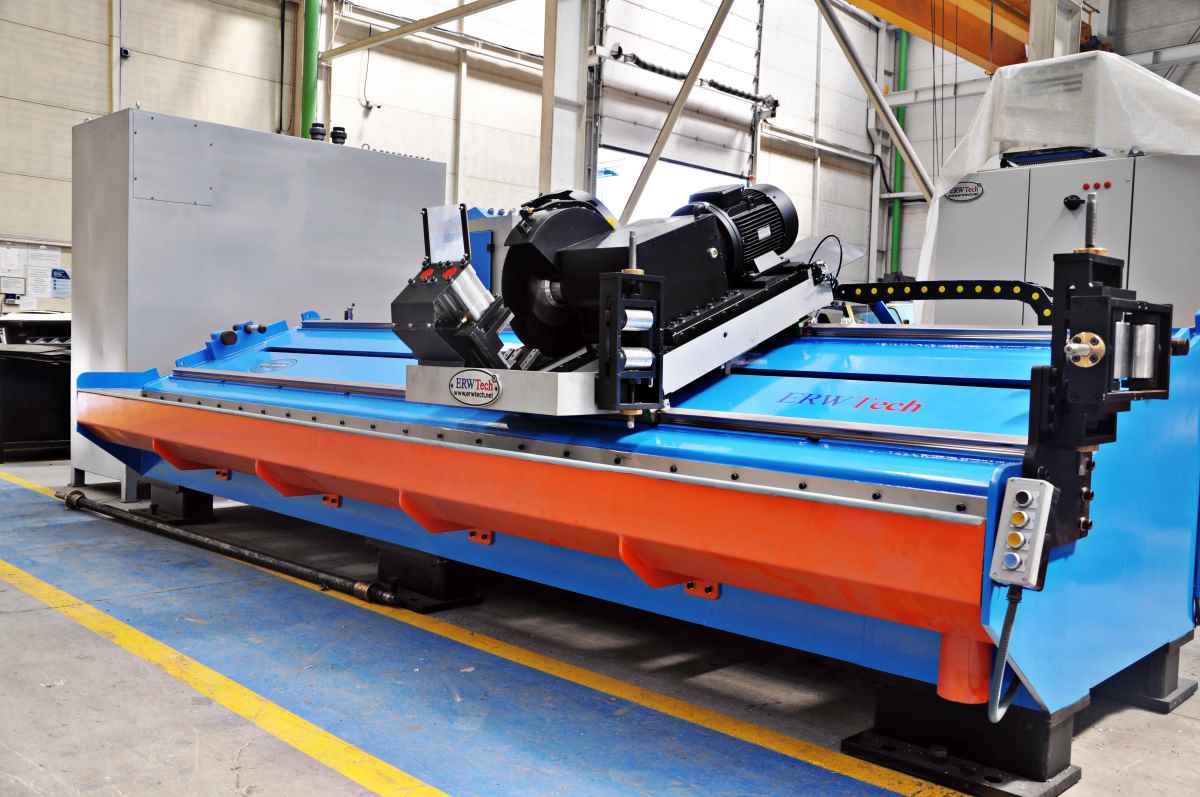

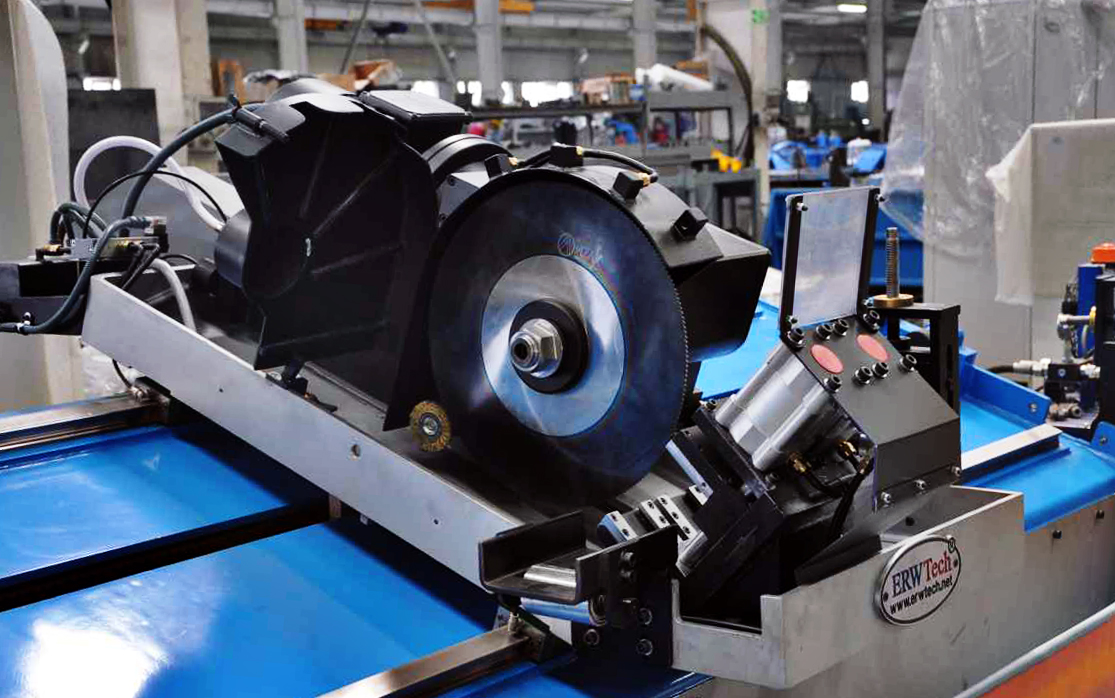

HIGH-SPEED FLYING COLD SAW:
Maximum Tube Diameter: 3-1/2″ (89 mm)
Blade Type: HSS-TCT
Length Measurement System
Touch Screen Controls
RUNOUT TABLE
MILL DRIVE:
(2) 30 HP DC Motors
UCG Mill Control Panel
UCG Accelerator Control Cabinet
LOCATION: Universal Warehouse, Perrysburg, Ohio
Quality-built machinery from ERWTech and services from UCG offers new tube mill lines that are dependable, affordable, and fully supported out of NW Ohio, USA.
Services provided by UCG include start-up and commissioning, installation management, training for your staff, in-stock common replacement parts for quick delivery, technical support, maintenance and more.

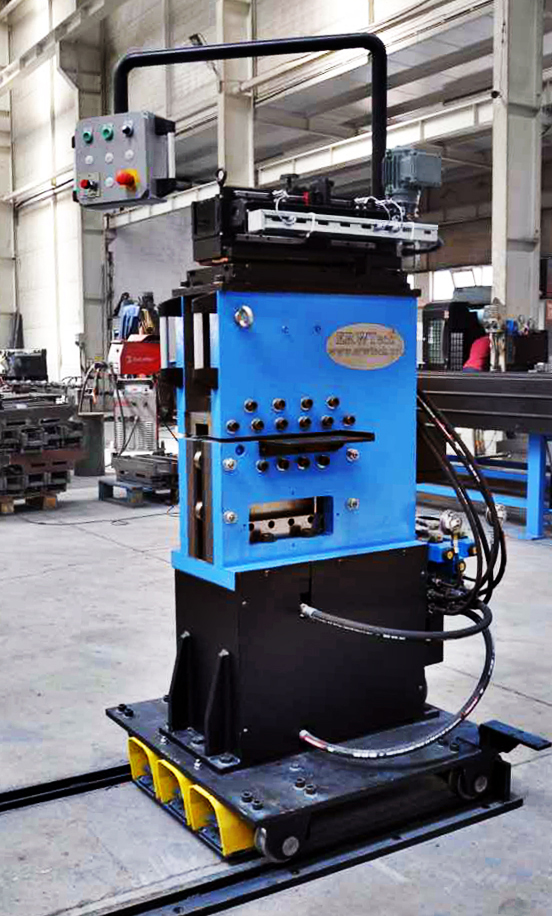

New high-frequency tube mill lines are available with uncoiler, shear & end welder, strip accumulator, rolling mill, solid state high-frequency welder, high-speed flying cold saw, automatic packing system and more.
Contact us for a machine or complete line quote 1 (419) 872-2364.
Searching for a Specific Machine?
Our inventory is always changing. Contact us for help finding the machinery you need. We offer new machinery options tailored to your requirements.
Automation Solutions
We design, manufacture, and install control panels, drive systems, die accelerators, and other components for industrial metalworking machinery. Our team has over a century of experience specializing in tube, pipe, and rollform machinery. We deliver efficient and economical automation solutions worldwide.
Start-Up and Service Support
Our in-house engineering and service team offers installation management, start-up, commissioning, operator training, on-site service, and technical support. We prioritize quick machinery implementation and ongoing assistance to maintain efficiency.
Parts and Consumables
To minimize downtime, we stock common replacement parts at our Perrysburg, Ohio warehouse. Our team ensures prompt delivery to keep your operations running smoothly.
Machinery Reconditioning Services
We offer machine reconditioning and rebuilding services, updating to the latest technology, expanding capabilities, and improving performance. Reusing your equipment increases value, ensures accuracy, enhances safety, and eases operation.
Selling Your Machinery Made Easy
We purchase tube mills, rollformers, coil handling machinery, and other industrial metalworking machinery. Selling options include cash sale, trade-in, consignment, and auction. Contact us to learn more about our services and selling options.
Care is taken to provide a reliable description of these new high frequency tube mills, but please note that these descriptions are not guaranteed. Prospective purchasers are encouraged to verify crucial details. We reserve the right to correct typographical errors. Please read the terms and conditions of sale pertaining to these new high frequency tube mills. Please be aware that all machinery is subject to prior sale.
