UTUBE NUMBER: 4003
MANUFACTURER: HAVEN
MODEL NUMBER: 873
SERIAL NUMBER: 5060
SPECIFICATIONS:
Maximum Tube Diameter: 3″ (76.2 mm)
Maximum Squares & Rectangles: 3″ (76.2 mm) Diagonal
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: .120″ (3.04 mm)
Line Direction: Left to Right
Cycle Speeds: Up to 5,000 Cycles/Hr
Maximum Cut Length: 10′
EQUIPPED WITH:
20′ Bundle Loader
Touch Screen Control

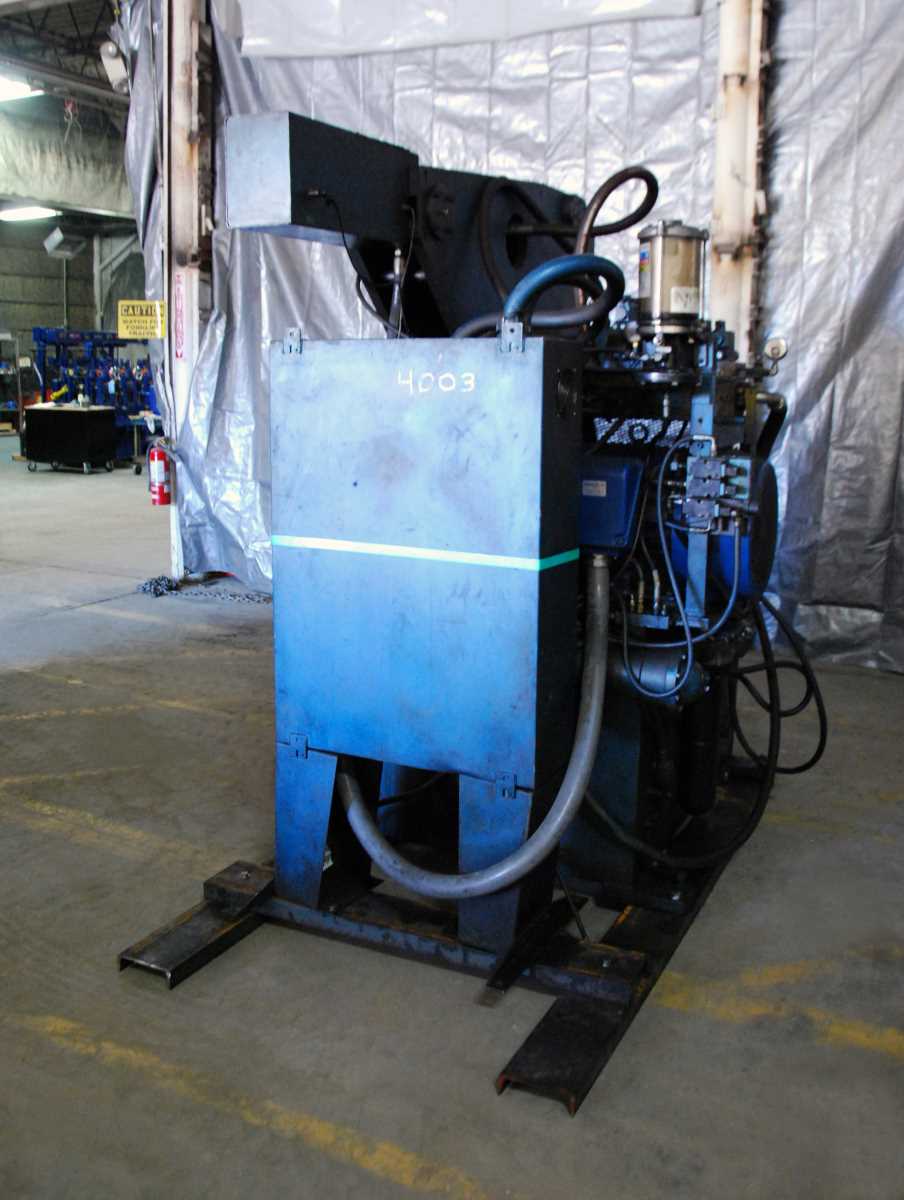

VICKERS Hydraulic Pump

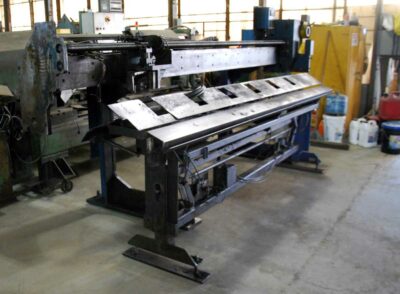

Target Assembly
BIJUR Central Grease System
30 HP Motor: 230 / 460 / 60 Hz / 3 Phase
10′ Exit Conveyor & Dump Table

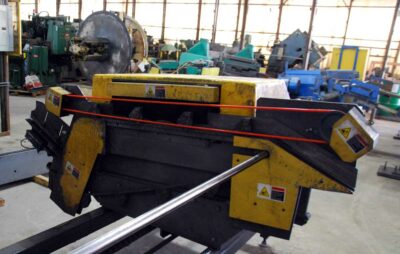

BURRMASTER #2 Double End Brush Machine:
– Model Number: BM2-BC
– Serial Number: 10693
– Tube Length: 6″ – 120″
– Tube O.D.: 1/2″ – 3-3/4″
– Max. Squares: 2-3/4″
– Profiles: 1/2″ x 1/2″ – 2-1/2″ x 2-1/2″
– Max. Output: 4,500 Pieces/Hour
– Brush Length: 24″
– Bruch O.D.:12″
– Motors: (2) 10 HP / 208-230 / 460 / 3 Ph / 60 Hz
CONDITION: Good As Taken From Service.
OVERALL DIMENSIONS: 1 Truckload
APPROXIMATE WEIGHT: 17,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
