UTUBE NUMBER: 3724
MANUFACTURER: BRADBURY
MODEL NUMBER: 130
SERIAL NUMBER: 35256
LINE SPECIFICATIONS:
Maximum Coil Weight: 20,000 Lbs.
Coil ID Range: 20-24″
Maximum Coil OD: 72″
Line Orientation: Left to Right
Line Speed: 150 FPM
COMPLETE LINE EQUIPPED WITH:
Entry Coil Car:
L-Type
Uncoiler:
Capacity: 20,000 Lb.
Maximum Coil Width: 48″
Maximum Coil O.D. 72″
Mandrel Expansion Range: 18-1/2″ – 24-1/2″
Cantilevered Mandrel
Hydraulic Loop Arm Control with Chain Drive Spindle
Hold Down Roll
Entry Pinch Rolls:
Roll Diameter: 5″
Straightener:
5-Roll
3″ Work Roll Diameter
Variable Frequency Drive
Independently Adjustable Lead-In Guide
Exit Cascade Rolls
Hydraulic Punching Unit:
Entry Feed Rolls
Nine Hydraulic C-Frame Presses and Dies
Hand wheel Width Adjustment Material Guide Fixtures
Hydraulic Shear
Stacker/Conveyor:
Capacity: 5,000 Lbs.
Maximum Stack Height over Pallet: 12″
Blank Length Capacity 20″ – 20′
Blower for Blank Flotation
Motorized Side Pans Positioning
Manual End Stop Positioning
Bradbury Destacking System:
Vacuum Cup Lifts
Minimum Blank Dimensions: 26″ x 174″
Maximum Blank Dimensions: 32″ x 195″
Maximum Weight: 5,000 Lbs.
12 Stand Bradbury Duplex Rollformer:
Model Number: 130
Serial Number: 35256
Maximum Blank Width: 37″
Horizontal Center Distance: 7″
Shaft Diameter 1-1/2″
Roll Space: 3″
Forward and Reverse Jogging
Anti-Friction Bearings
Bradbury U-Bender:
Two Head Construction
Single Point Action
Hydraulic Part Clamping
Dedicated Hydraulics
Vertical Wrapper Leg Support
Pneumatic Part Positioning
Panel Locators and Edge Guide

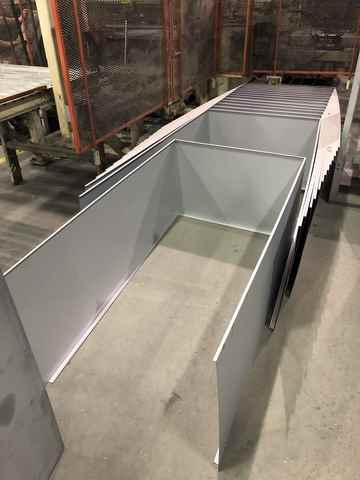

Wrapper:
– Back Width Capacity 30.75″ – 36.82″
– Leg Height Capacity 71.75″ – 79.25″
– Depth Capacity 23.5″ – 30.19″
Downlayer
Exit Conveyor
Rexroth PLC and Drives
Electrical: 460V/3pH/60Hz
Control: 115V/60Hz
LOCATION: Universal Warehouse, Perrysburg, Ohio
