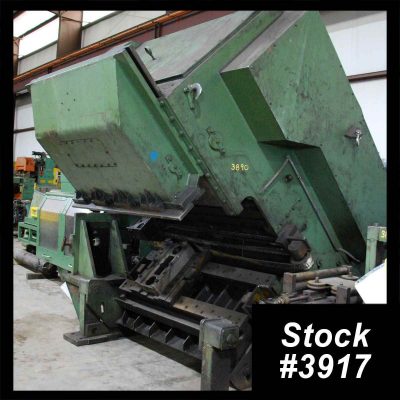

UTUBE NUMBER: 3917
MANUFACTURER: ALPHA INDUSTRIES
MODEL NUMBER: TC-16
SERIAL NUMBER: 3589-1-45
SPECIFICATIONS:
Maximum Tube Diameter: 5″ (127 mm)
Minimum Tube Diameter: 1″ (25.4 mm)
Maximum Wall Thickness: .250″ (6.35 mm)
Minimum Wall Thickness: .035″ (.889 mm)
Maximum Mill Speed: 200 FPM
Maximum C.P.M.: 20
Clutch: Air
Die Clamp: Hydraulic
Floor to Center Line of Tube: 36″
EQUIPPED WITH:
Motor: 30 HP, 440/220/3/60
Tooling: Misc. Jaws, and Die Set with Slides
APPROXIMATE WEIGHT: 22,000 Lbs.
OVERALL DIMENSIONS: 9′ 2″ L x 10′ W x 10′ H
LOCATION: Universal Warehouse, Perrysburg, Ohio
CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS USED ALPHA TC-16-200 TUBE CUT OFF BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ THE TERMS AND CONDITIONS OF SALE THAT APPLY TO THIS USED ALPHA TC-16-200 TUBE CUT OFF. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
