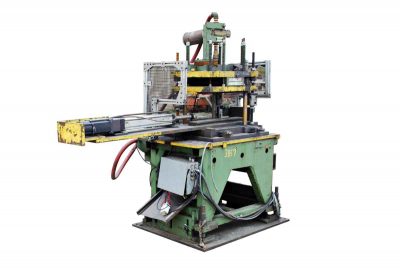

UTUBE NUMBER: 3857
MANUFACTURER: AIRAM
MODEL NUMBER:
SERIAL NUMBER:
SPECIFICATIONS:
Capacity: 12 Ton (Impact), 6 Ton (Holding – EST.)
Bed Size: 26″ x 19″
Stroke: 1-1/2″
Distance Between Posts: 14″ (Left – Right), 13″ (Front – Back)
Open Height: 10-1/2″
Bed Thickness: 2-1/4″
Post Diameter: 1-1/2″
EQUIPPED WITH:
Die Rails: 27-1/2″ L x 4-3/8″ W (Curving Die Rail)
Adjustable Base
Servo Accelerator
Air Tank
OVERALL DIMENSIONS: 7′ L x 3′ W x 6′ High
APPROXIMATE WEIGHT: 3,500 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
