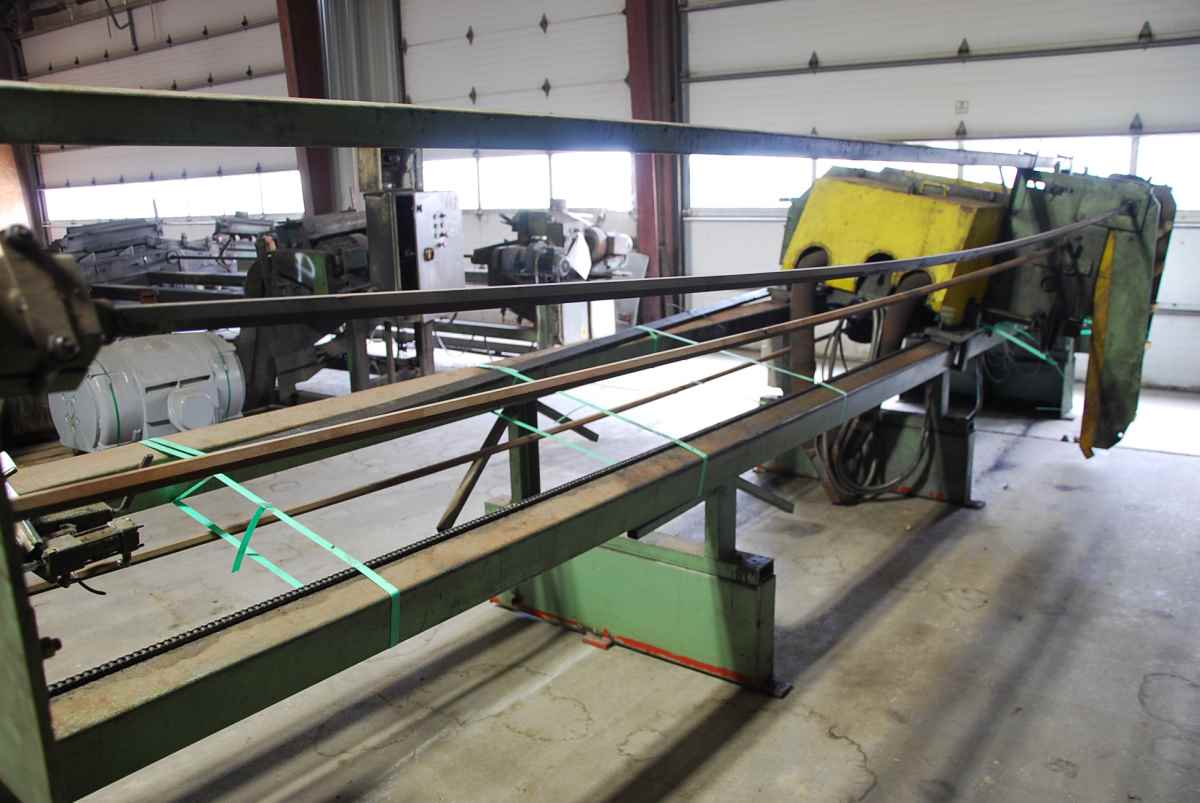

3″ OD x 144″ Max. ADIGE #HP100 Brush Deburring Machine

Stock #: 3015

Year End Sale!

10% OFF EVERYTHING!

Limited Time Offer! Applies only to machinery paid in full no later than 12/31/2019. Offer valid for original list price. Not valid with any other specials, discounts, custom lines or machinery projects currently in negotiations.


SKU: 3015 Categories: ,

UTUBE NUMBER: 3015
MANUFACTURER: ADIGE, Italy
MODEL NUMBER: HP100
SERIAL NUMBER: 76058002
YEAR: 1987

SPECIFICATIONS:
Maximum Tube Length: 144" (3,657 mm)
Minimum Tube Length: 6" (152 mm)
Maximum Tube Diameter: 3" (76.2 mm)
Minimum Tube Diameter: 3/8" (9.52 mm)
Maximum Bar Diameter: 2.4" (60.9 mm)
Minimum Bar Diameter: 3/8" (9.52 mm)
Profile Section: 3/8" x 3/8" to 2" x 2" (9.52 mm x 9.52 mm to 50.8 mm x 50.8 mm)
Output: 3,500 Maximum Pieces per Hour
Brush Length: 18" (457 mm)
Brush O.D.: 10" or 12" (254 mm or 304 mm)
Motors: (2) 16 Kw, 380 / 440 / 3 / 50

EQUIPPED WITH:
Electrical Panel
Push Buttons

OVERALL DIMENSIONS: 22′ x 6′ x 5’6"
APPROXIMATE WEIGHT: 2,600 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio

CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS USED ADIGE DEBURRING MACHINE BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ OUR TERMS AND CONDITIONS OF SALE. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
