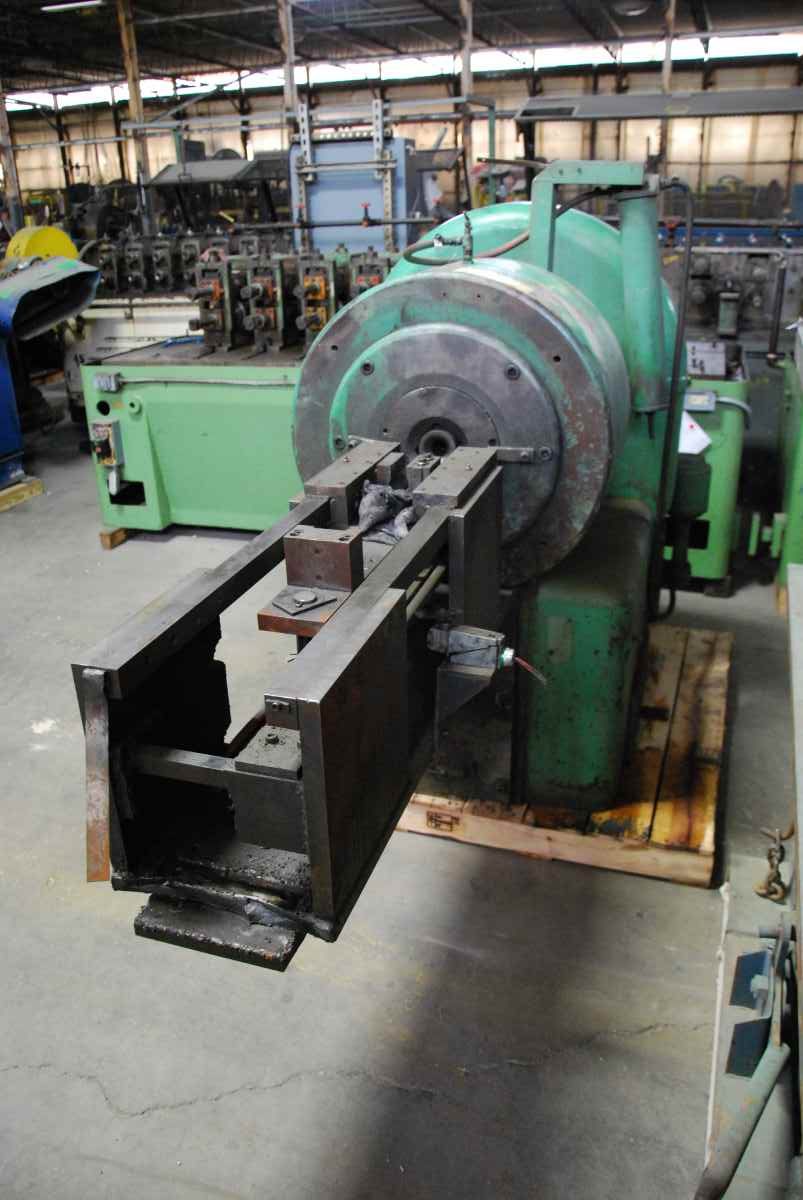

UTUBE NUMBER: 3804
MANUFACTURER: ABBEY ETNA
MODEL NUMBER: 1515 RB
SERIAL NUMBER: 1805
STANDARD CATALOG SPECIFICATIONS:
Maximum Tube Capacity: 1-1/2″
Maximum Solid Capacity: 3/4″

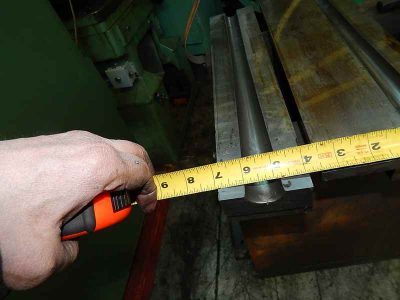

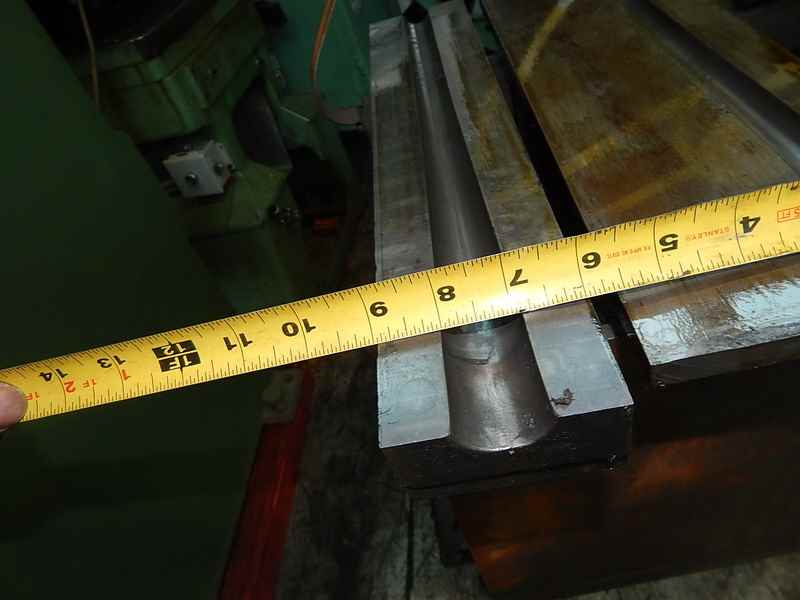

Die Length: 15″
Width of Die: 3″
Thickness of Die: 1-5/8″
Number of Rolls: 16
Diameter of Rolls: 1-31/32″
Hole Through Spindle: 1-3/4″
Center Height: 36″
Swager RPM: 200
Hammer Blows Per Minute: 3,200
EQUIPPED WITH:
Dies, Hammers & Rolls
Feeder (missing cylinder)
Lube Pump
CONDITION: Good
OVERALL DIMENSIONS: 8′ x 3′ x 5′ H
APPROXIMATE WEIGHT: 5,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS ABBEY ETNA 1515 FB TUBE SWAGE MACHINE BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ THE TERMS AND CONDITIONS OF SALE THAT APPLY TO THIS ABBEY ETNA 1515 FB TUBE SWAGE MACHINE. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
