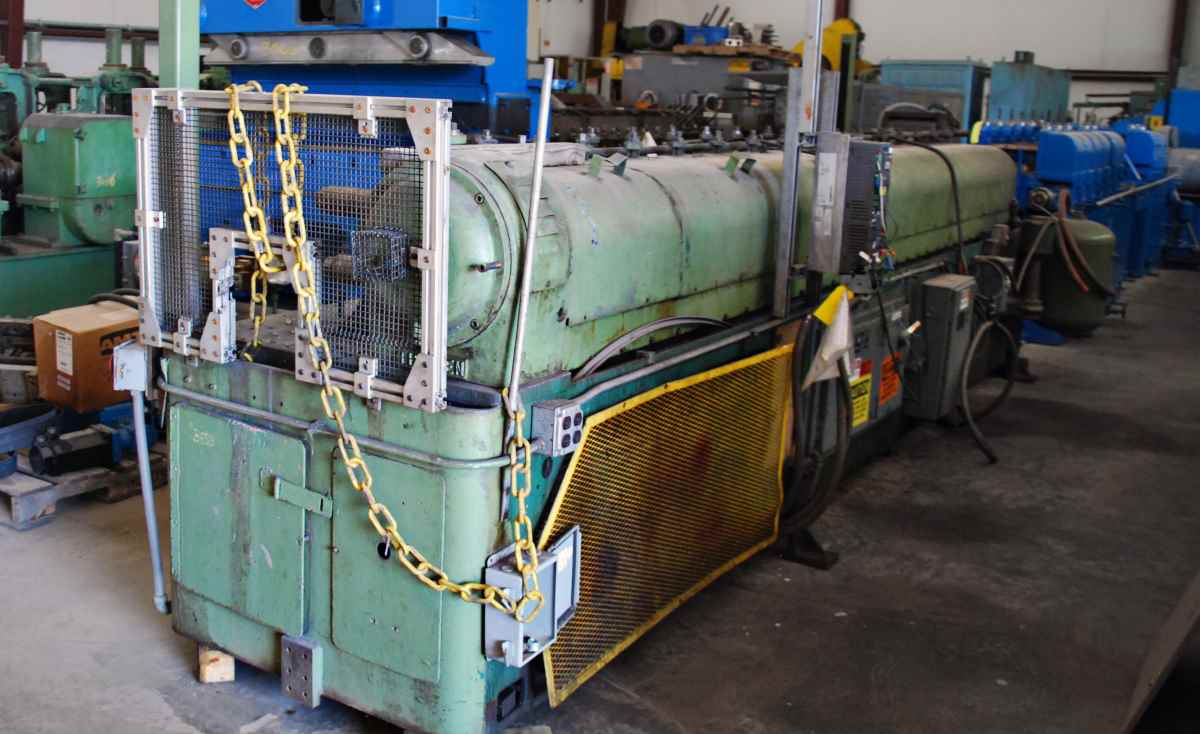

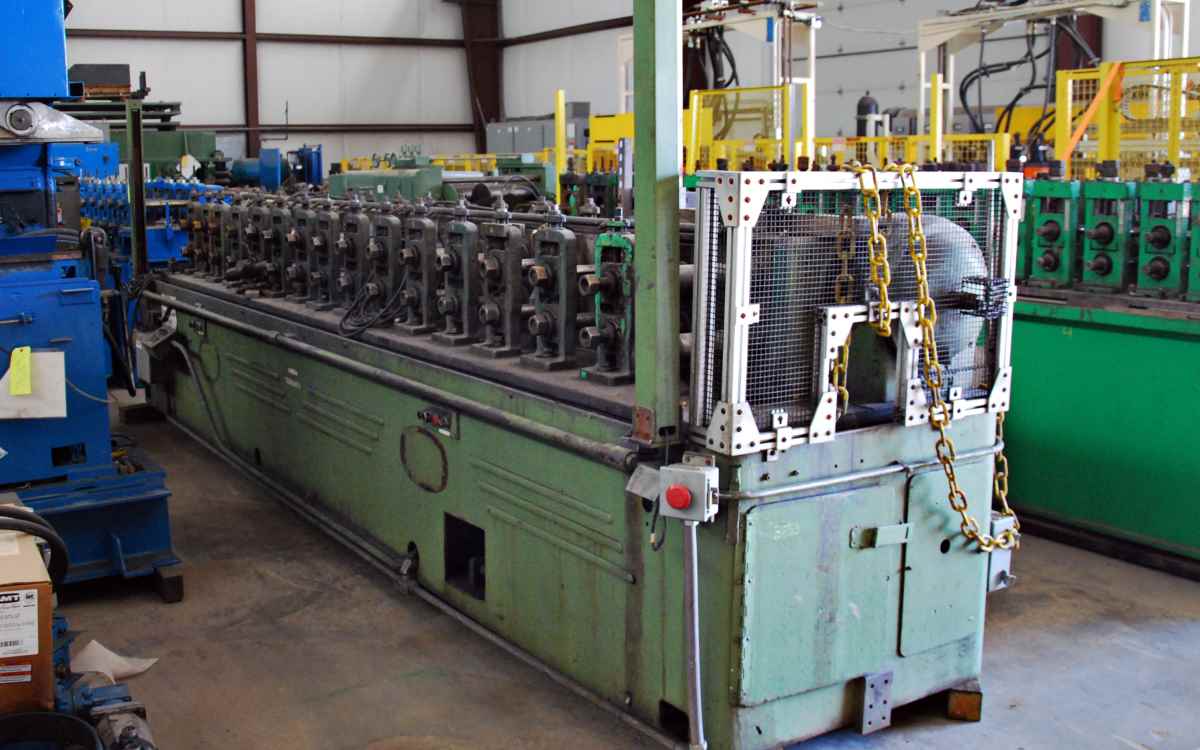

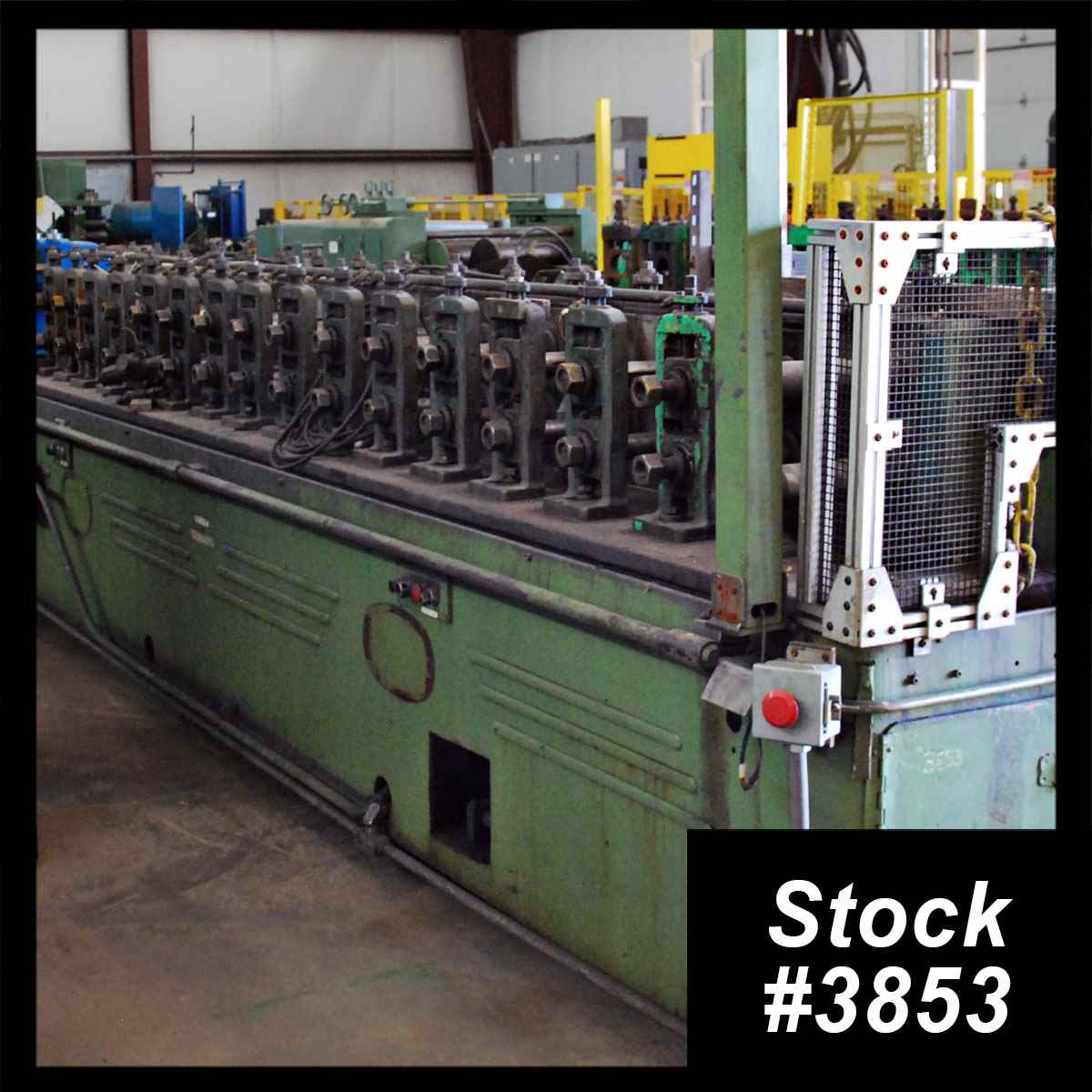

UTUBE NUMBER: 3853
MANUFACTURER: TISHKEN
MODEL NUMBER: 16MW2
SERIAL NUMBER: 7629-557
SPECIFICATIONS:
Number of Stands: 16
Line Direction: Right to Left
Spindle Diameter: 2″
Roll Space: 8″
Horizontal Center: 12″
Adjustment: 5-1/2″ – 7″
Base Top to Center Lower Spindles: 5″
Spindle Key Size: 3/8″ Sq.
Maximum Height of Part: 2-3/4″
Maximum Thickness: .109″
EQUIPPED WITH:
Coolant Pump
Motor: 440/3/60
Pushbuttons
NOTE: Missing 1 outboard stand.
OVERALL DIMENSIONS: 14′ L x 4′ W x 4′ High
APPROXIMATE WEIGHT: 12,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS TISHKEN 16MW2 ROLLFORMER BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ THE TERMS AND CONDITIONS OF SALE THAT APPLY TO THIS TISHKEN 16MW2 ROLLFORMER. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
