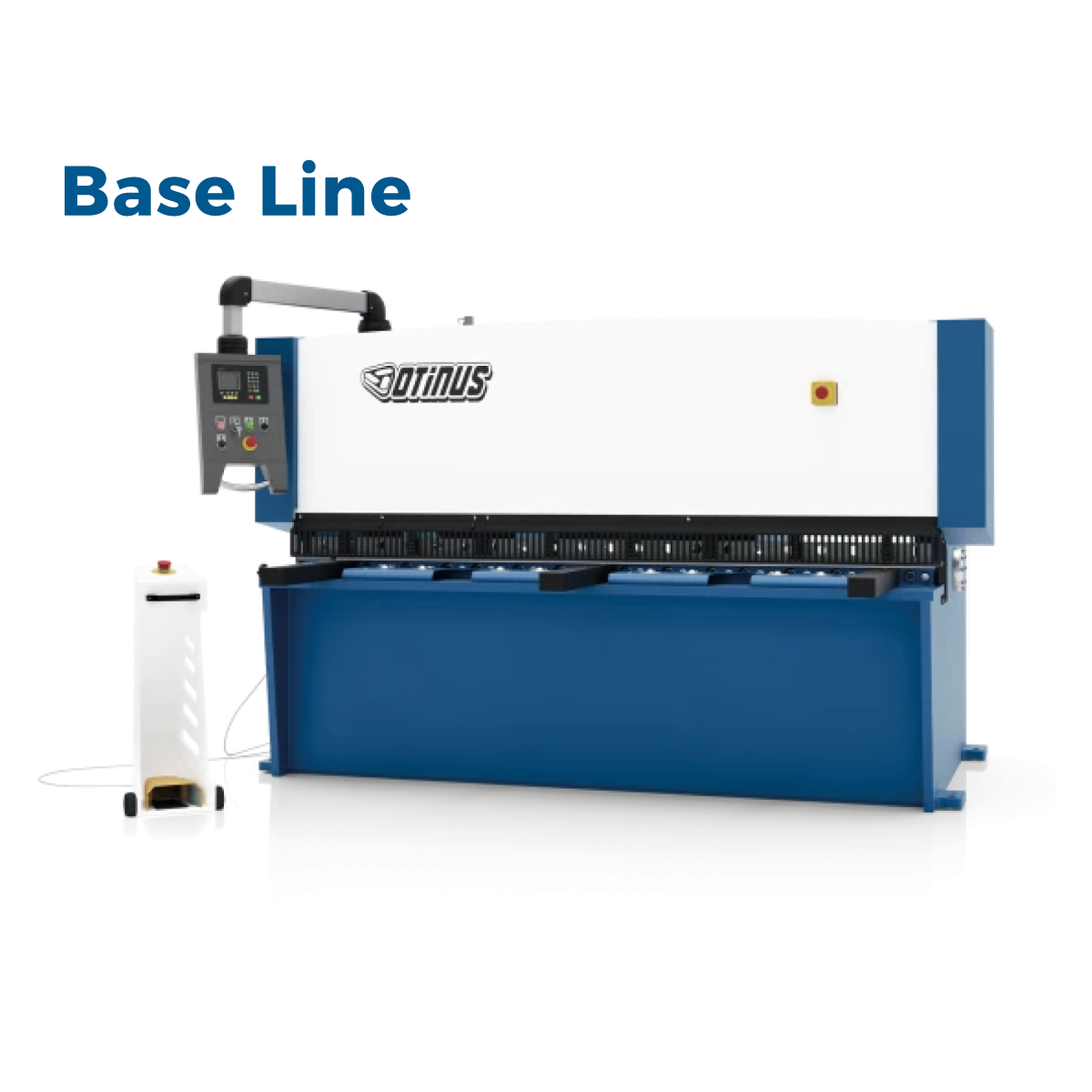

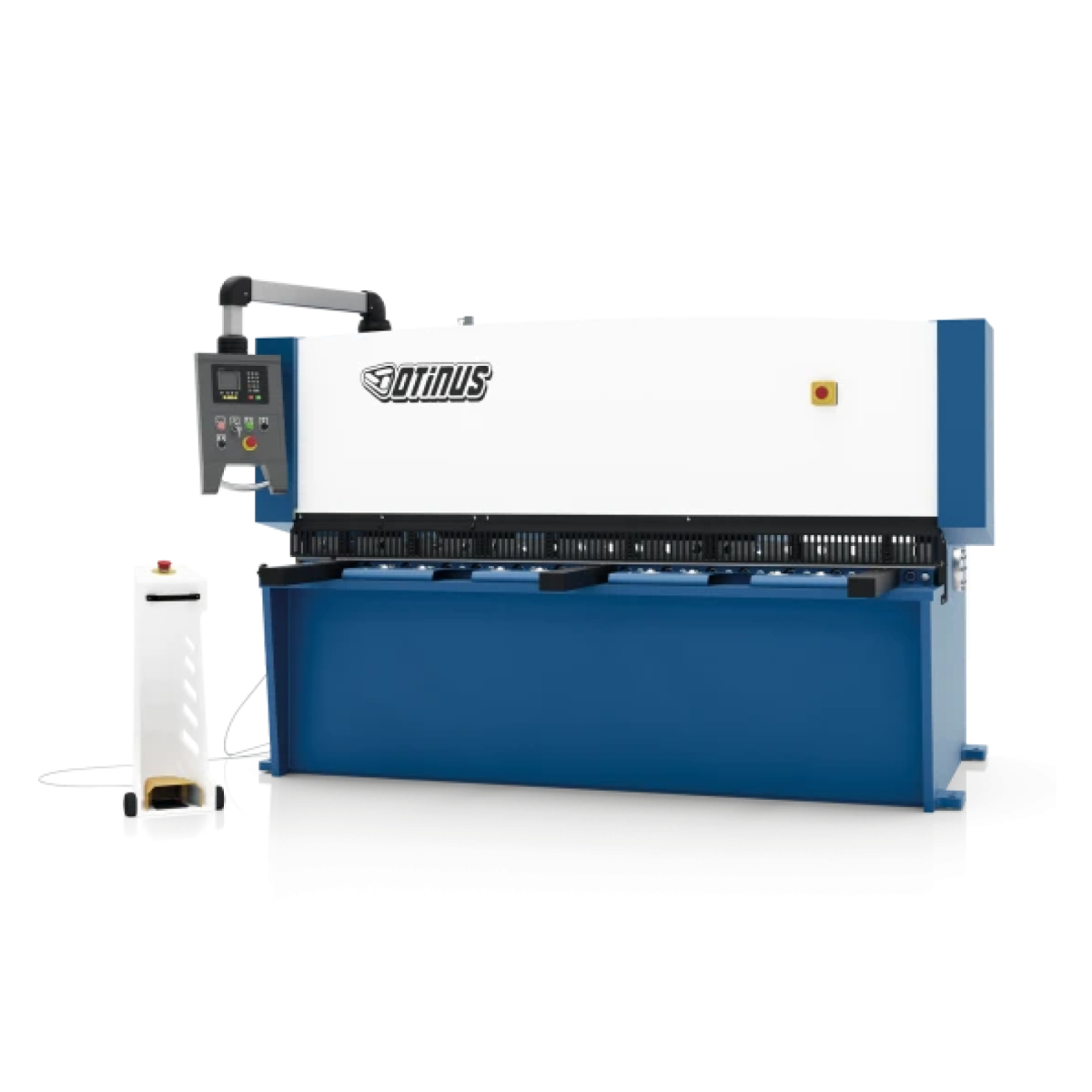

Base Line:
| Model Number | Max Cutting Thickness | Max Cutting Length | Shear Angle | Strokes Per Min | Nominal Motor Power | Machine Dimensions | Machine Weight |
|---|---|---|---|---|---|---|---|
| SMO-3212-E21 | 1/2 in (12 mm) | 122 in | 2° | 9 | 15 kW | 14 x 7 x 7 ft | 20948 lb |
| SMO-4012-E21 | 1/2 in (12 mm) | 158 in | 2° | 8 | 18.5 kW | 16 x 7 x 7 ft | 27562 lb |
| SMO-2506-E21 | 1/4 in (6 mm) | 98 in | 0.5° – 2.5° | 18 | 7.5 kW | 11 x 6 x 7 ft | 8379 lb |
| SMO-3206-E21 | 1/4 in (6 mm) | 122 in | 1.5° | 14 | 7.5 kW | 13 x 6 x 6 ft | 11466 lb |
| SMO-4006-E21 | 1/4 in (6 mm) | 158 in | 1.5° | 14 | 7.5 kW | 16 x 6 x 7 ft | 15876 lb |
| SMO-2004-E21 | 1/6 in (4 mm) | 63 in | 0.5° – 1.5° | 6 – 20 | 4 kW | 9 x 5 x 6 ft | 5512 lb |
| SMO-2504-E21 | 1/6 in (4 mm) | 98 in | 1.5° | 6 – 12 | 5.5 kW | 11 x 5 x 6 ft | 4056 lb |
| SMO-3204-E21 | 1/6 in (4 mm) | 122 in | 1.5° | 8 – 12 | 5.5 kW | 13 x 6 x 6 ft | 9261 lb |
| SMO-4004-E21 | 1/6 in (4 mm) | 158 in | 1.5° | 12 | 5.5 kW | 16 x 7 x 6 ft | 14322 lb |
| SMO-2510-E21 | 3/8 in (10 mm) | 98 in | 1.5° | 10 | 11 kW | 11 x 6 x 7 ft | 13892 lb |
| SMO-3210-E21 | 3/8 in (10 mm) | 122 in | 1.5° | 10 – 12 | 15 kW | 14 x 6 x 7 ft | 18522 lb |
| SMO-4010-E21 | 3/8 in (10 mm) | 158 in | 1.5° | 8 | 15 kW | 16 x 6 x 7 ft | 22491 lb |
| SMO-2508-E21 | 1/3 in (8 mm) | 98 in | 1.5° | 14 | 7.5 kW | 11 x 6 x 7 ft | 10584 lb |
| SMO-3208-E21 | 1/3 in (8 mm) | 122 in | 1.5° | 10 – 15 | 11 kW | 15 x 7 x 7 ft | 14112 lb |
| SMO-4008-E21 | 1/3 in (8 mm) | 158 in | 1.5° | 8 | 11 kW | 16 x 6 x 7 ft | 16096 lb |
E21S Controller (Mounted on a swivel arm on the left-hand side of the machine)
• Controllable backgauge
• Ability to store up to 40 programs, with each program accommodating up to 25 individual steps.
• Retract function
• Saving parameters with a single click
• Parameter memory backup in case of power cut
Backgauge Retract Distance: 23 in
Blades for cutting mild steel
Double-sided blades for less frequent sharpening
Hydraulic driven hold-downs for sheet clamping along the entire cutting length
Supports and ball transfer units to facilitate work
Laser cutting line indicator
Guards ensuring operator safety
Manual clearance adjustment – ability to adjust the process for different material thicknesses
Machine workspace lighting
Rear ramp with ball transfers for easy part drop to the floor
Blades capable of cutting up to 1 inch
Working table lengths: up to 20 feet
Blades for cutting stainless steel
PCS – Pressure Control System
OCS – Oil Cooling System
Rexroth hydraulic valve
Schneider electrical components
Optional Equipment:
Stainless steel blade

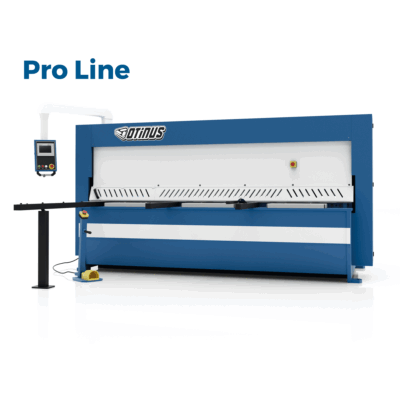

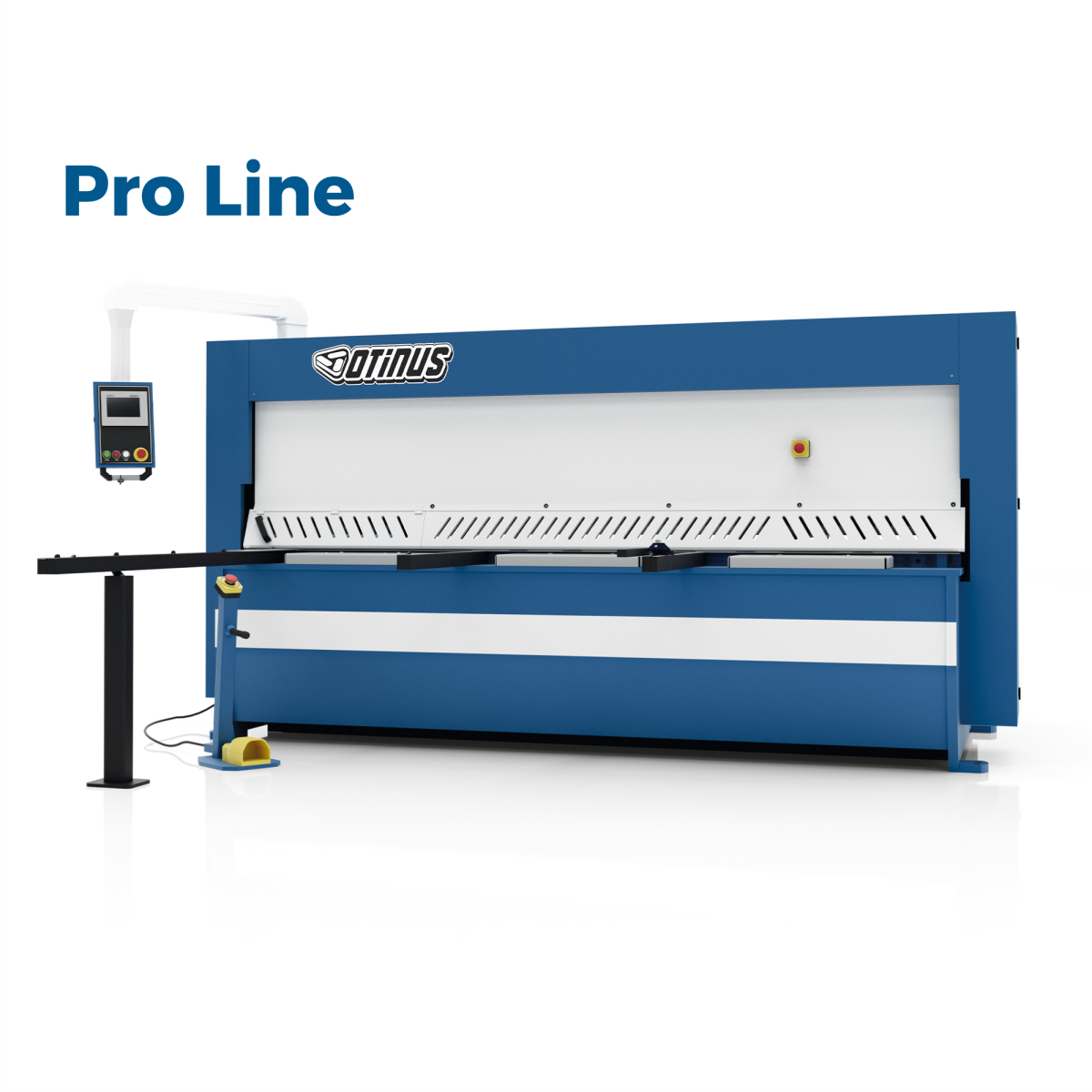

Pro Line:
| Model Number | Cutting Thickness | Max Cutting Length | Rake Angle | Strokes Per Min | Number of Holddowns | Motor Power | Oil Tank Capcity | Machine Weight |
|---|---|---|---|---|---|---|---|---|
| SMO-2106-PRO | 1/4 in (6 mm) ≤450 N/mm2 | 83 in | 1.6° | 26 | 13 pcs | 11 kW | 42 gal | 8820 lb |
| 1/6 in (4 mm) ≤750 N/mm2 | ||||||||
| SMO-2606-PRO | 1/4 in (6 mm) ≤450 N/mm2 | 102 in | 1.6° | 24 | 15 pcs | 11 kW | 42 gal | 10364 lb |
| 1/6 in (4 mm) ≤750 N/mm2 | ||||||||
| SMO-3106-PRO | 1/4 in (6 mm) ≤450 N/mm2 | 122 in | 1.6° | 30 | 17 pcs | 11 kW | 42 gal | 12128 lb |
| 1/6 in (4 mm) ≤750 N/mm2 | ||||||||
| SMO-3108-PRO | 5/16 in (8 mm) ≤450 N/mm2 | 122 in | 1.8° | 13 | 17 pcs | 15 kW | 42 gal | 14222 lb |
| 13/64 in (5 mm) ≤750 N/mm2 |
Controller CybTouch 8w (Mounted on a swivel arm on the left-hand side of the machine)
• Automatic calculations of the shear functions upon material specifications.
• Automatic blade gap.
• Automatic back gauge correction.
• Automatic back gauge foldaway.
• 2/3- position sheet support.
• Return to sender function (RTS).
• Front or back gauge management.
• Parking position (foldaway function).
• Hold-downs pressure management.
• System pressure management.
• Large cutting sequences and programs can be memorized.vivid colors.
• Simple pages, large keys, clear display with all the information the operator needs.
• Intuitive and user-friendly interface.
• Complete programming of parts in seconds.
Backgauge Retract Distance: 30 in
Backgauge Motor: 0.55 kW
Reinforced, solid construction
Extended front supports with protractors
Supports and ball transfer units at the front table and rear ramp
Laser cutting line indicator
Additional lifts on the rear ramp
Guards and photocells ensuring operator safety
Automatic clearance adjustment – ability to adapt to different material thicknesses
Machine workspace lighting
Blades: up to 1 inch thick
Working table lengths: up to 20 feet
Blades for cutting stainless steel
