UTUBE NUMBER: 3866
MANUFACTURER: PAXSON
YEAR: 1981
SPECIFICATIONS:
Material: HRS, CRS, HRPO, Galvanized / Maximum Strength: 50,000 PSI Shear, 40,000 PSI Yield
Thickness: .015″ – .250″
Coil Weight Capacity: 40,000 lbs.
Coil Width (Maximum): 60″ Trimmed, 62″ Untrimmed
Coil I.D.: Entry: 20″ – 24″ / Exit 20″
Coil O.D.: Entry: 42″ – 72″ / Exit: 42″ – 72″
Line Speed: Two-Speed, 130 and 390 FPM @ bare drum
Line Direction: Right to Left
Mode of Operation: Pull-Thru & Drive Assist
Slitter Cut Capacity:
| Distance Between Collars | ||||||||||||
| 32″ | 38″ | 44″ | 50″ | 56″ | 62″ | |||||||
| Gauge | 130 FPM | 390 FPM | 130 FPM | 390 FPM | 130 FPM | 390 FPM | 130 FPM | 390 FPM | 130 FPM | 390 FPM | 130 FPM | 390 FPM |
| .250″ | 17 | – | 17 | – | 17 | – | 17 | – | 14 | – | 11 | – |
| .218″ | 22 | – | 22 | – | 22 | – | 22 | – | 16 | – | 12 | – |
| .187″ | 30 | 3 | 30 | 3 | 30 | 3 | 25 | 3 | 19 | 3 | 15 | 3 |
| .156″ | 30 | 6 | 30 | 6 | 30 | 6 | 30 | 6 | 23 | 6 | 17 | 6 |
| .125″ | 30 | 11 | 30 | 11 | 30 | 11 | 30 | 11 | 29 | 11 | 22 | 11 |
| .078″ | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| .062″ | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| .050 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
EQUIPPED WITH:
Entry Coil Car:
• S/N 11700-1
• L-Type
• Self-Contained Hydraulic Power Unit
• Hydraulic Lift & Travel

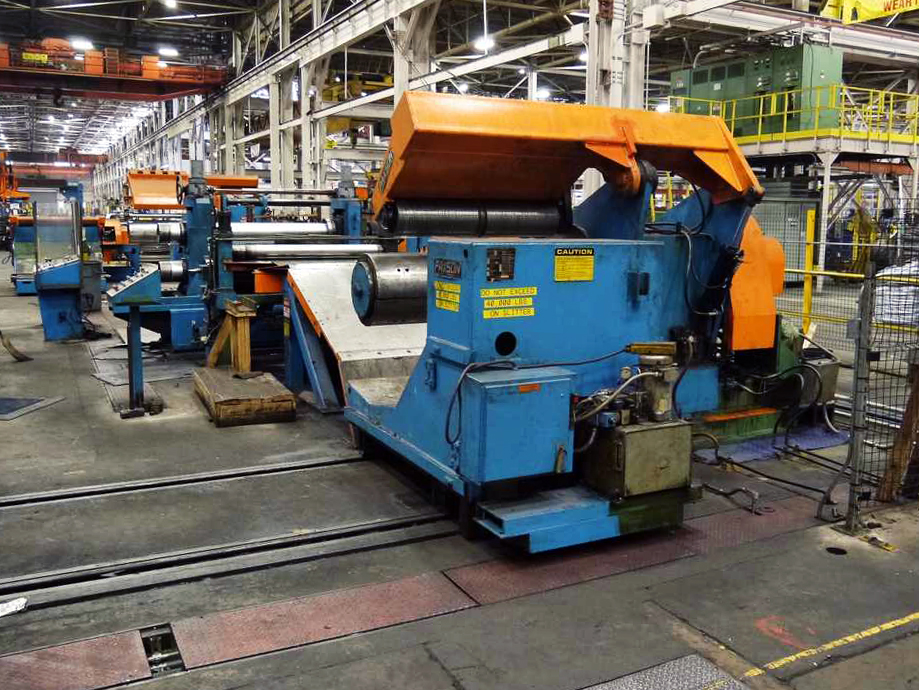

Uncoiler:
• S/N 11700-3-4-82
• Hydraulic Expansion: 20″ – 24″
• 4-Segment Pumpkin Tooth Mandrel
• Powered Overarm Hold-Down
• Slide Base
• Hydraulic Motor Feed-up
• Water Cooled Brake
Hydraulic Peeler Table:
• S/N 11700-2-3-82
Slitter Entry Unit:
• S/N 11700-4-3-82
• Driven Pinch Rolls
• Independent Manual Adj. Roller Side Guides
• Roller Crop Shear
Slitter Head:
• Removable Type, (1) Head
• Over Arbor Outboard – Can Travel up to 36″ Wide
• 150 HP DC Motor, 1750/2000 RPM, 500 V
• Reducer w/60.7:1 ratio
• Pinion Stand
• Arbors: 10″ Diameter
Hydraulic Lift Table for Threading
Recoiler:
• S/N 11700-7
• Face Drum: 20″ Dia. x 65″
• Hydraulic Grip & Expand
• Overarm Separator
• 100 HP DC Motor 650/1950 RPM, 500 V
• Integral Reducer w/24:1 ratio
• 2 Speed Drive-All Transmission w/1:1 and 3:1 ratios
Exit Coil Car:
• L-Type
• Hold-down Arm
• Keeper Arms
• Strapping Slots in Base
• Self-Contained Hydraulic Power Unit
• Hydraulic Lift and Travel
2-Arm Turnstile:
• S/N 11702-50
• Power Rotation
(2) Heavy Duty Scrap Winders:
• S/N 11700-9-3-82
• Opposed Cones
• Level Wind
• Auto Dump
• Hydraulic Motor Drive
Slitter Tooling:
• Large amount of Knives, Spacers and Rubbers

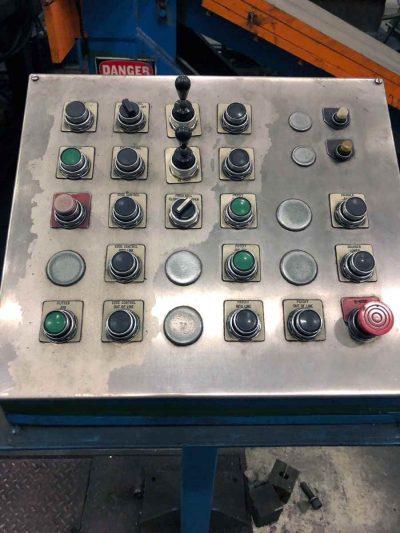

Operators Panels
Hydraulic Power Units
The line is installed and under power, can be viewed in-person by appointment
