UTUBE NUMBER: 1558B

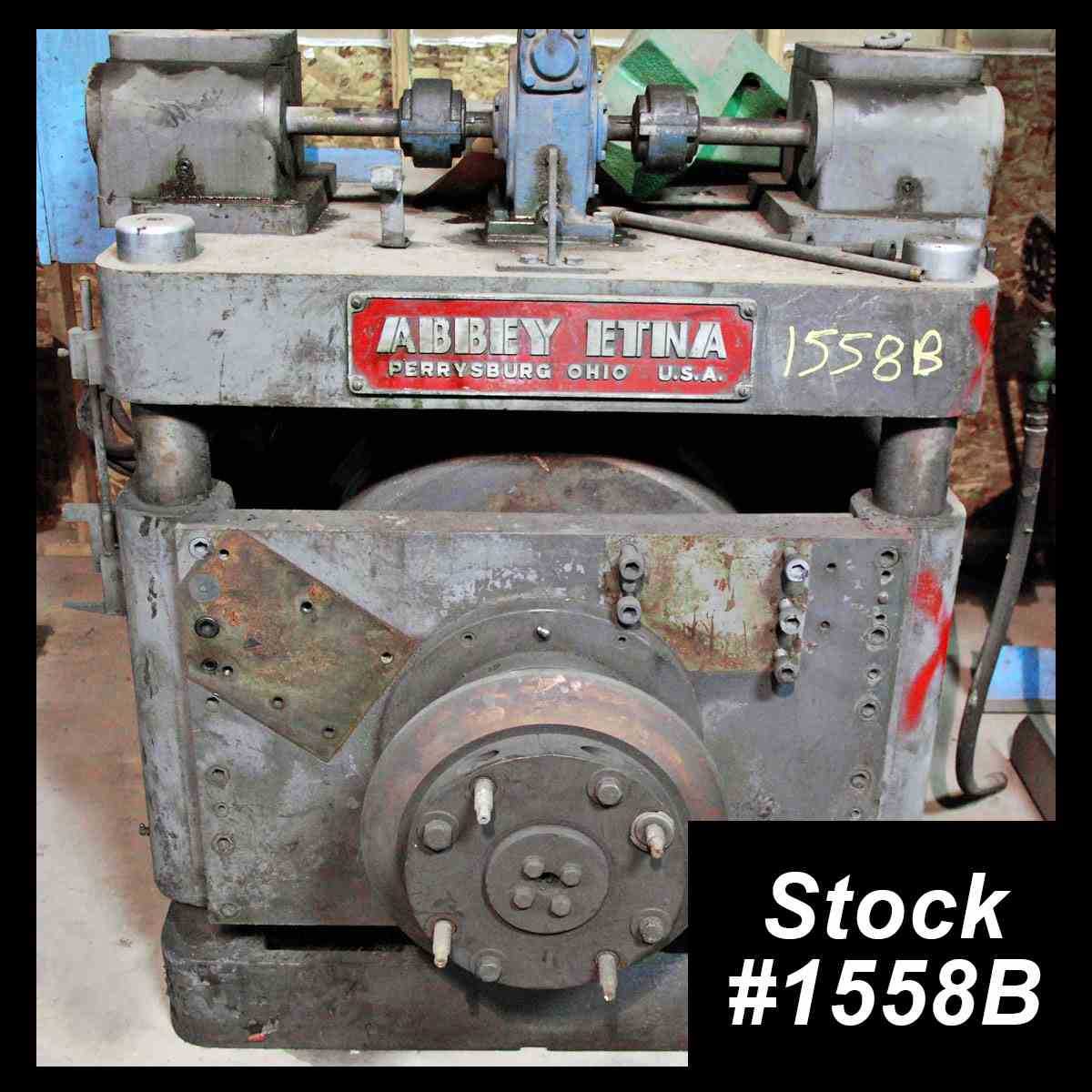

MANUFACTURER: ABBEY ETNA
SPECIFICATIONS:
75 KVA ERW Rotary Welder, Low Frequency, 360 Cycle
Power Up & Down
Motorized Rotation
EQUIPPED WITH:
(1) Oil Cooler Unit w/Heat Exchanger
(1) Motor Generator Set
(1) Synchronous Motor, EM
S/N: 162/32312
Type: BRKT
HP: 250
Volts: 550
Phase: 3
Amps: 264
Frame: 2300
RPM: 1200
Cycles: 60
D.C. Excitation
(1) Synchronous Generator, 360 Cycle
S/N: 162132312
Type: BRKT
KVA: 200
Volts: 600
Amps: 333
Phase: 1
Frame: 4200
(1) Automatic Starter for Synchronous Motor Frequency – Responsive
BUL: 5430
Type: SF
H.P: 250
Volts: 550
Amps: 264
Phase: 3
Cycles: 60
Field Volts: 125
Control Volts: 110
Field Amps: 26.5
OVERALL DIMENSIONS: 6′ x 4′ x 6′
APPROXIMATE WEIGHT: 5,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
