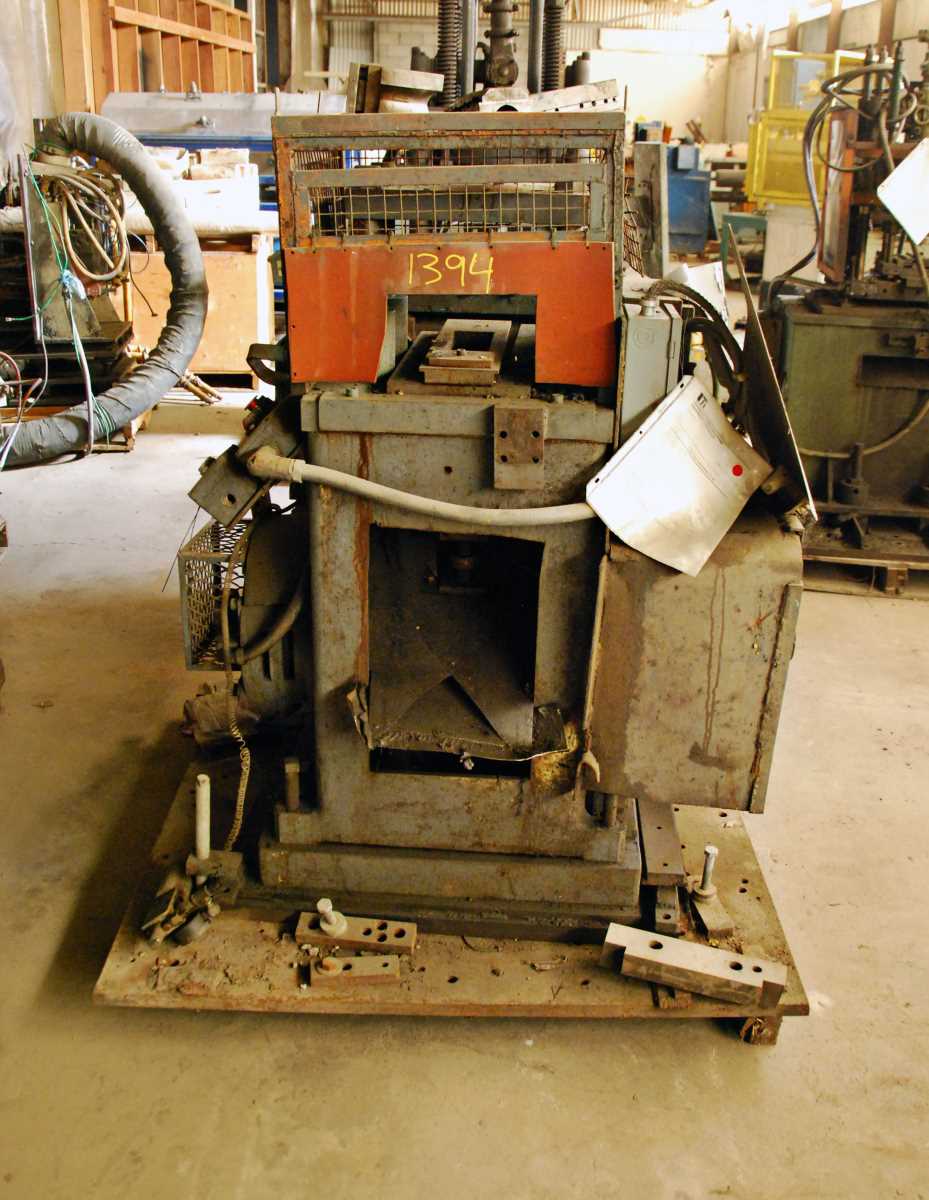

UTUBE NUMBER: 1394
MANUFACTURER: DAHLSTROM
MODEL NUMBER: 8TP
SERIAL NUMBER: P-502
SPECIFICATIONS:
Capacity: 8 Tons
Die Space: 3″ – 7″
Stroke: 2-1/2″
Flywheel RPM: 300
Slide Adjustment: 2″
Top Die Rail: 3-3/8″ x 14″
Bottom Die Rail: 4-15/16″ x 20″
Post Diameter: 1-3/4″
Distance Between Posts: 11″ (Left – Right), 5″ (Front – Back)
EQUIPPED WITH:
WICHITA Clutch
5 HP Motor, 230/460/3/60
Push Buttons
OVERALL DIMENSIONS: 4′ x 4′ x 5′
APPROXIMATE WEIGHT: 2,800 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS USED 8 TON CUT-OFF PRESS BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ OUR TERMS AND CONDITIONS OF SALE.
