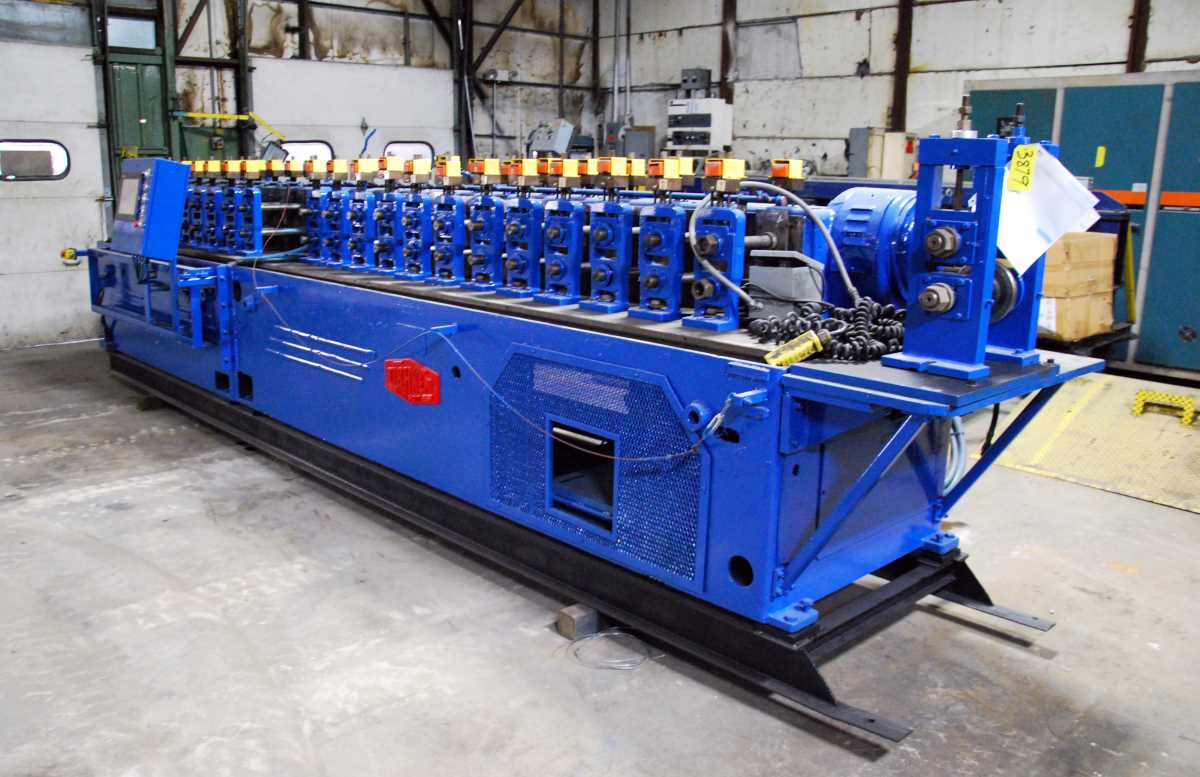

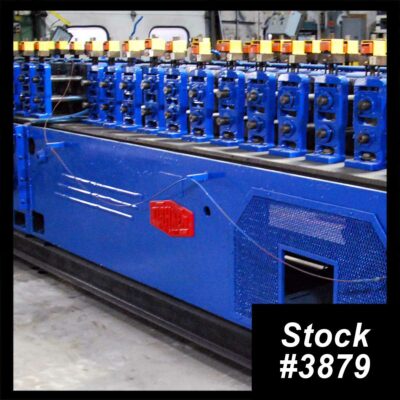

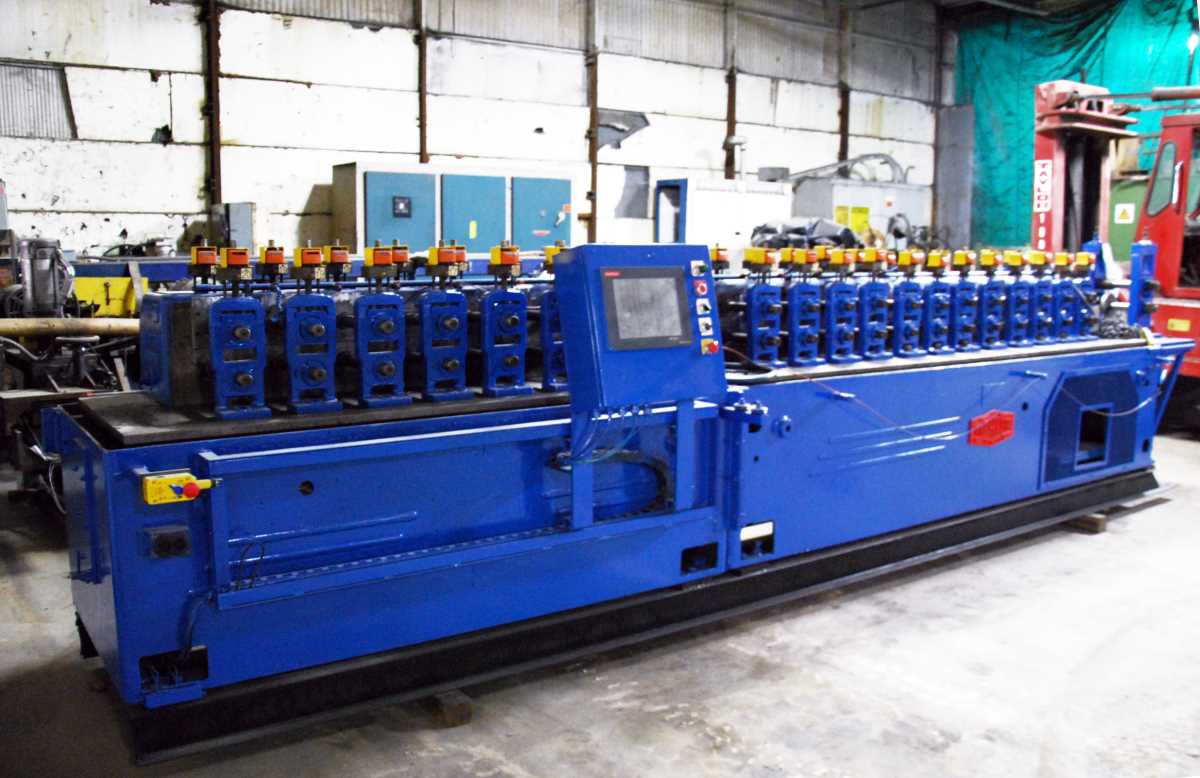

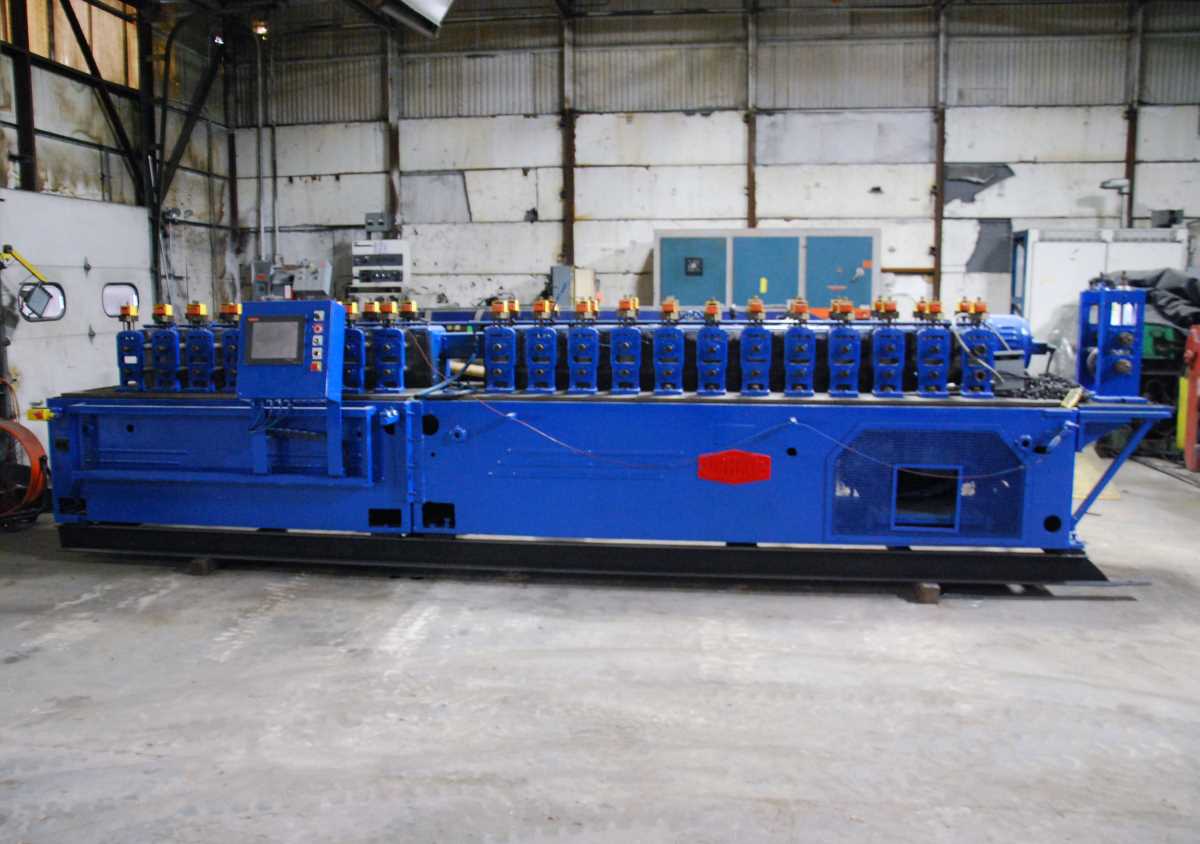

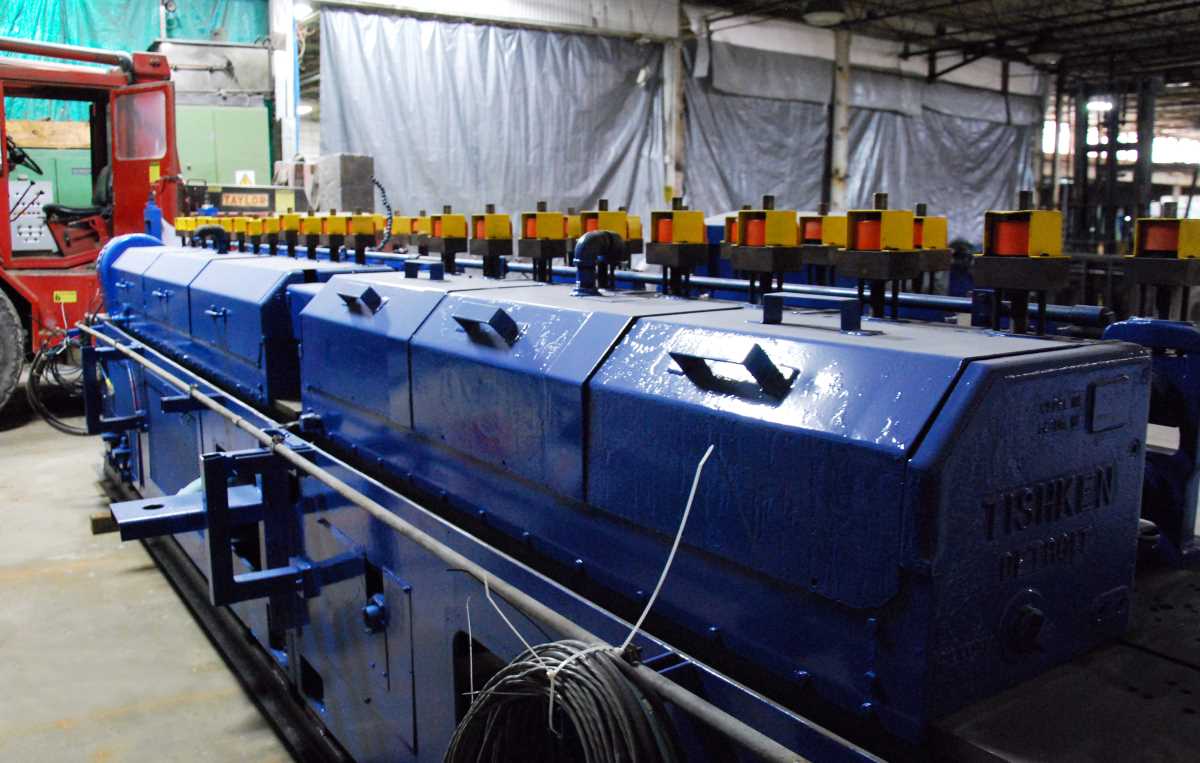

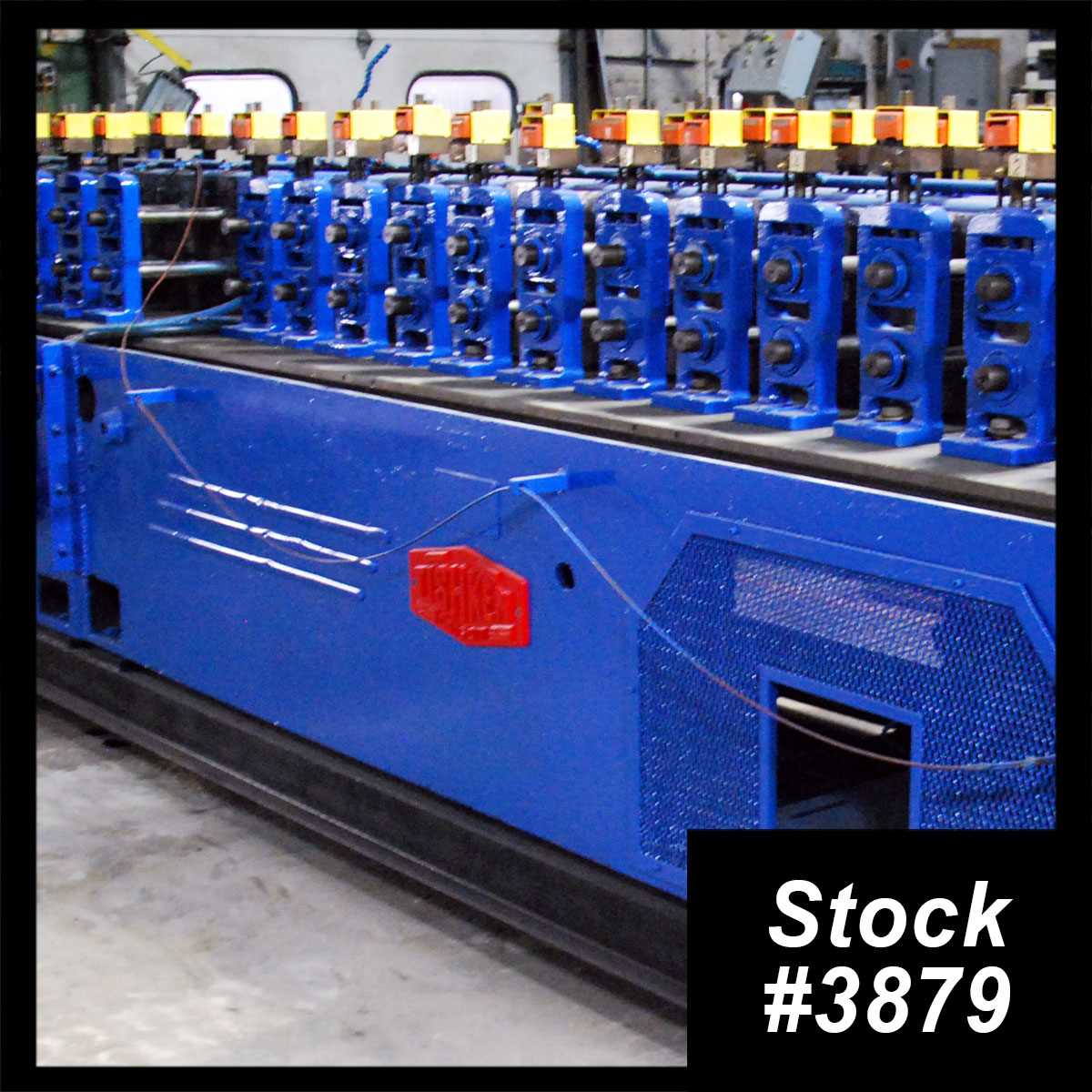

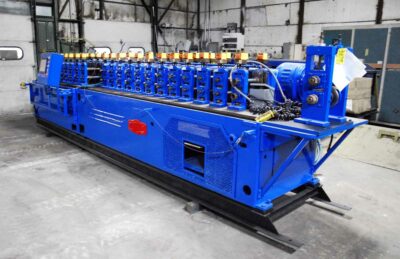

UTUBE NUMBER: 3879
MANUFACTURER: TISHKEN
MODEL NUMBER: 20 HMW 1-1/2
SERIAL NUMBER: 15212A-11-73
SPECIFICATIONS:
Line Direction: Right to Left
Number of Stands: 20

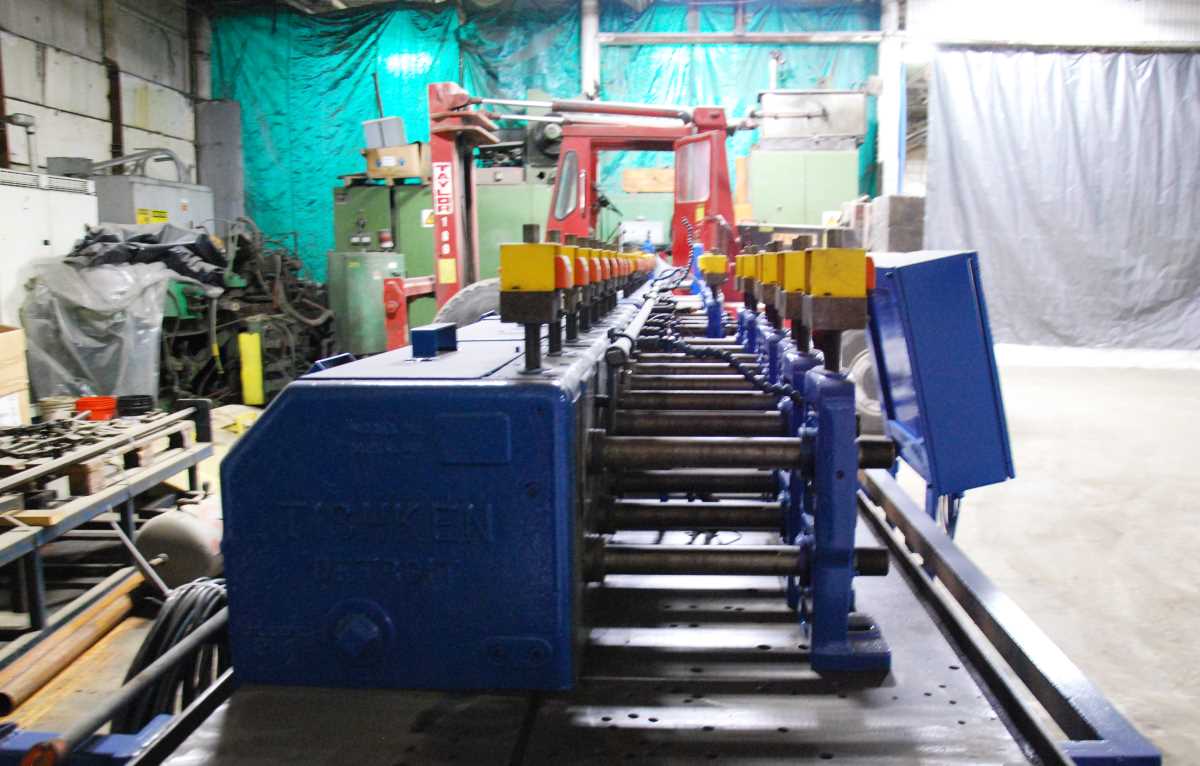

Spindle Diameter: 1-1/2″
Roll Space: 8″
Horizontal Center: 9″
Vertical Adjustment: 4-1/2″ – 5-1/2″
Base to Center Line of Lower Spindle: 4-1/2″
EQUIPPED WITH:
Motor
Start/Stop, Run/Jog Buttons
Electric Panel
CONDITION: Good as Taken from Service
OVERALL DIMENSIONS: 19′ x 4′ x 4′
APPROXIMATE WEIGHT: 14,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS 20 STAND ROLLFORMER BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ THE TERMS AND CONDITIONS OF SALE THAT APPLY TO THIS 20 STAND ROLLFORMER. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
