1-1/2″ (38.1 mm) x .134″ (3.40 mm) ARDCOR TIG Mill

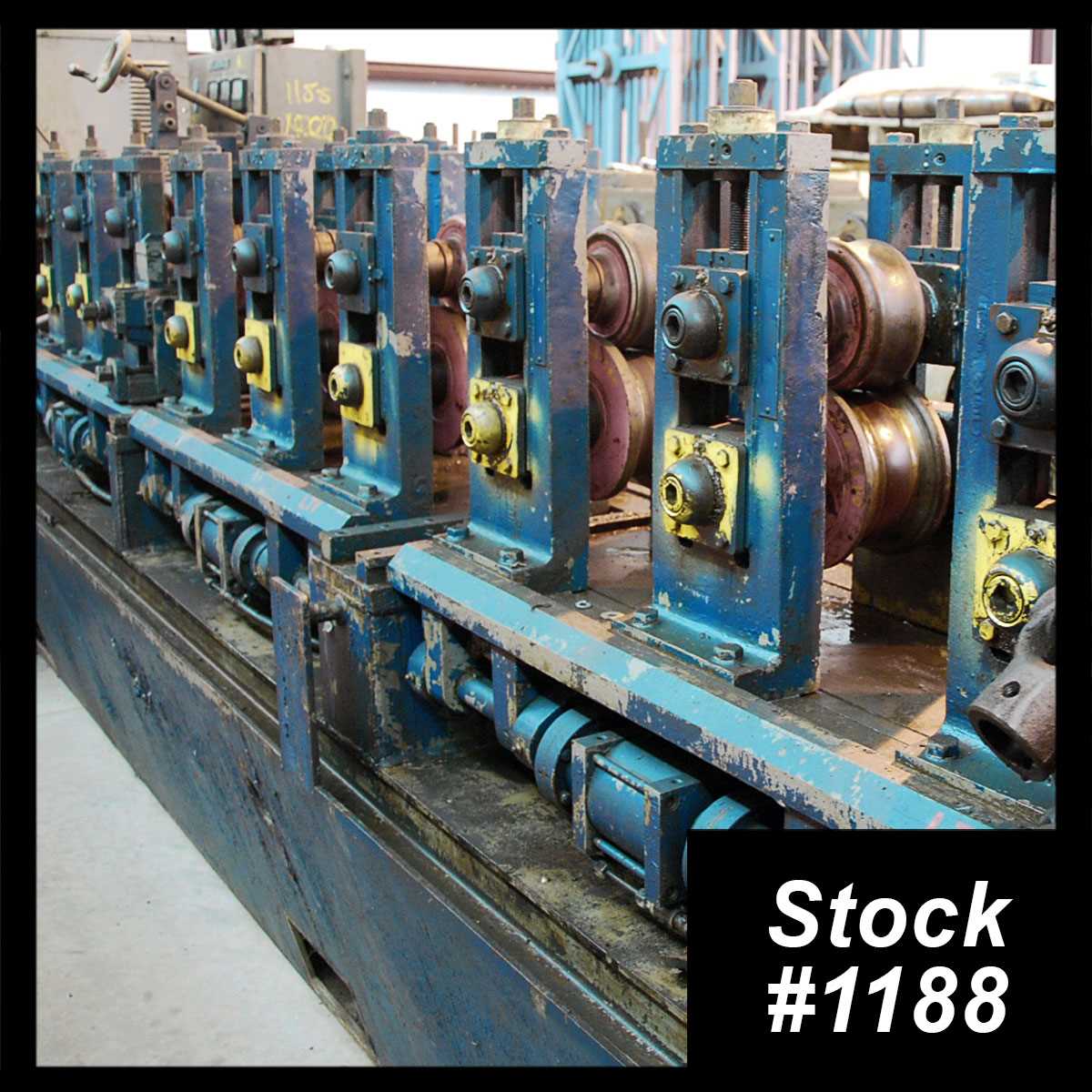

Stock #: 1188

UTUBE NUMBER: 1188
MANUFACTURER: ARDCOR
MODEL NUMBER: U – 1
YEAR: 1967

SPECIFICATIONS:
Maximum Tube Diameter: 1-1/2" (38.1 mm)
Minimum Tube Diameter: 3/4" (19.05 mm)
Maximum Wall Thickness: .134" (3.40 mm)
Minimum Wall Thickness: .034" (.863 mm)
Vertical Adjustment: 4" – 8-5/8" (101.6 mm – 219.1 mm)
Horizontal Centers: 16"(406.4 mm)
Roll Space: 6" (152.4 mm)
Spindle Diameter: 2" (50.8 mm)
Center of Lower Spindle to Base: 7-1/2" (190.5 mm)
Worm Gear Ratio: 14.5:1

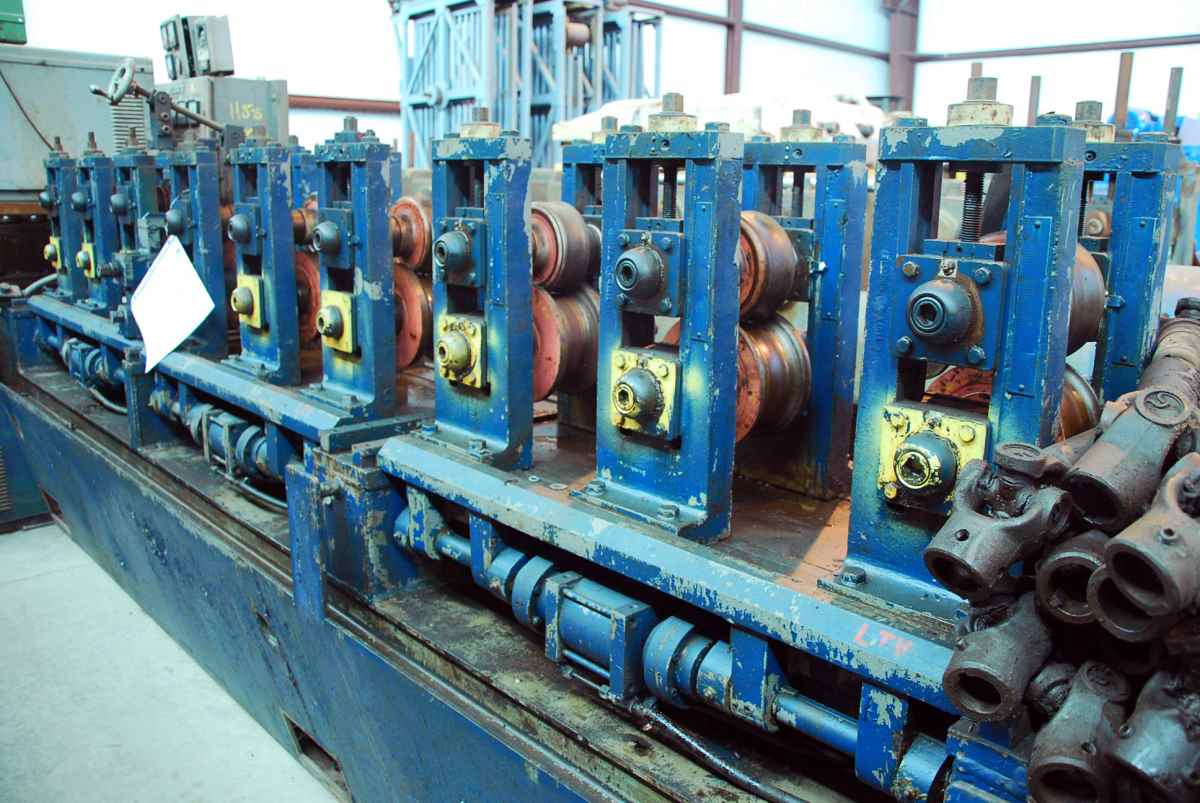

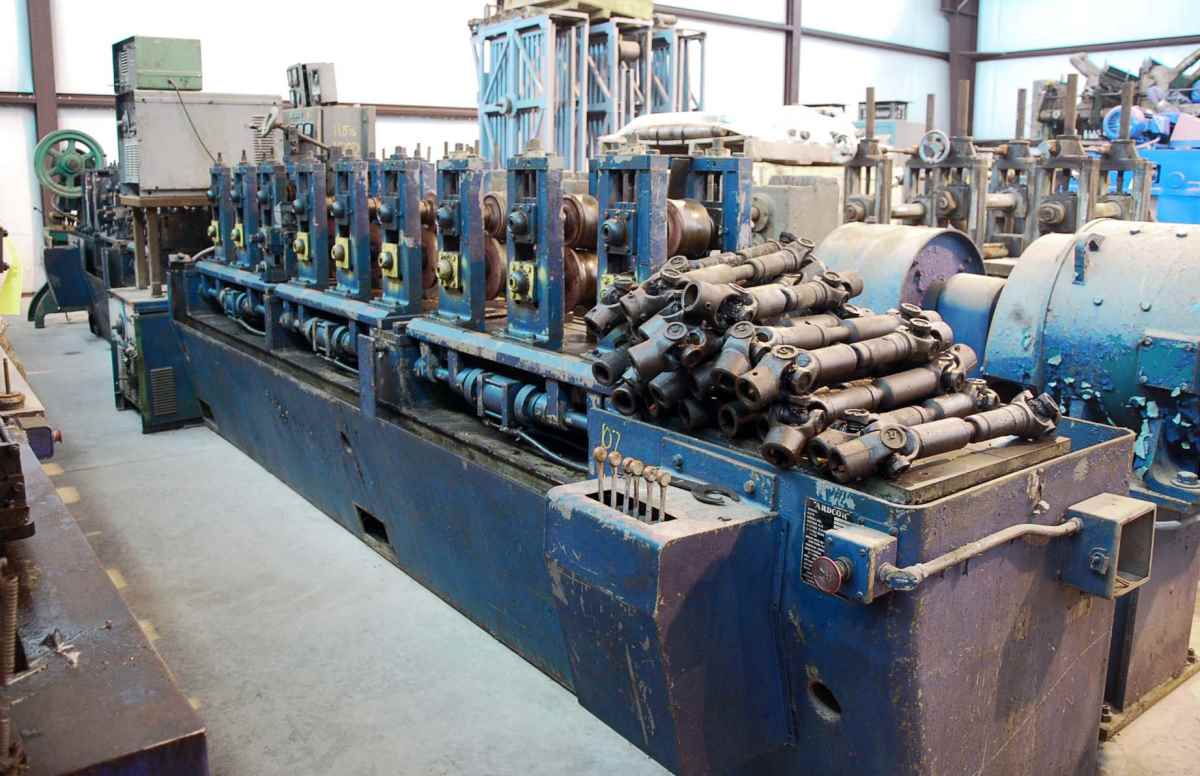

FORMING MILL:
(6) Driven Break Down Stands
(3) Driven Fins Stands
(1) 40 HP DC 500 Volt Motor

WELDING:
(1) 2-Roll Weld Pressure
(1) Seam Ironing Pass

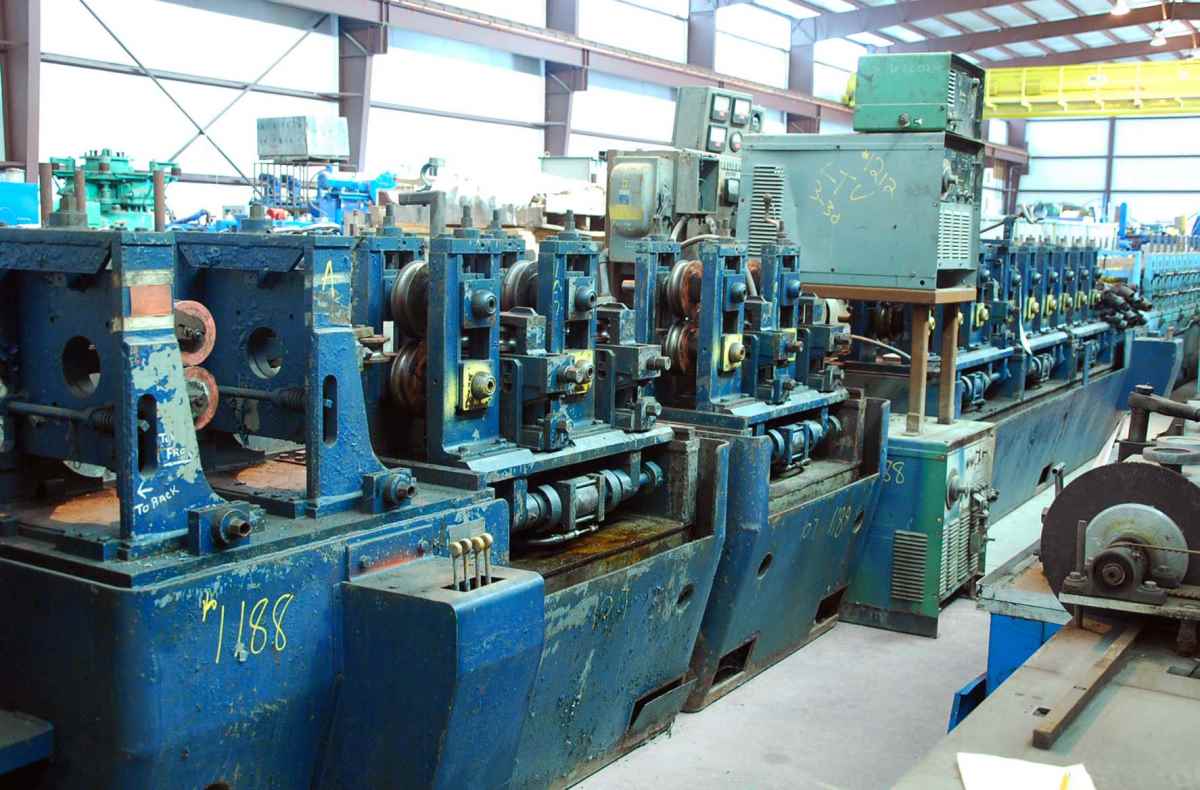

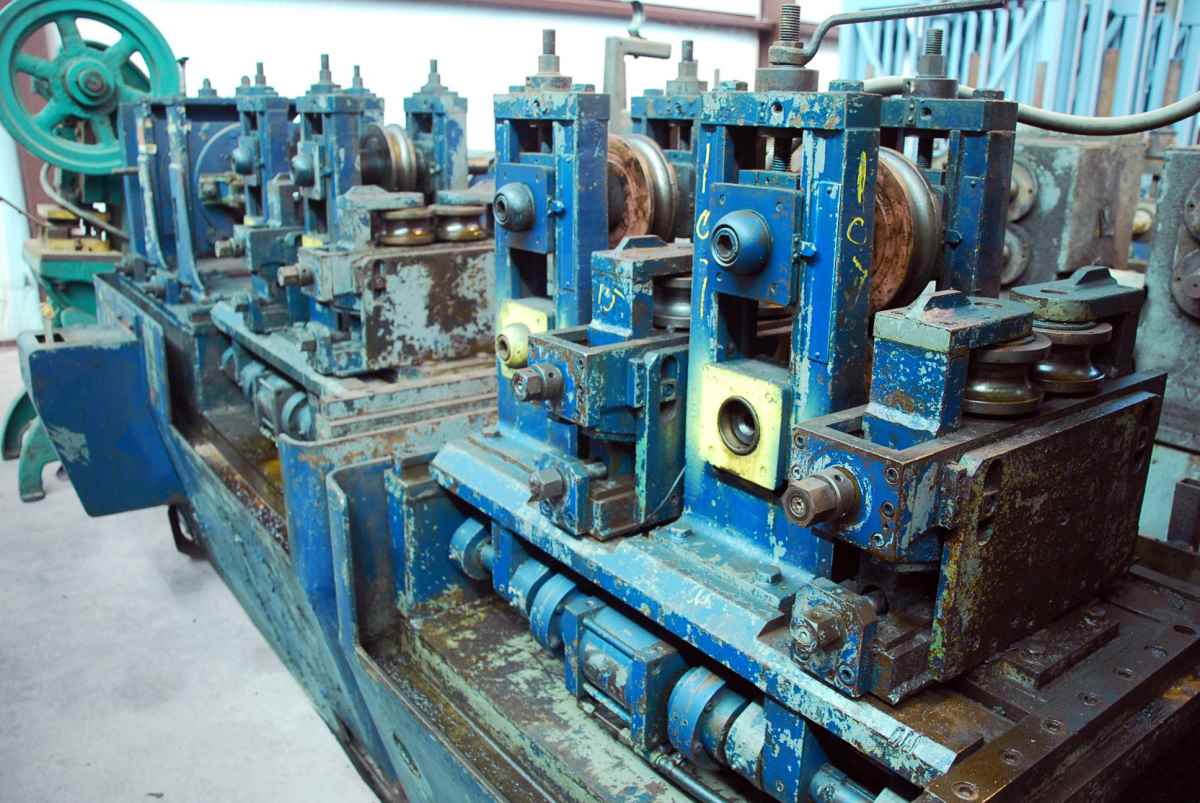

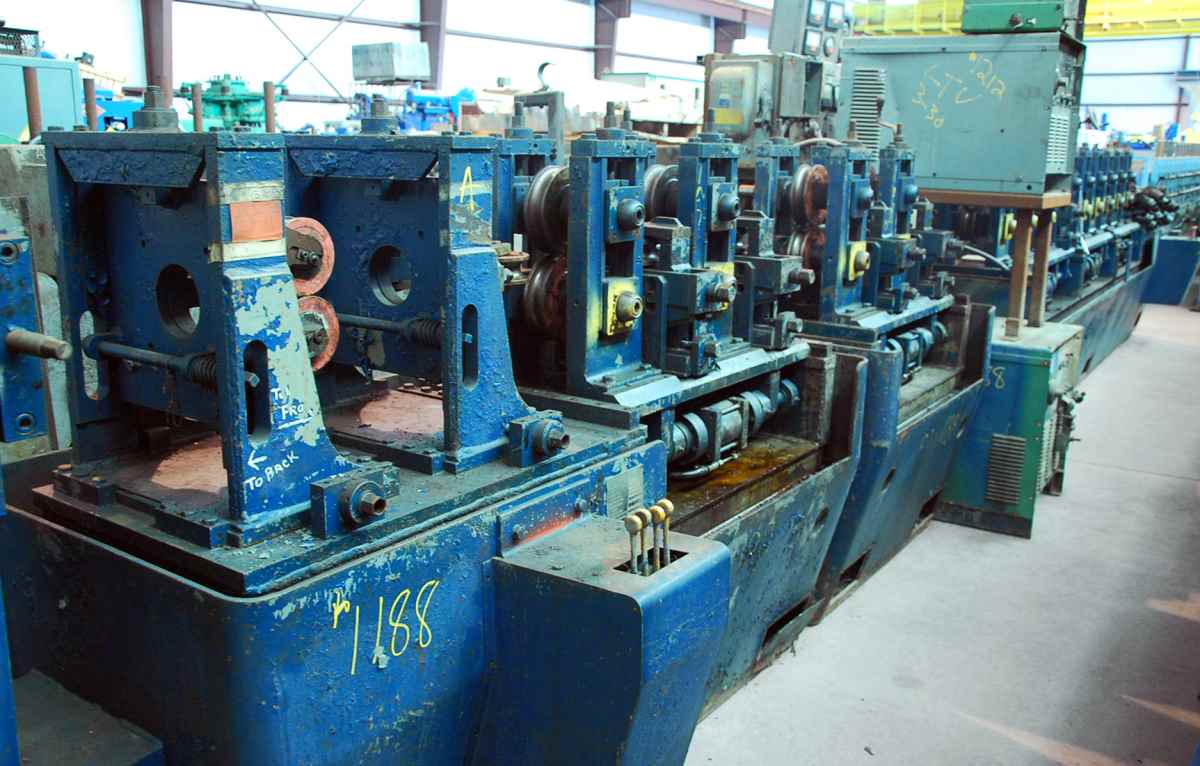

SIZING MILL:
(4) Driven Sizing Stands
(4) Idle Side Rolls
(2) 2-Roll Straightening Units
(1) 25 HP DC 500 Volt Motor

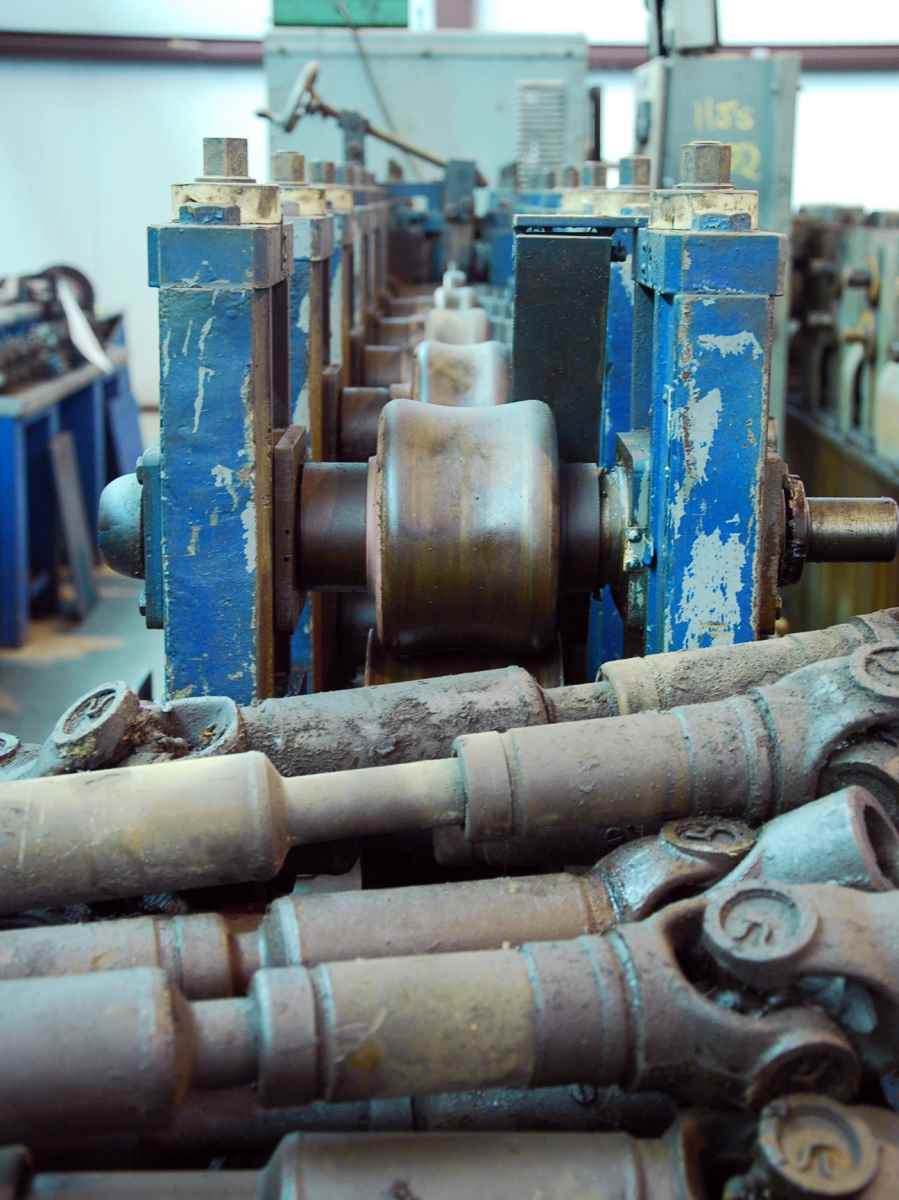

TOOLING:
1.315" (33.4 mm) On Mill

NOTE:
MILL ONLY, NO ENTRY, WELDER OR CUT-OFF

Ref. #107

OVERALL DIMENSIONS:
Multiple Pieces, 1 Truckload

APPROXIMATE WEIGHT:
40,000 Lbs.

LOCATION:
Universal Warehouse, Perrysburg, Ohio
