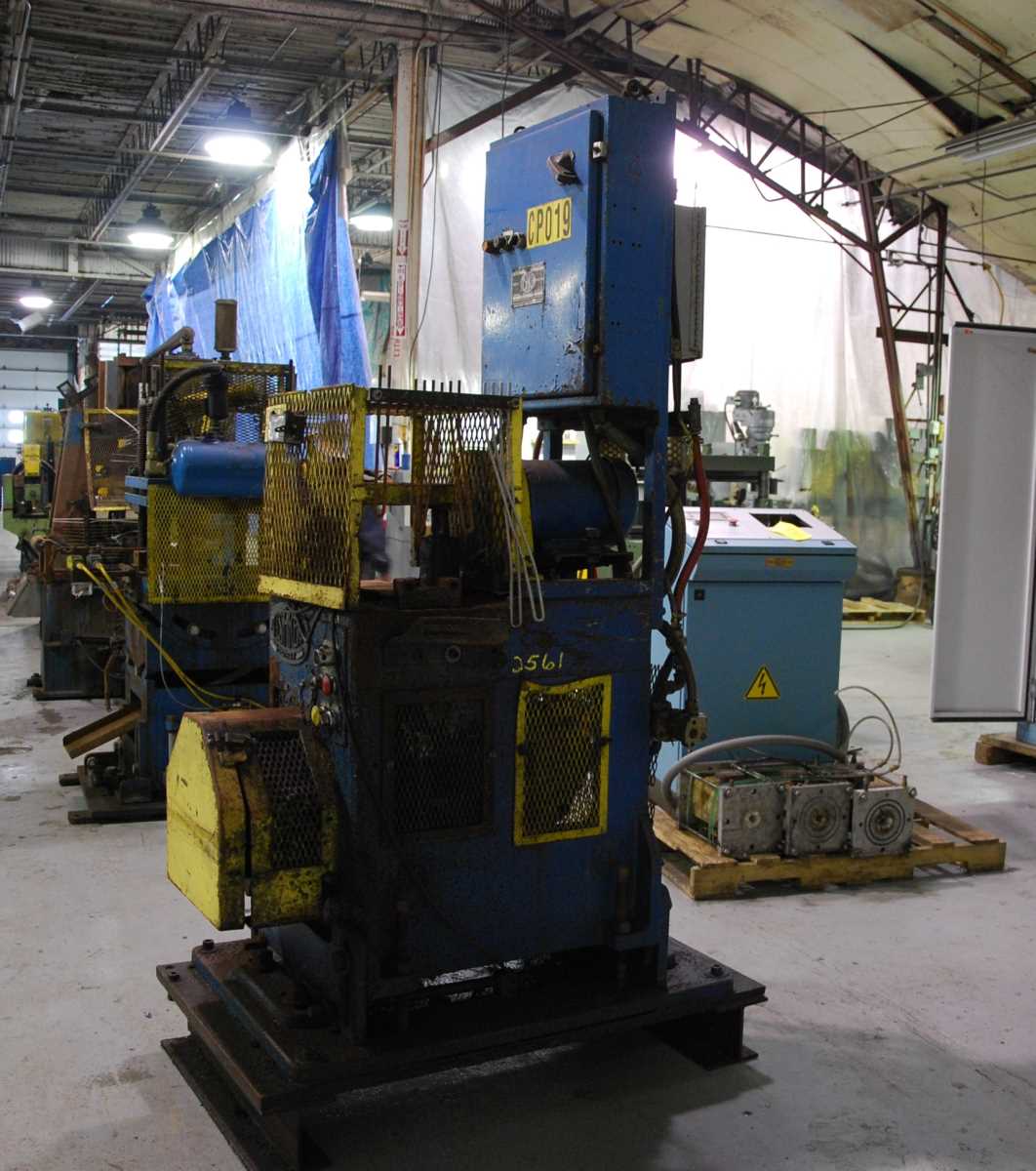

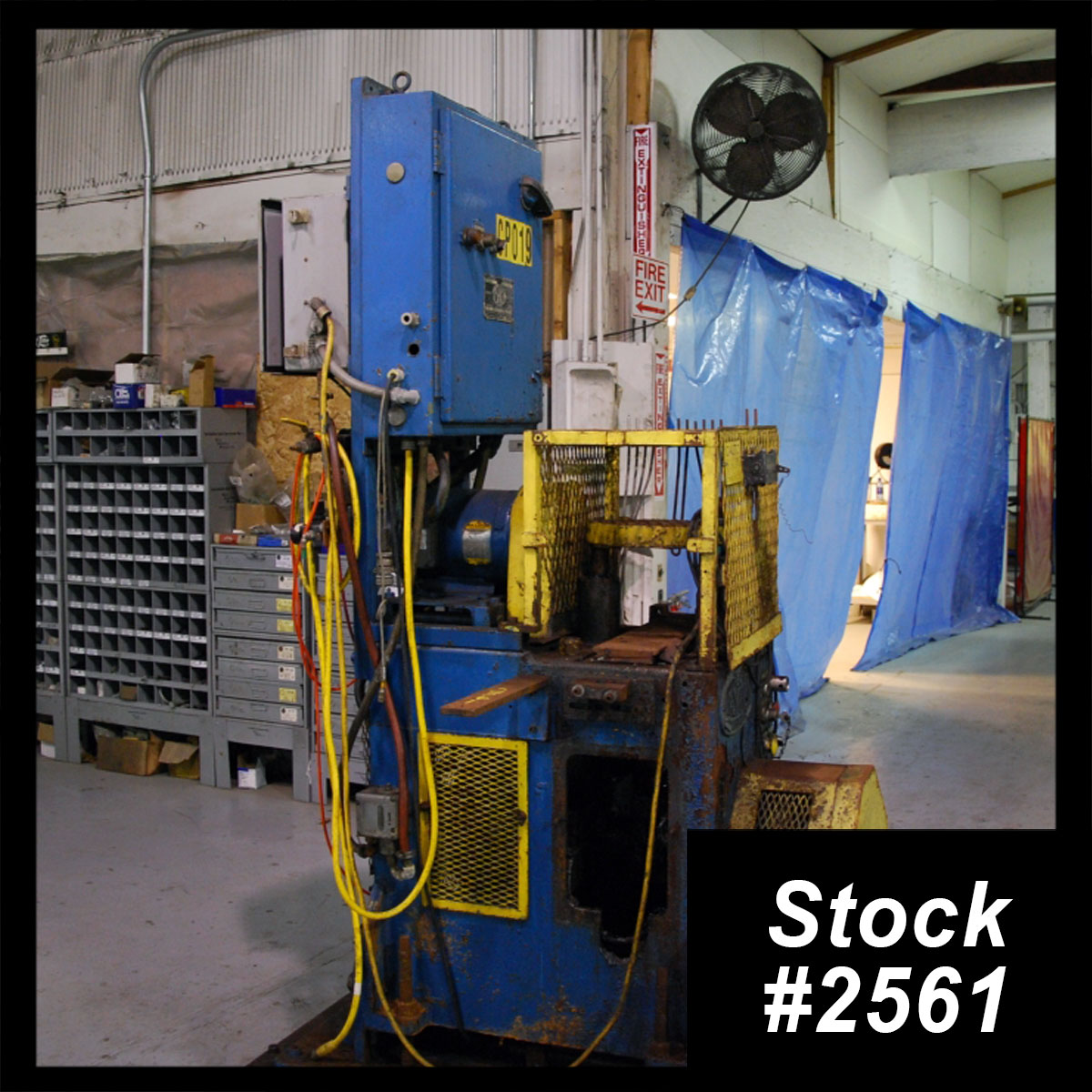

12 Ton TISHKEN CO-4-HWA, 2-Post Mechanical Cut-Off Press

Stock #: 2561



UTUBE NUMBER: 2561
MANUFACTURER: TISHKEN
MODEL NUMBER: CO-4-HWA
SERIAL NUMBER: 12146A 166

SPECIFICATIONS:
Capacity: 12 Ton
Stroke:
Speed: 40 SPM (Approximate)
Diameter of Posts: 1-1/2″
Die Area: 17″ x 7″
Distance Between Posts: 8″
Maximum Width of Cut: 3″
Distance Floor to Die: 38″ – 43″ (Adjustable)

EQUIPPED WITH:
Adjustable (Sliding) Base
Mechanical Clutch & Brake
2 HP AC Main Drive Motor
Spring Tension Brake

OVERALL DIMENSIONS: 3′ x 4′ x 7′ 6″
APPROXIMATE WEIGHT: 2,750 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio

CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS USED TISHKEN CO-4-HWA CUT-OFF PRESS BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ OUR TERMS AND CONDITIONS OF SALE.
