3″ Tube Mills For Sale:

Inventory / Tube Mills / HF/ERW / Stock #3649

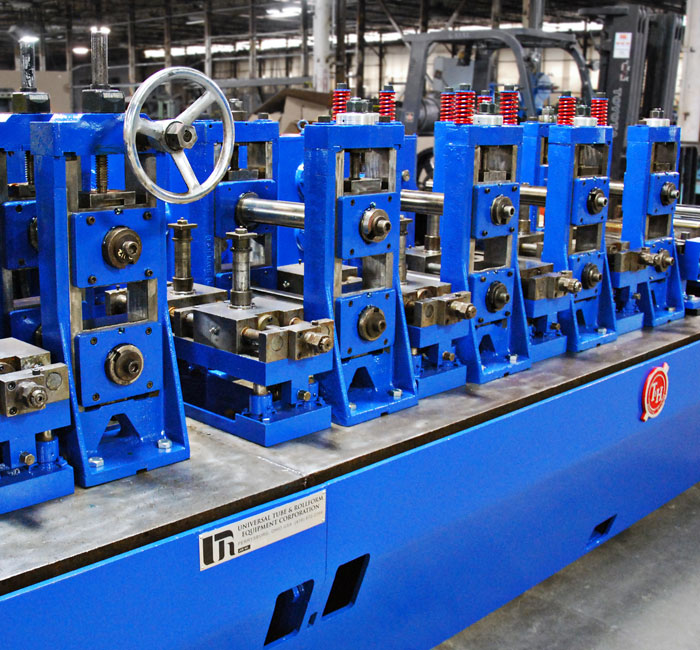

FEATURED: In-Stock, Ready For Inspection: 3″ (76.2 mm) x .134″ (3.40 mm) T&H #WU-25 Tube Mill Line

Tube O.D.: 1″ - 3″ (25.4 - 76.2 mm)
Wall: .034″ - .134″ (.86 - 3.4 mm)
Speed: 300 FPM, Max Gear In Speed, No Load
Max D/T Ratio: 60:1
Min D/T Ratio: 10:1
Max Material Yield: 50,000 PSI
Spindle Diameter: 2-1/2″
Roll Space Forming: 12″
Roll Space Fin & Sizing: 6-3/4″
3″ Tube Mill Line For Sale, T&H Model Number WU-25, High Frequency Tube Mill

Equipped With: Kent Double Uncoiler, Shear & End Welder and Floop. T&H Forming and Sizing Mills, 15' Coolant Section, New! UCG Flying Cold Saw, 20' Runout Table and (8) Sets of Tooling! For 50 mm, 55 mm, 60 mm, 1.500″, 1.750″, 2.000″, 2.500″, 3.000″ Rounds

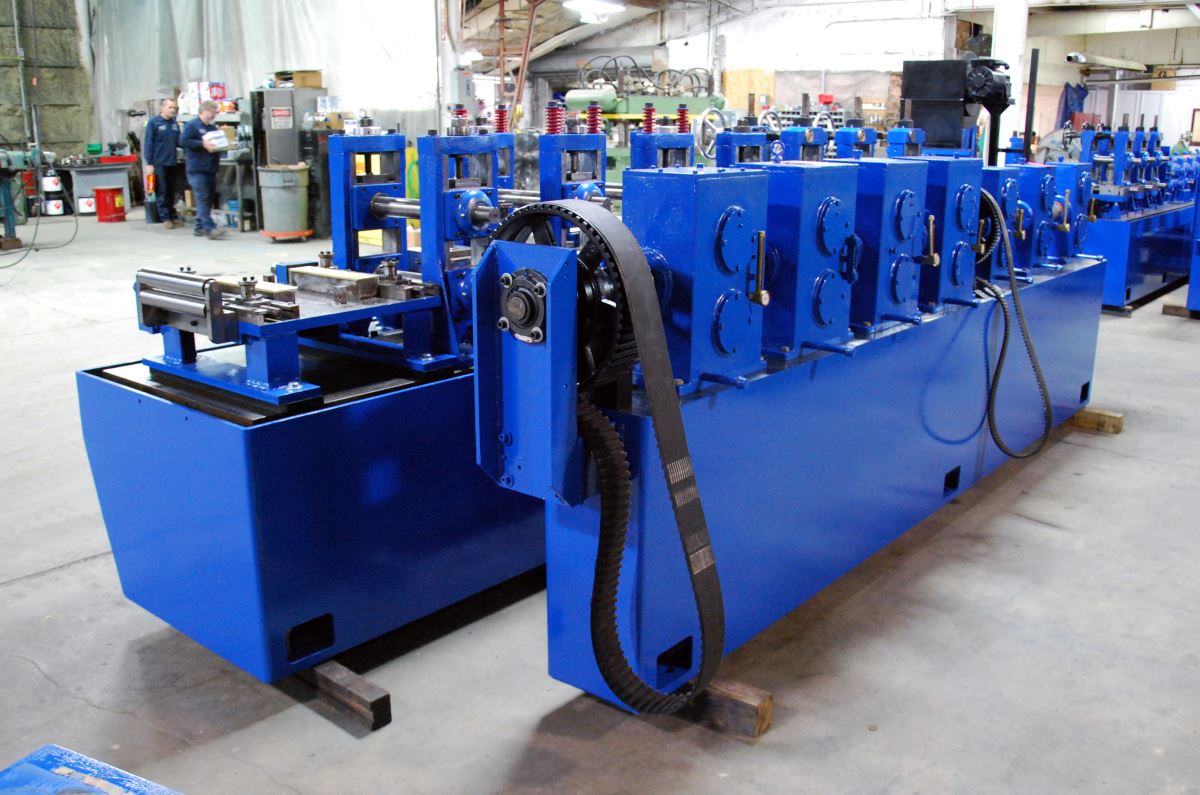

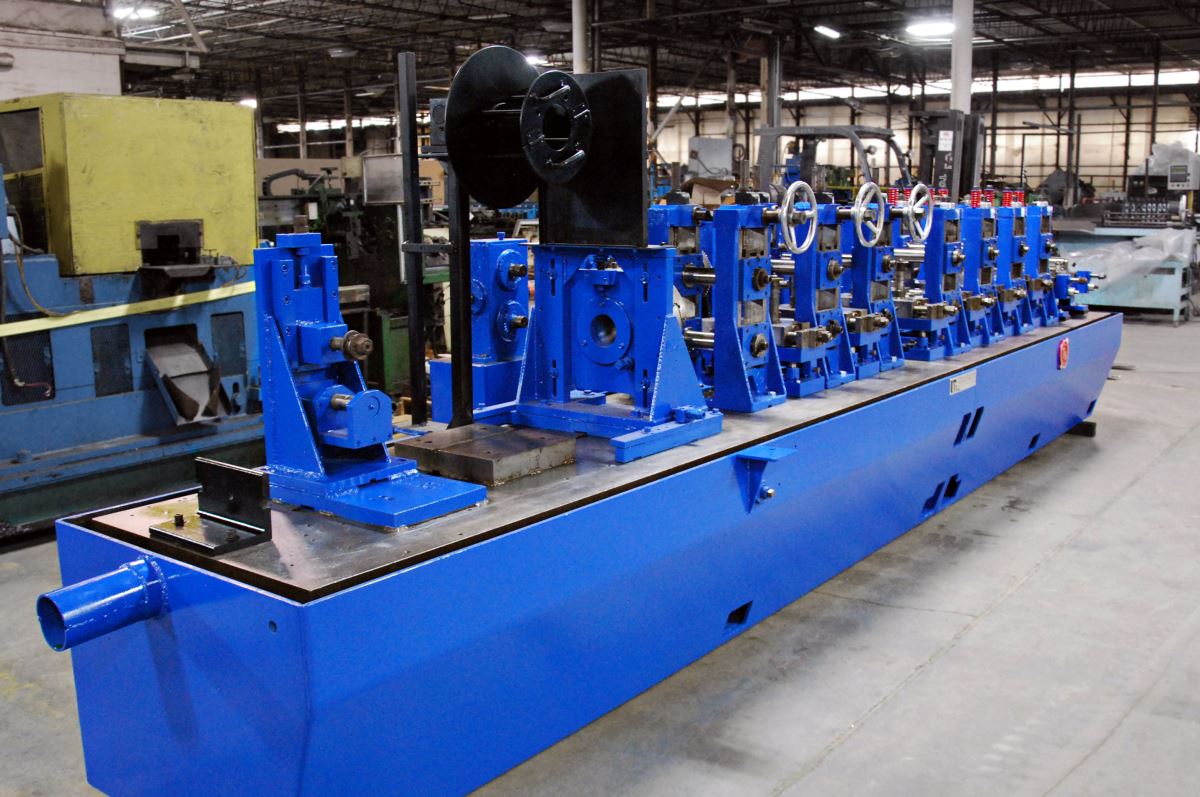

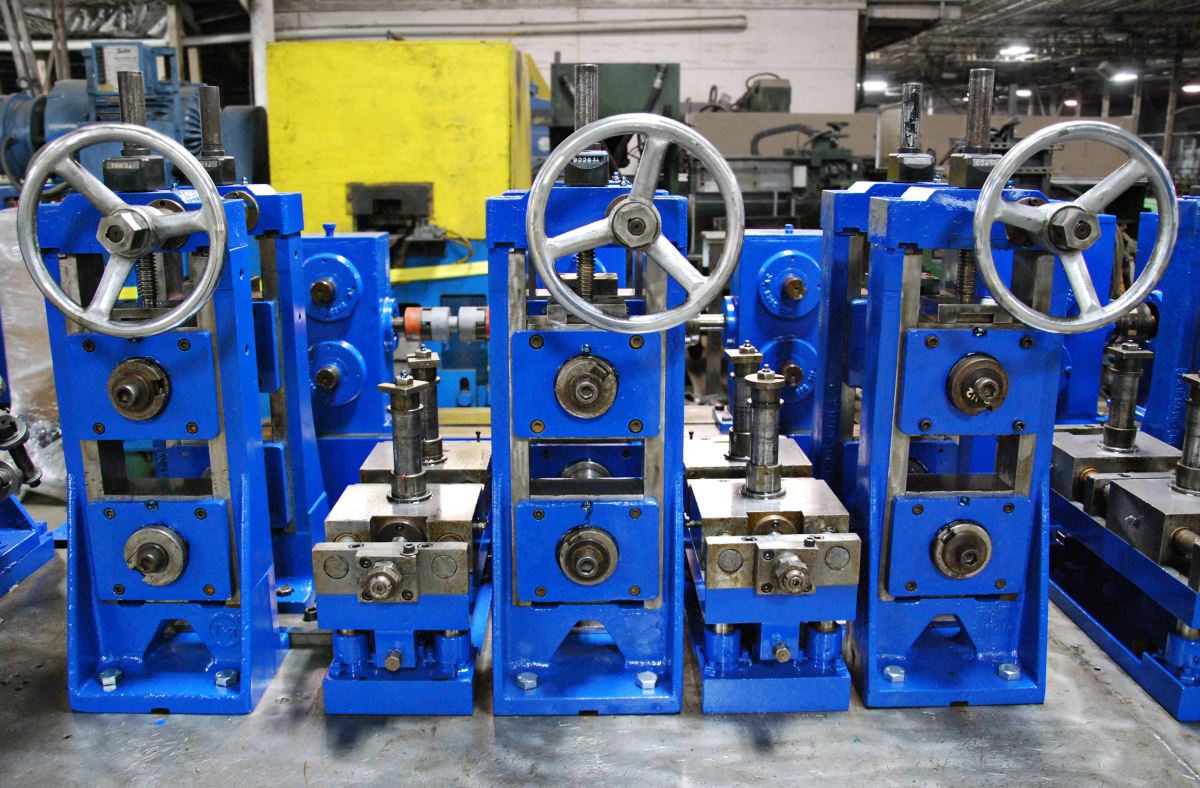

3″ T&H Tubing Mill 3″ Tube Mill Drive System 3″ Tube Mill Line 3″ Tube Mill Sizing Mill 3 Inch Tube MIll Line Stainless Steel Tubing Mill T&H Machine

Inventory / Tube Mills / HF/ERW / Stock #3602

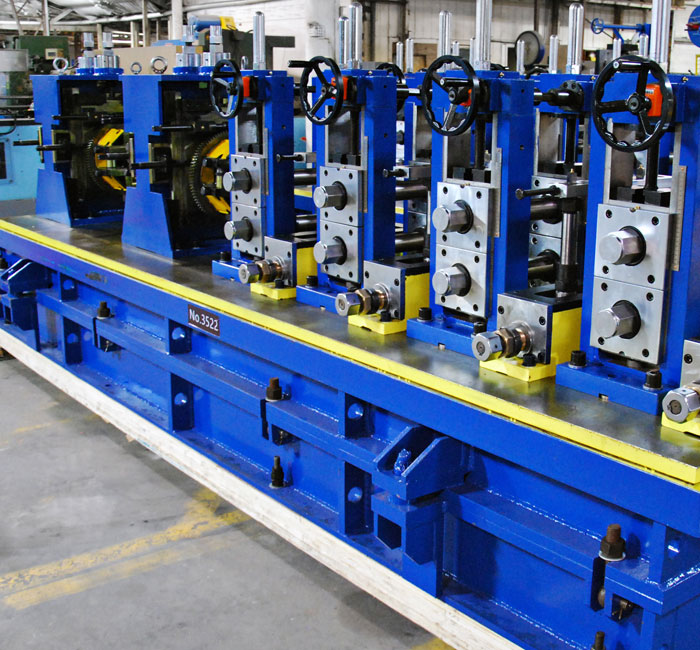

NEW 2019! On Our Floor: 3.125″ (79.3 mm) x .134″ (3.40 mm) SFM Tube Mill Line

Tube O.D.: 1″ - 3.125″ (25.4 - 79.3 mm)
Max Round Wall: .134″ (3.4 mm)
Max Shapes Wall: .120″ (3.17 mm)
Min Wall: .032″ (.812 mm)
Single Point Adjustment
Welding Speed: 65 – 300 FPM (20–90 MPM)
Direction: Right to Left
Driven Spindle Diameter: 2-1/2″
New 3″ Tube Mill Line For Sale

Equipped With: New! Kent Double Uncoiler, Shear & End Welder and Horizontal Accumulator. New! SFM Forming and Sizing Mills, New! SAN FENG Solid State HF Welder, New! 20' Coolant Zone, New! UCG Flying Cold Saw and New! UCG Drive System
New HVS 100 Accumulator for Tube Mill Lines New Kent Butt Welder for Tube Mill Lines New Tube Mill USA Forming and Sizing Mills new solid state high frequency welder New Tube Mill USA Flying Cold Saw

Inventory / Tube Mills / HF/ERW / Stock #3670

RUNNING! On-Site Inspection Available:

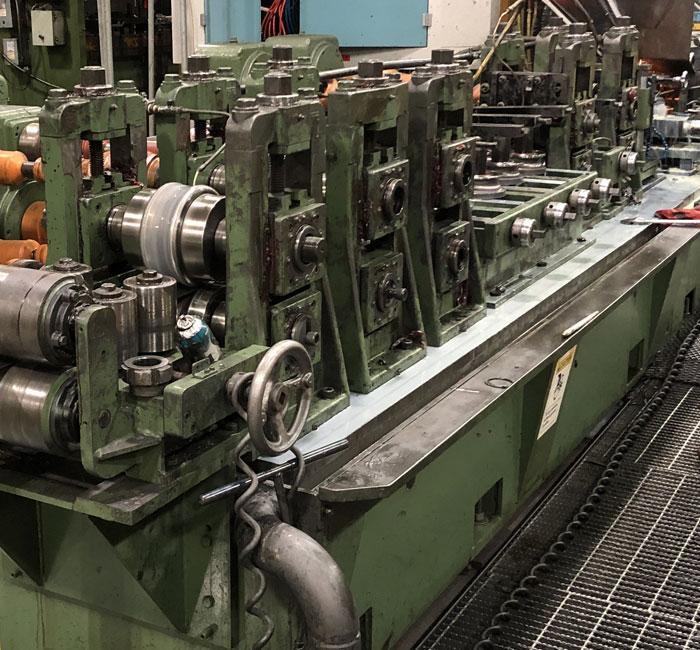

3″ (76.2 mm) x .160″ (4 mm) ABBEY ETNA Tube Mill Line (Rebuilt in 2016)

Tube O.D.: 1/2″ - 3″ (12.7 - 76.2 mm)
Wall: .018″ - .160″ (.45 - 4 mm)
Speed: 300 FPM, Max Gear In Speed, No Load
Max D/T Ratio: 60:1
Min D/T Ratio: 10:1
Max Material Yield: 50,000 PSI
Direction: Left to Right
Drive All Shift Boxes: Forced Lube System, Gear Ratios: 1:1, 2.2:1, 3.125:1
AC Motors & Drive System: New in 2016
3″ (76.2 mm) x .134 (3.40 mm) T&H #WU-25 High Frequency Tube Mill Line

Equipped With: Jib Crane, LITTELL Double Uncoiler, KENT Shear & End Welder, KENT Floop, ABBEY ETNA Forming and Sizing Mills, SAN FENG Solid State HF Welder (New in 2016), 20' Coolant Zone, BETARAM Cut-Off and UCG U-Trak Length Control System (New in 2016)
(2) VIDEOS

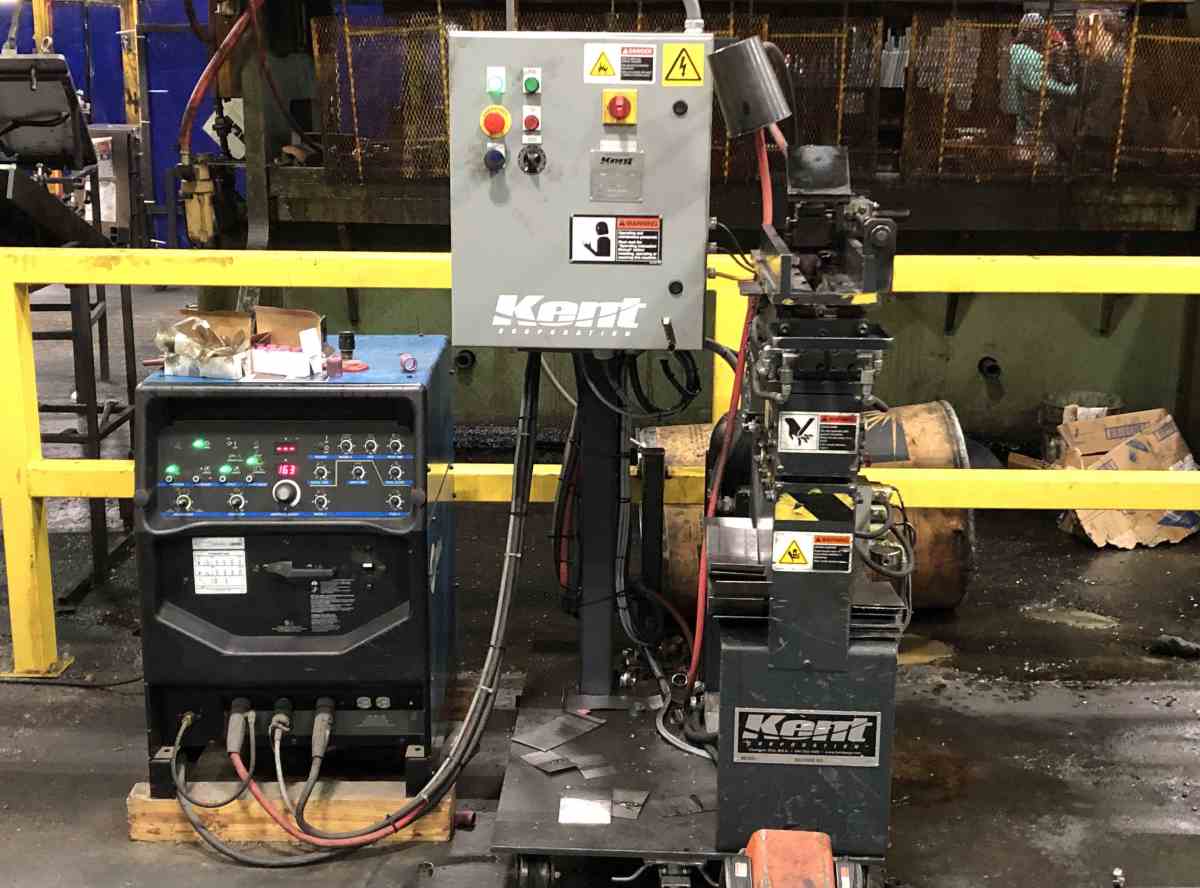

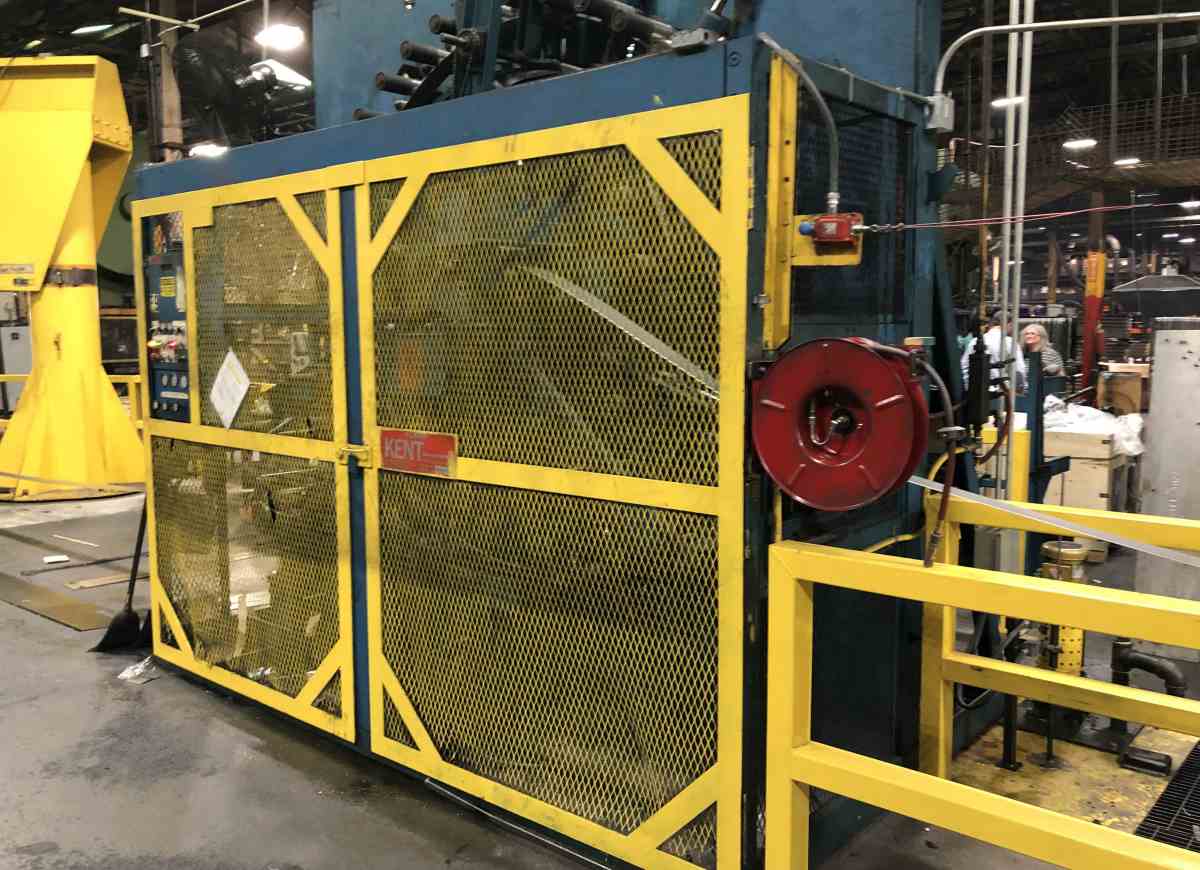

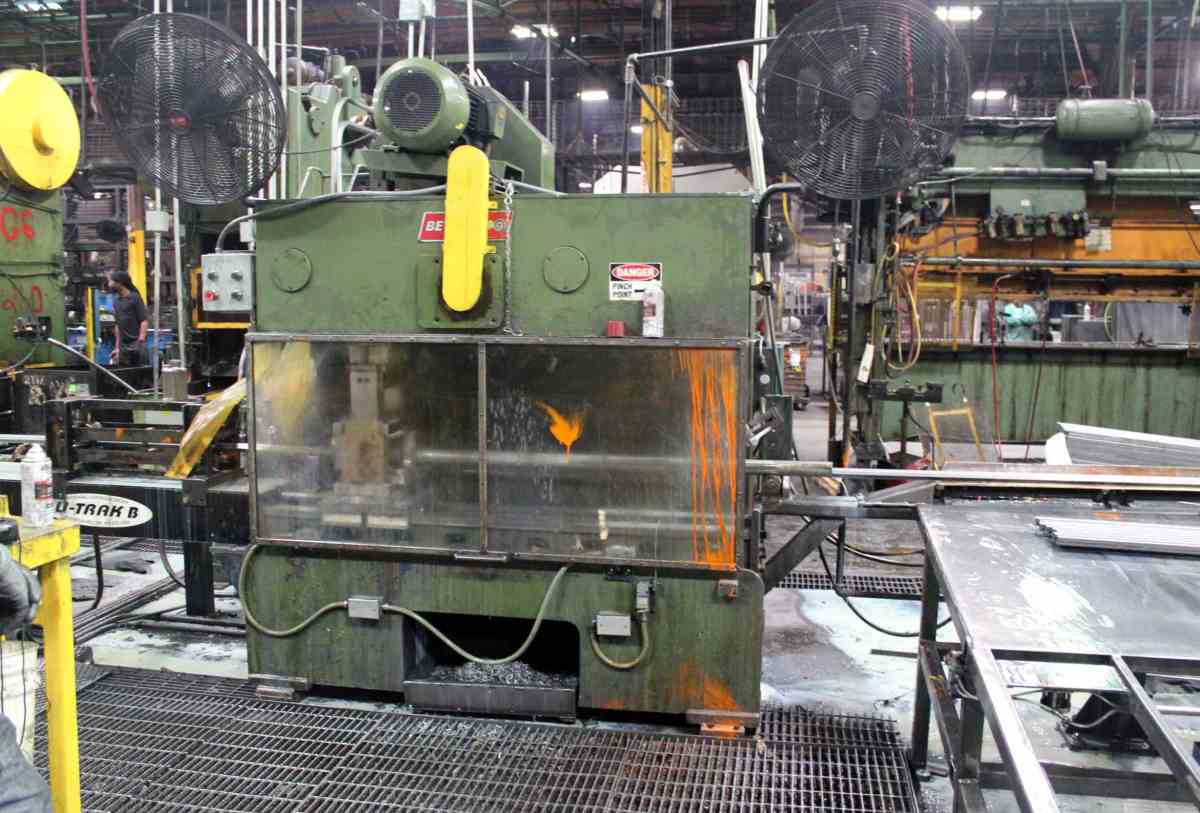

3″ Tube Mill Line video running Accumulator for 3″ tube mill line Coil End Welder reconditioned 3″ Tube Mill Line 3 Inch OD Tube cutoff Machine

Inventory / Tube Mills / HF/ERW / Stock #3336

3″ (76.2 mm) x .134″ (3.40 mm) AEF Tube Mill

Tube O.D.: 3/4″ - 3″ (19 - 76.2 mm)
Wall: .035″ -.134″ (.889 - 3.4 mm)
Speed: 300 FPM, Max Gear In Speed, No Load
Max D/T Ratio: 60:1
Min D/T Ratio: 10:1
Max Material Yield: 50,000 PSI
Driven Spindle Diameter: 2-1/2"
Direction: Right to Left
3″ Tube Mill Line For Sale, Usa

Equipped With: AEF Forming and Sizing Mills, 18' Coolant Zone, 20' Runout Table, Mill Motors, Drive Cabinet, Push Button Controls and (1) Set of Tooling for 2-3/4" x 1" (69.85 - 25.4 mm) Rectangles

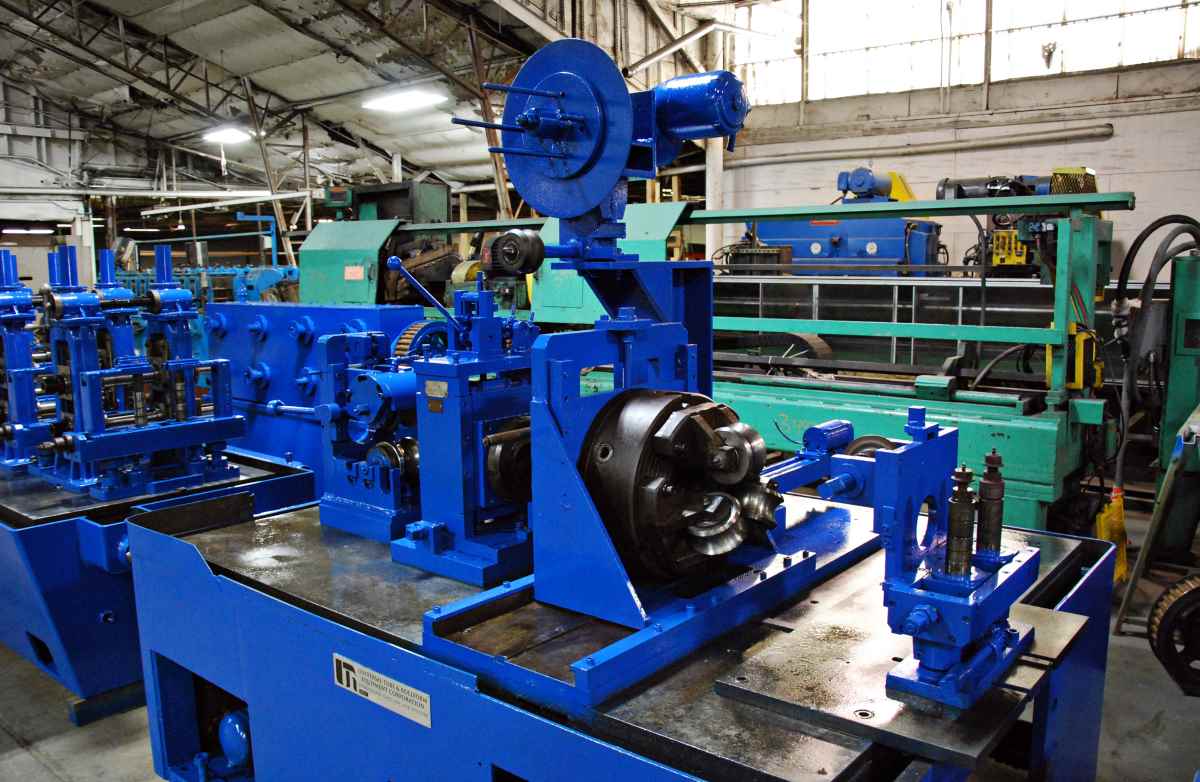

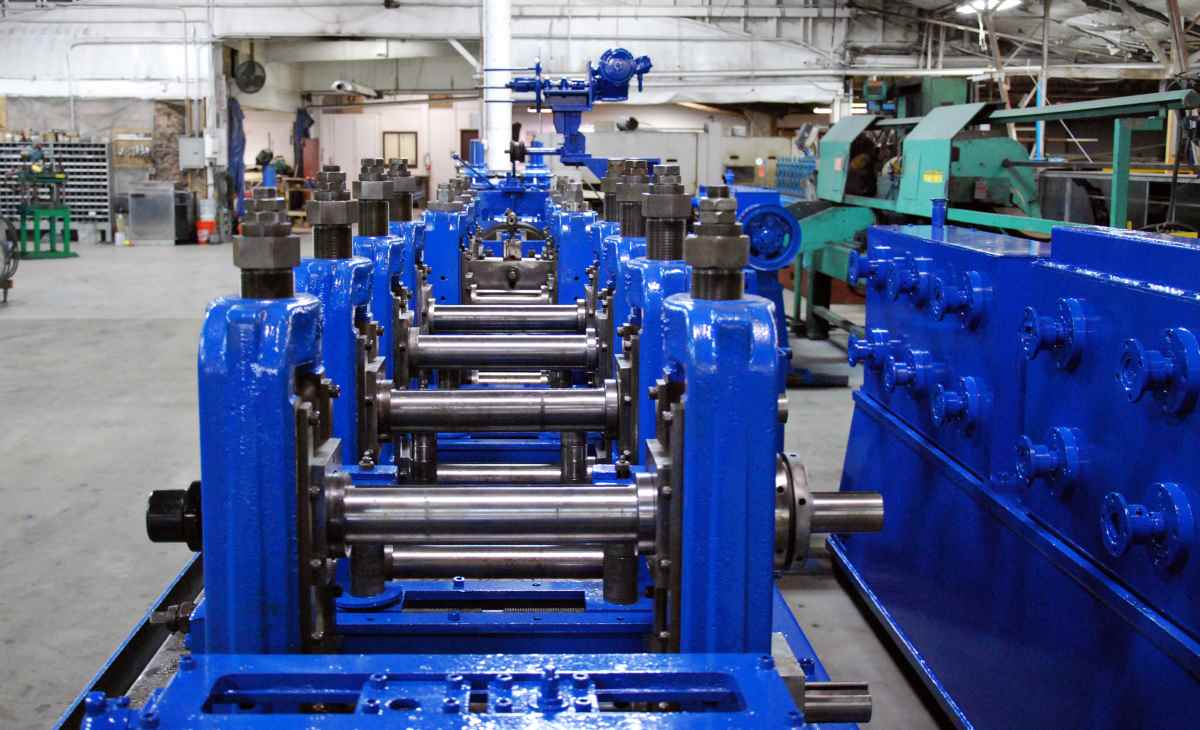

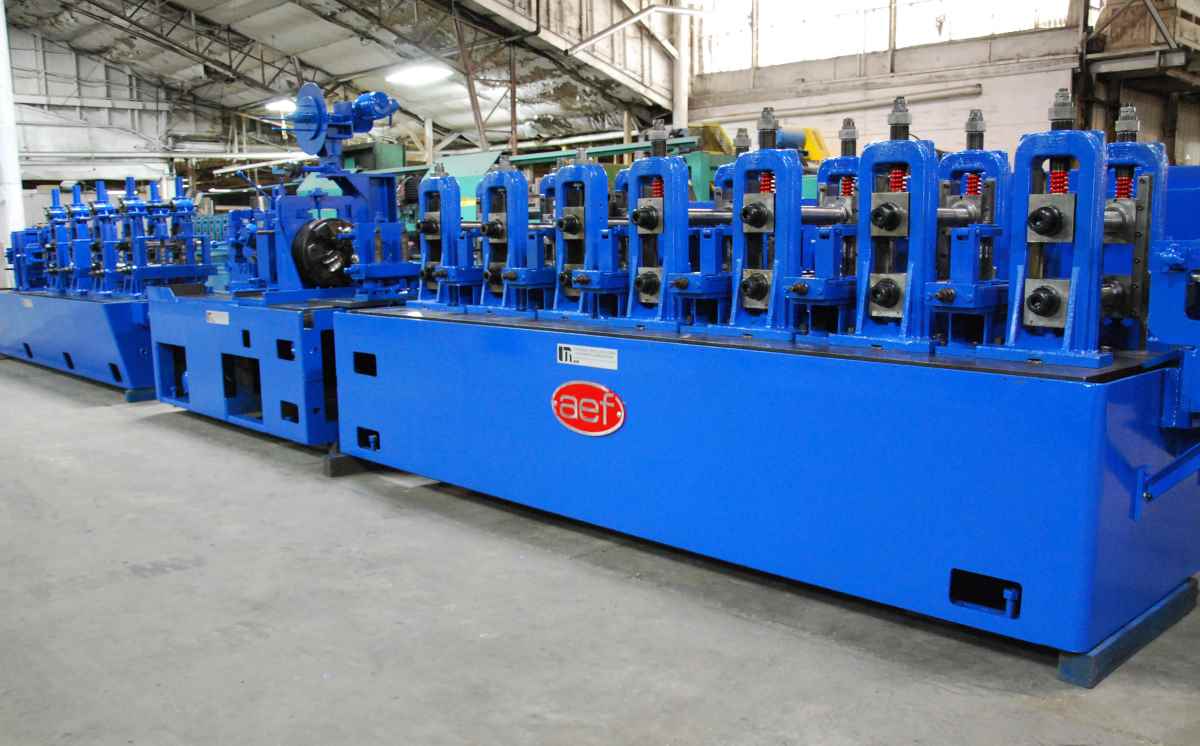

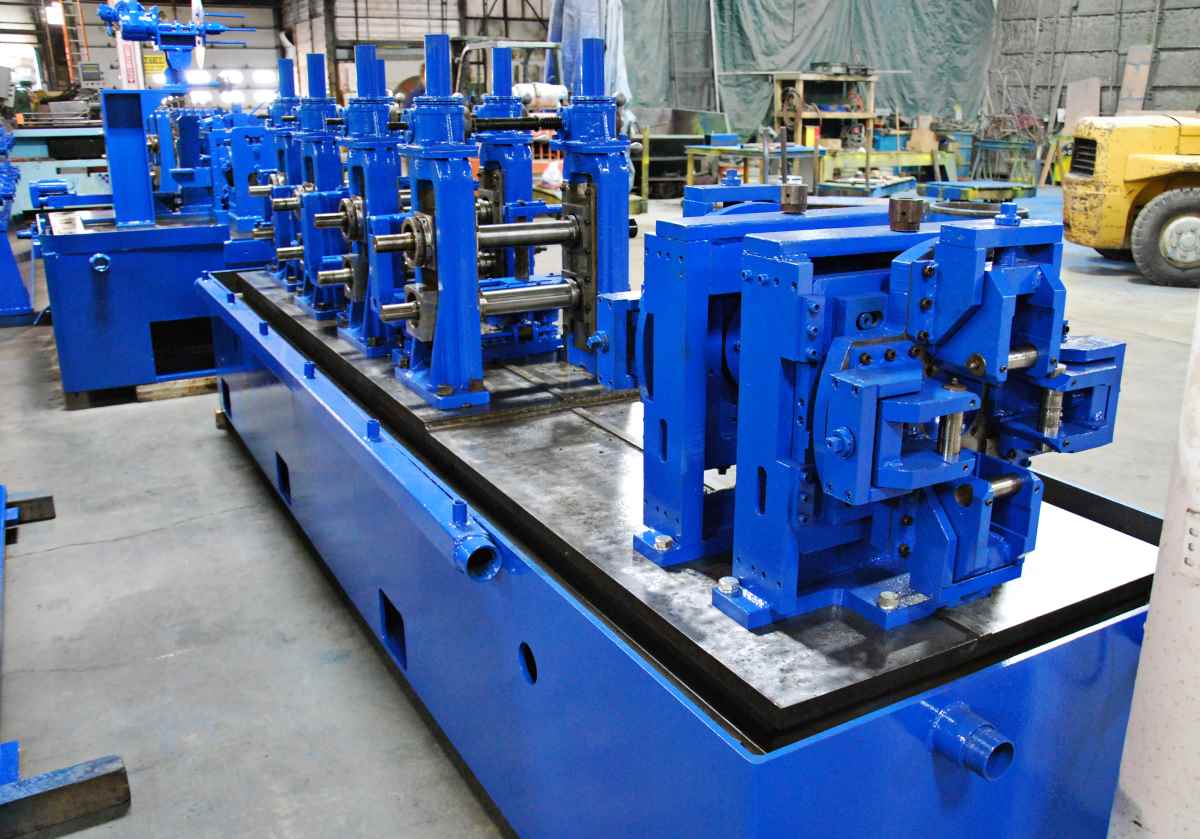

AEF Tube Mill AEF Tube Mill AEF Tube Mill AEF Tube Mill Turkshead on Sizing Mill AEF Tube Mill Welding Section, 3-Roll Weld Pressure Unit, Scarfing Stand

Inventory / Tube Mills / HF/ERW / Stock #3218

3″ (76.2 mm) x .125″ (3.17 mm) ABBEY ETNA #2K Tube Mill

Tube O.D.: 1/2" - 3″ (12.7 - 76.2 mm)
Wall: .018″ -.125" (.45 - 3.17 mm)
Speed: 350 FPM (106 MPM) Gear in Speed
Max D/T Ratio: 60:1
Min D/T Ratio: 10:1
Max Material Yield: 50,000 PSI
Driven Spindle Diameter: 2″
Direction: Right to Left
3″ (76.2 mm) Abbey Etna Tube Mill For Sale

Equipped With: ABBEY ETNA Forming and Sizing Mills, 20' Runout Table and Mill Motors
Abbey Etna Tube Mill Abbey Etna Tube Mill Abbey Etna Tube Mill Abbey Etna Tube Mill Abbey Etna Tube Mill

Inventory / Tube Mills / HF/ERW / Stock #3462

NEW! 3.125″ (79.3 mm) x .134″ (3.4 mm) UNIVERSAL Tube Mill Line

Tube O.D.: 1" - 3.125″ (25.4 - 80 mm)
Max Round Wall: .134″ (3.4 mm)
Max Shapes Wall: .120″ (3.17 mm)
Min Wall: .032″ (.812 mm)
Driven Spindle Diameter: 2-1/2″
Single Point Adjustment
Rafted
3″ (76.2 mm) New Tube Mill

Equipped With: New! KENT Double Uncoiler, Shear & End Welder and Horizontal Accumulator. New! YODER Forming and Sizing Mills, New! SAN FENG Solid State HF Welder, New! UCG Flying Cold Saw and New! UCG (3) Motor Drive System
New HVS 100 Accumulator for Tube Mill Lines New Kent Butt Welder for Tube Mill Lines New Tube Mill USA Forming and Sizing Mills new-solid-state-high-frequency-welder New Tube Mill USA Flying Cold Saw

Inventory / Tube Mills / TIG / Stock #1207

3″ (76.2 mm) x .154″ (3.91 mm) MCKAY TIG Tube Mill

Tube O.D.: 7/8" - 3″ (22.2 - 76.2 mm)
Wall: .028″ - .154" (7 - 3.9 mm)
Spindle Diameter: 2-1/2″
Vertical Adjustment: 7-1/2″ – 12″
Horizontal Centers: 17″
Direction: Right to Left
3″ (76.2 mm) Mckay Tig Tube Mill

Equipped With: MCKAY Forming and Sizing Mills and (1) Set of Tooling for 1.660" (42.1 mm) Rounds
Mckay Tig Tube Mill Mckay Tig Tube Mill Mckay Tig Tube Mill Mckay Tig Tube Mill Mckay Tig Tube Mill
