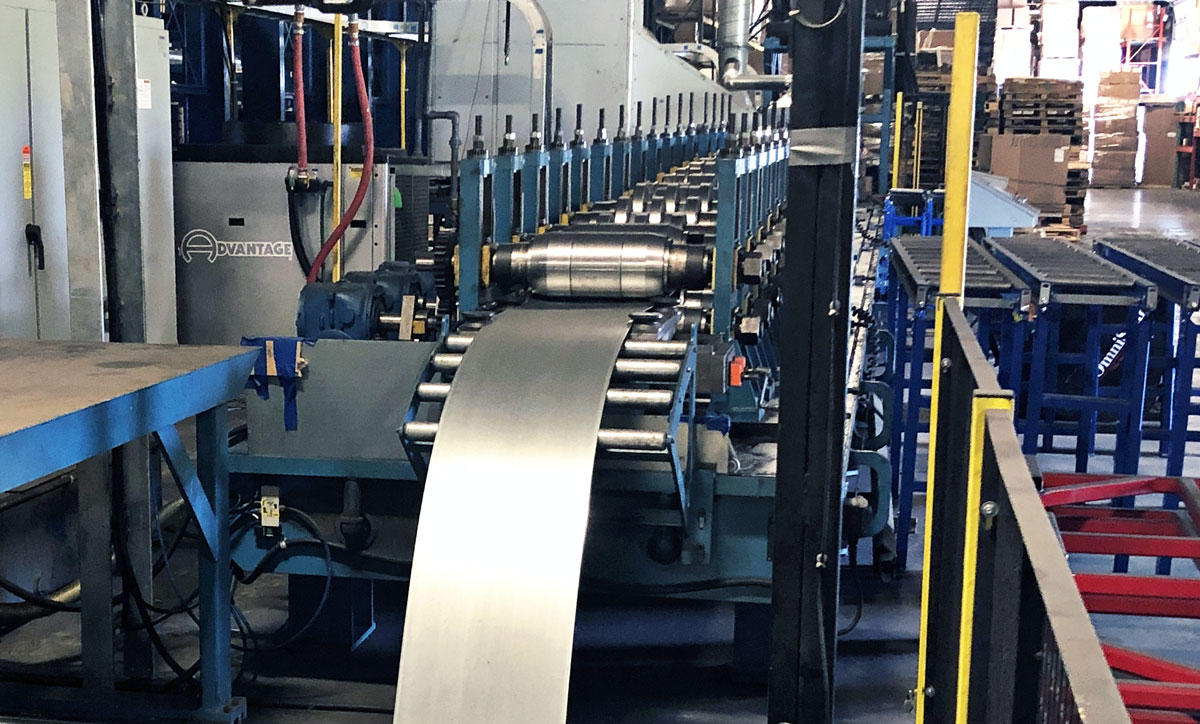

For Sale: SAMCO Unistrut Profile & 4" x 4" Form Square Combo Line

LINE SPECIFICATIONS:

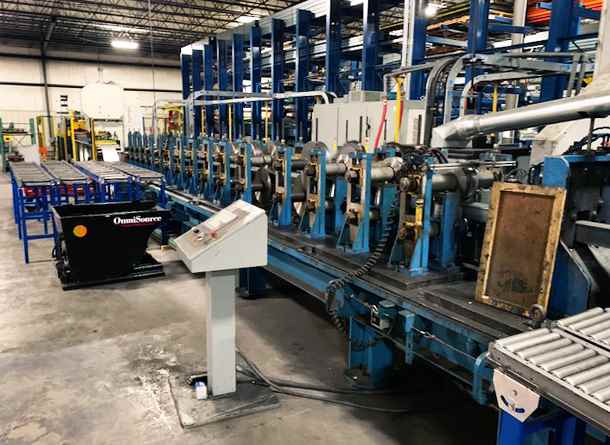

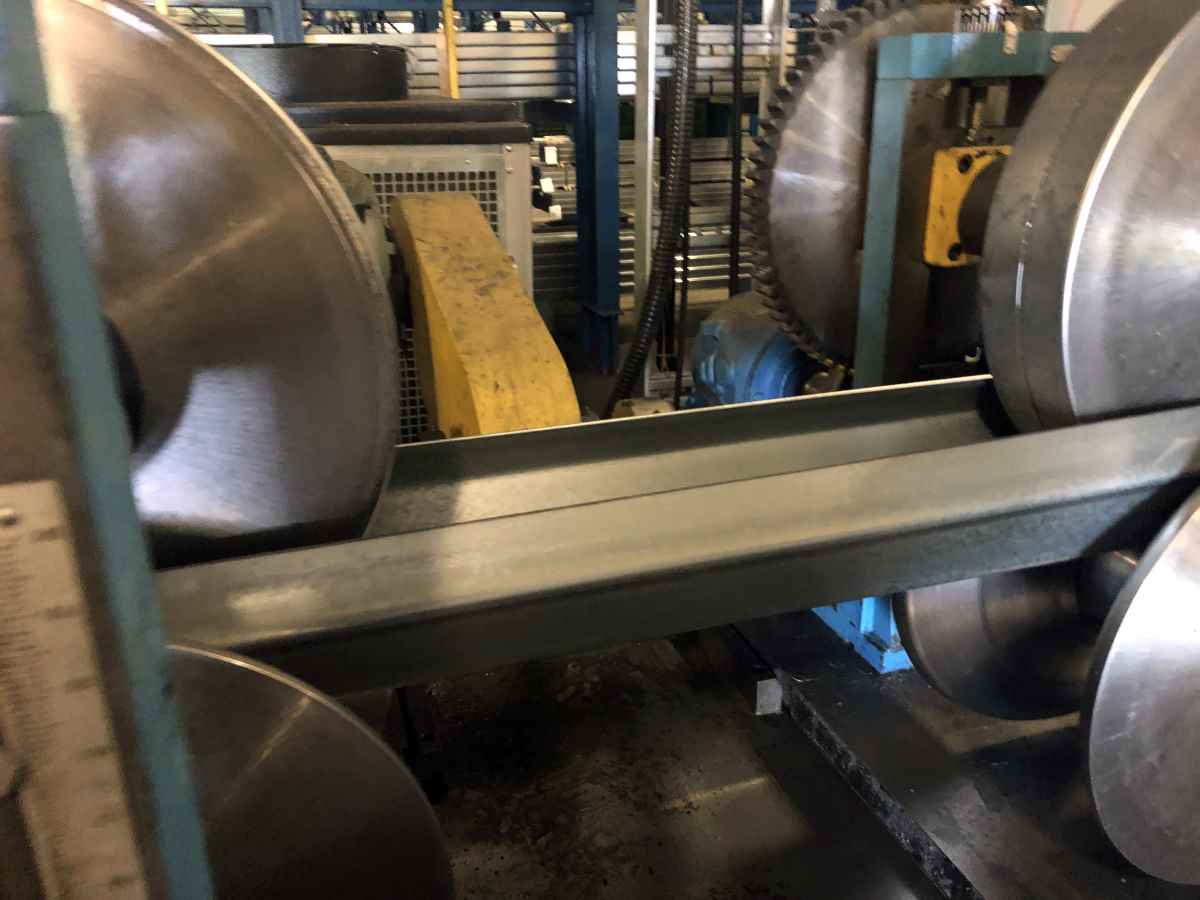

• SAMCO “12 Gauge Strut Channels” Rollforming Line

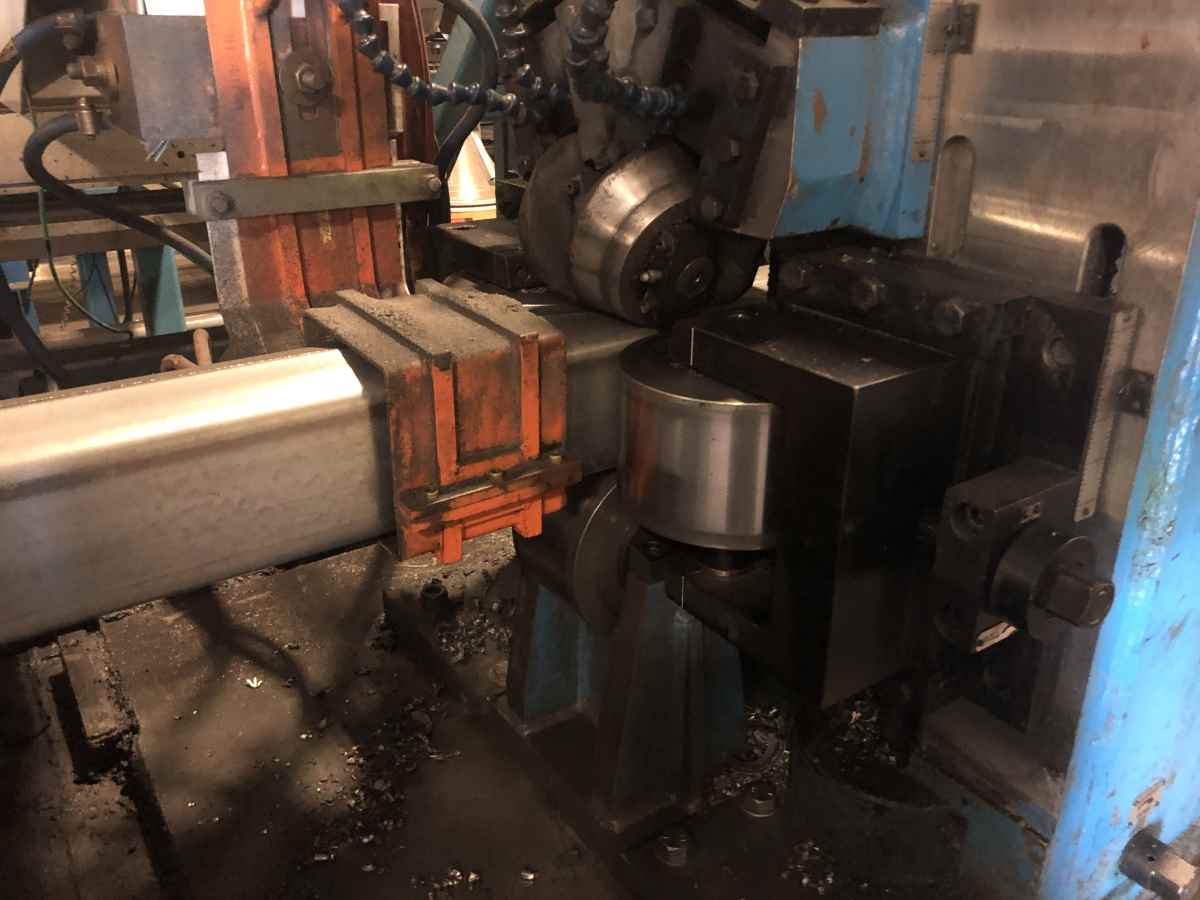

• Inline High Frequency Welding for welded tube 4″ x 4″ x 3.5 mm thick
• Line Direction: Left to Right
• Speed: Variable up to 100 FPM (30 M/Min) depending on the punching pattern and part length(s)
• Top Speeds for part lengths 8 ft or longer
• Performance for welded tube 4″ x 4″ up to maximum 75 FPM

PRODUCTS:
Strut Dimensions:
• Web Width: 41 mm (1 5/8")
• Flange Height: 13/16" (21 mm), 1" (25 mm), 1 5/8" (41 mm), 2 1/4" (54 mm), 2 15/16" (75 mm), 3 1/4" (80 mm) and 3 15/16" (100 mm)
• Lip: 0.375" x 0.281" (9.5 mm x 7 mm) symmetrical
• Lengths: 10 ft minimum, 20 ft maximum

Welded Tube:
• 4" x 4"
• Material Thickness 3.5 mm
• Material POSMAC440
• Material Yield Strength: max. 72,000 psi
• Inline welding with up to 75 FPM
• Part will be pre-notch for cut-off
• Part Length: 25 ft 2"

EQUIPPED WITH:
Note: Detailed specifications for the following equipment is available on the specifications page for this line.

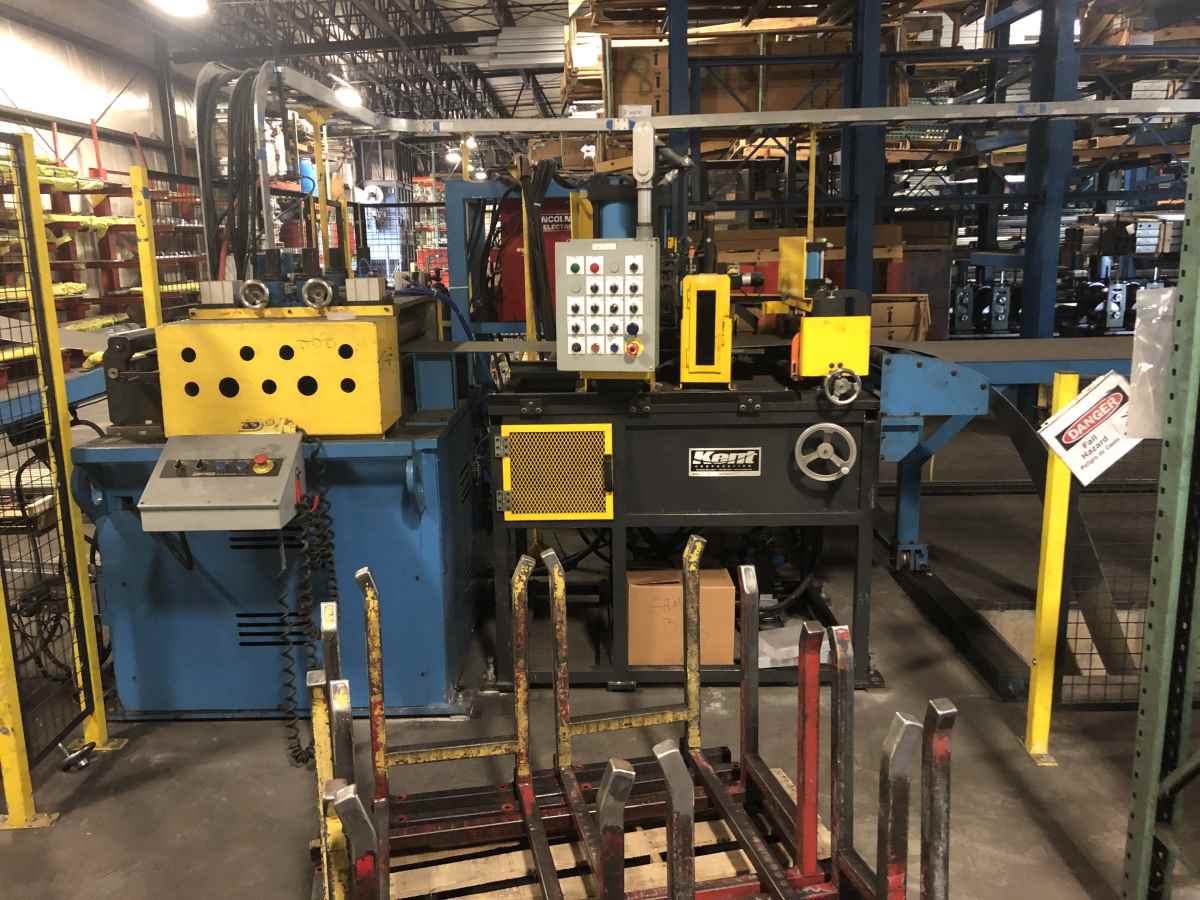

• 10,000 Lb. Double Uncoiler
• Peeler Table
• Powered Flattener
• Stock Material Sensor
• Coil Shear & End Welder
• Loop Control & Threading Table #1
• Servo Roll Feeder

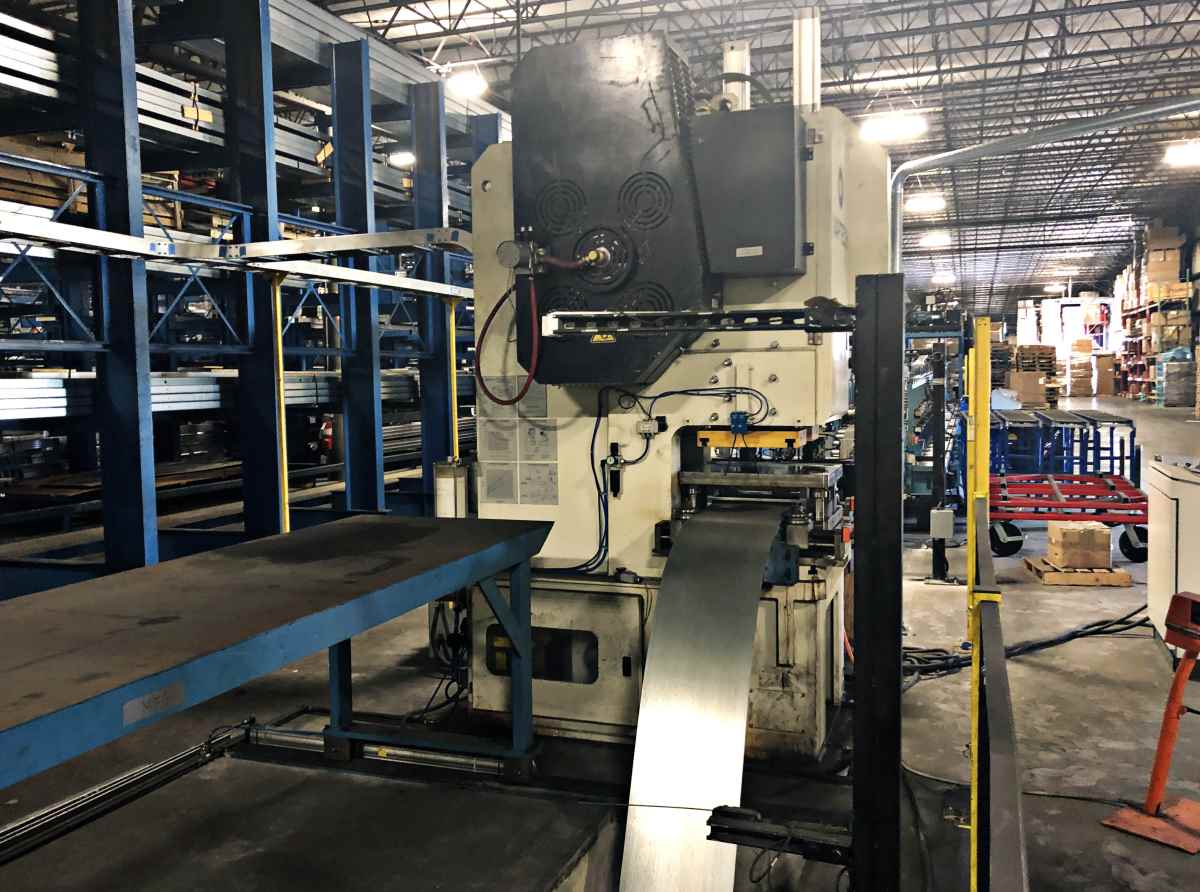

• Mechanical Pre-Punch Press
• Pre-Punch Die
• Loop Control & Threading Table #2

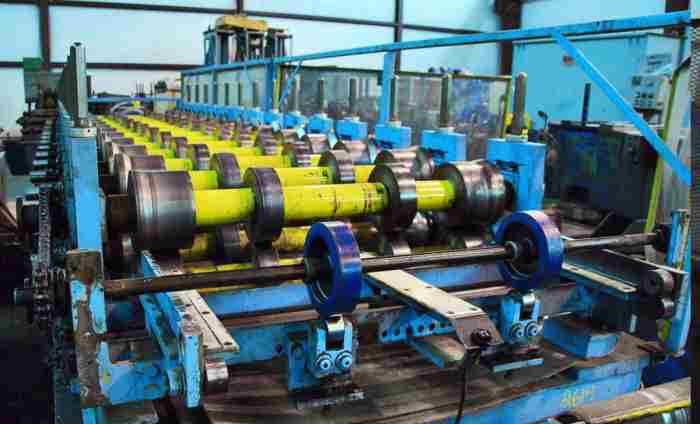

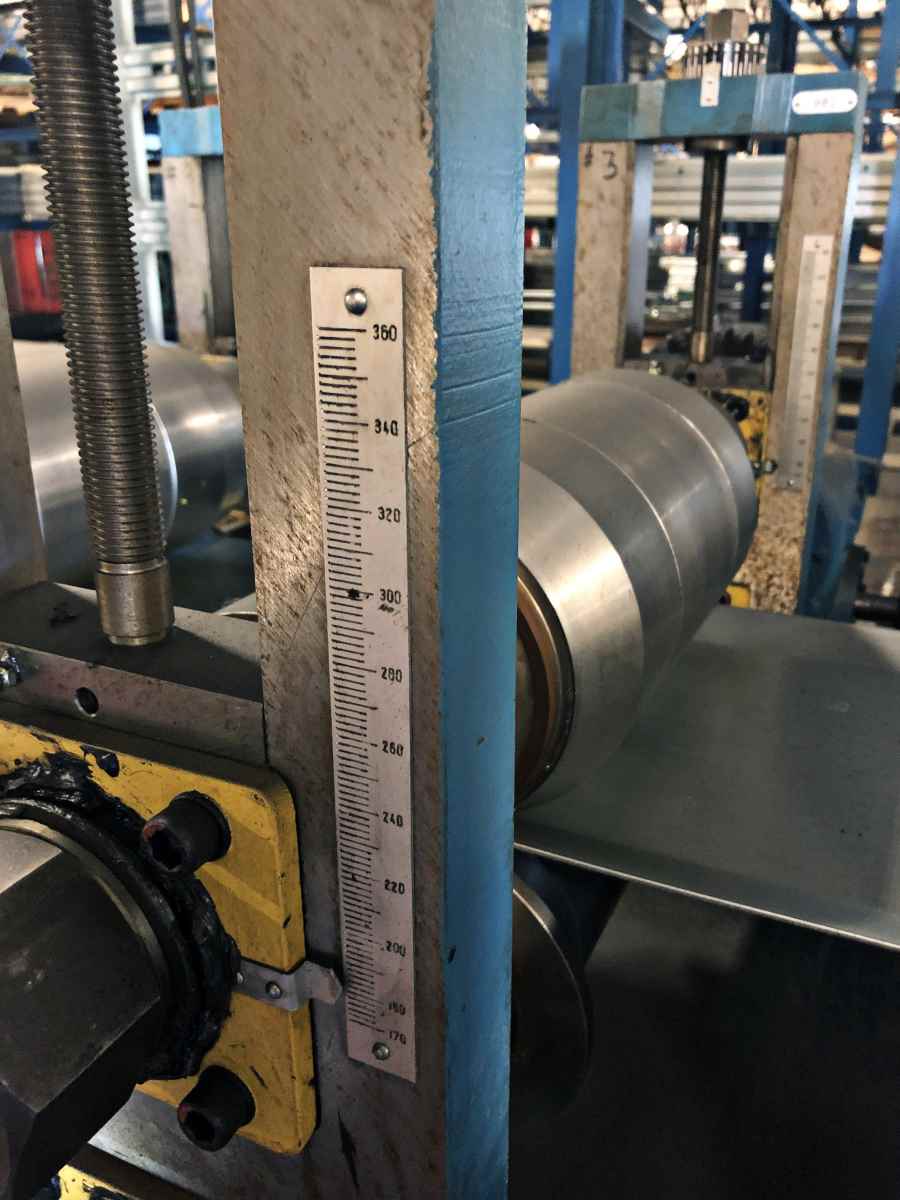

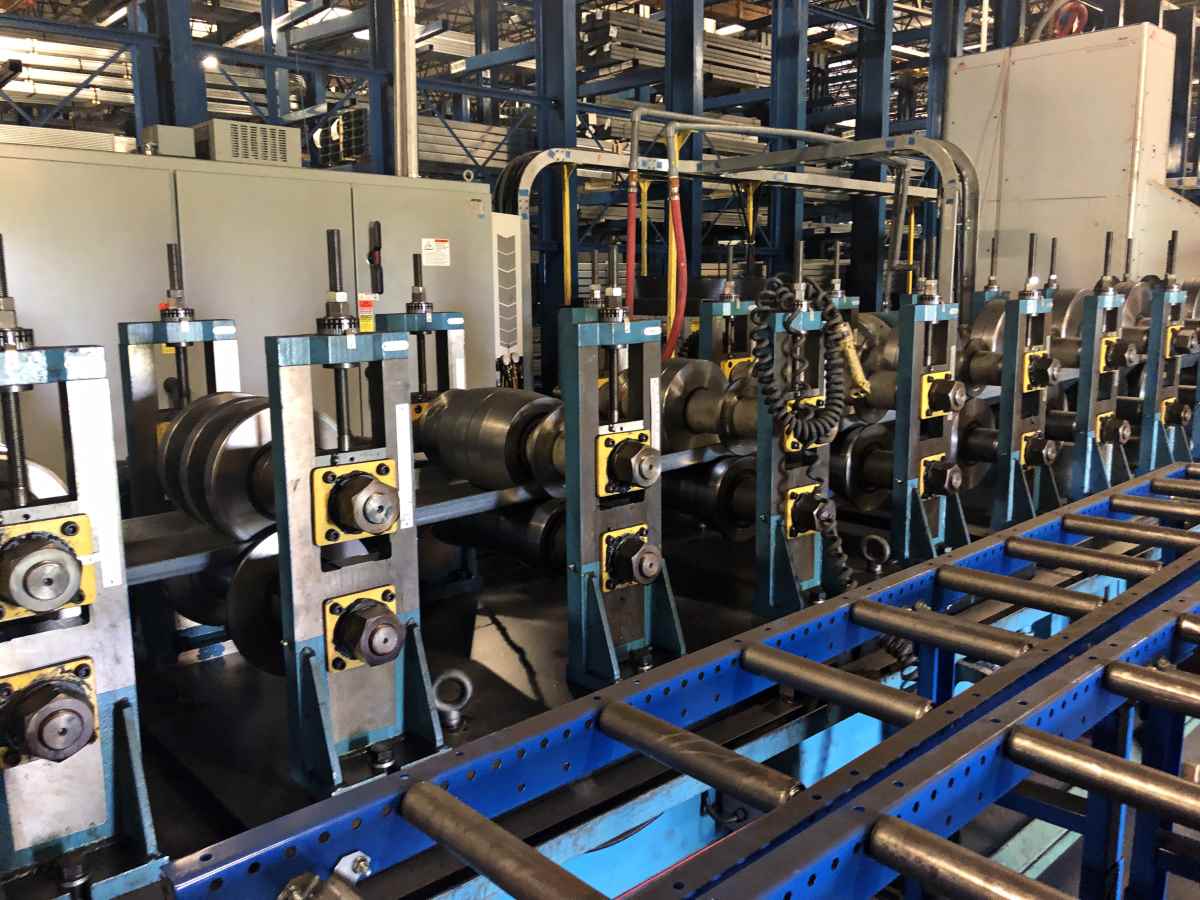

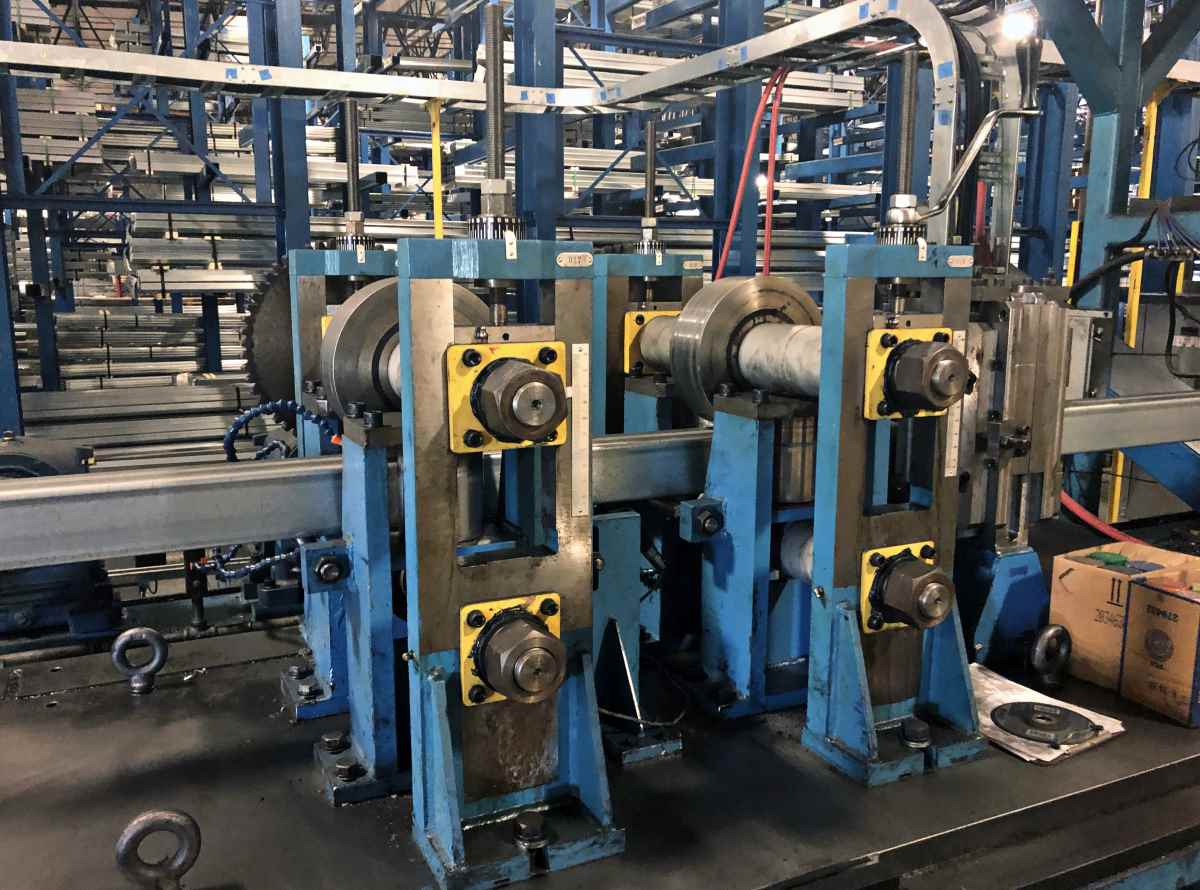

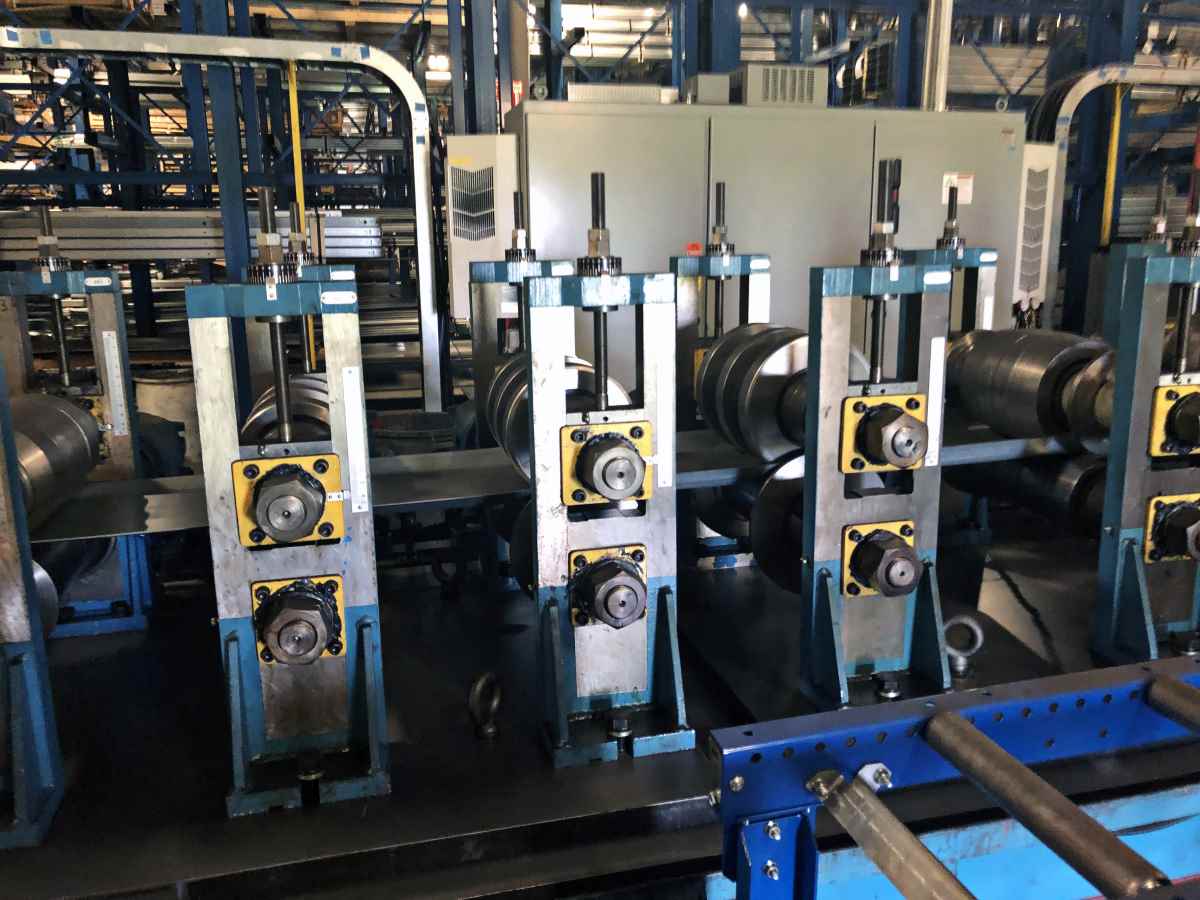

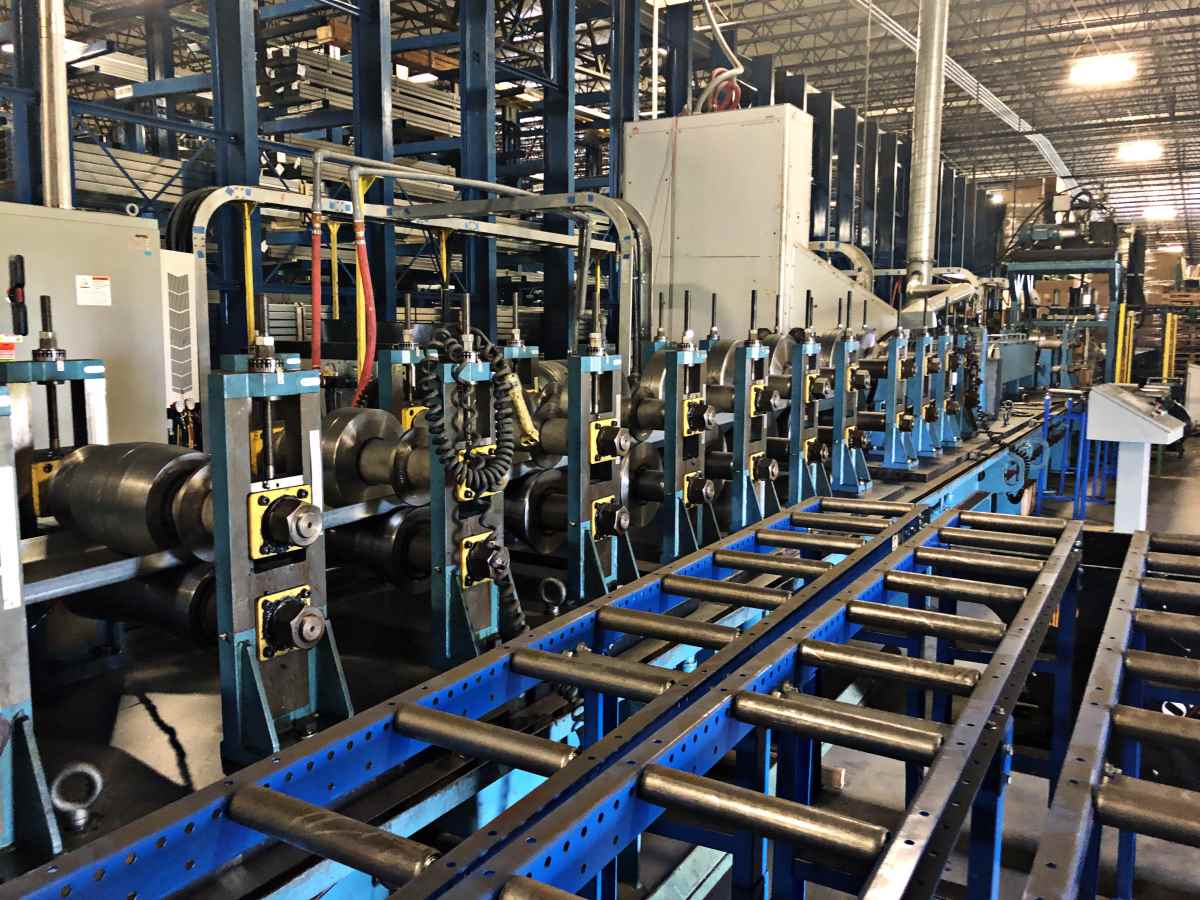

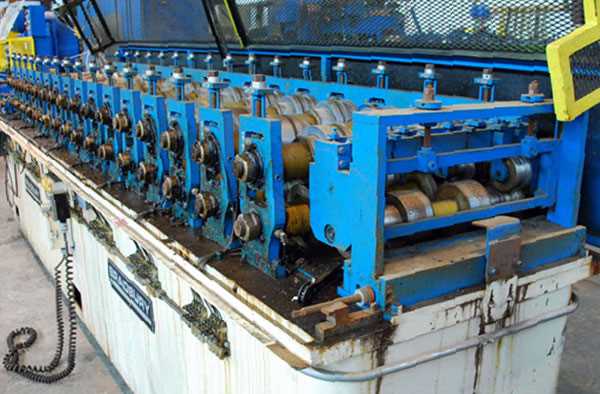

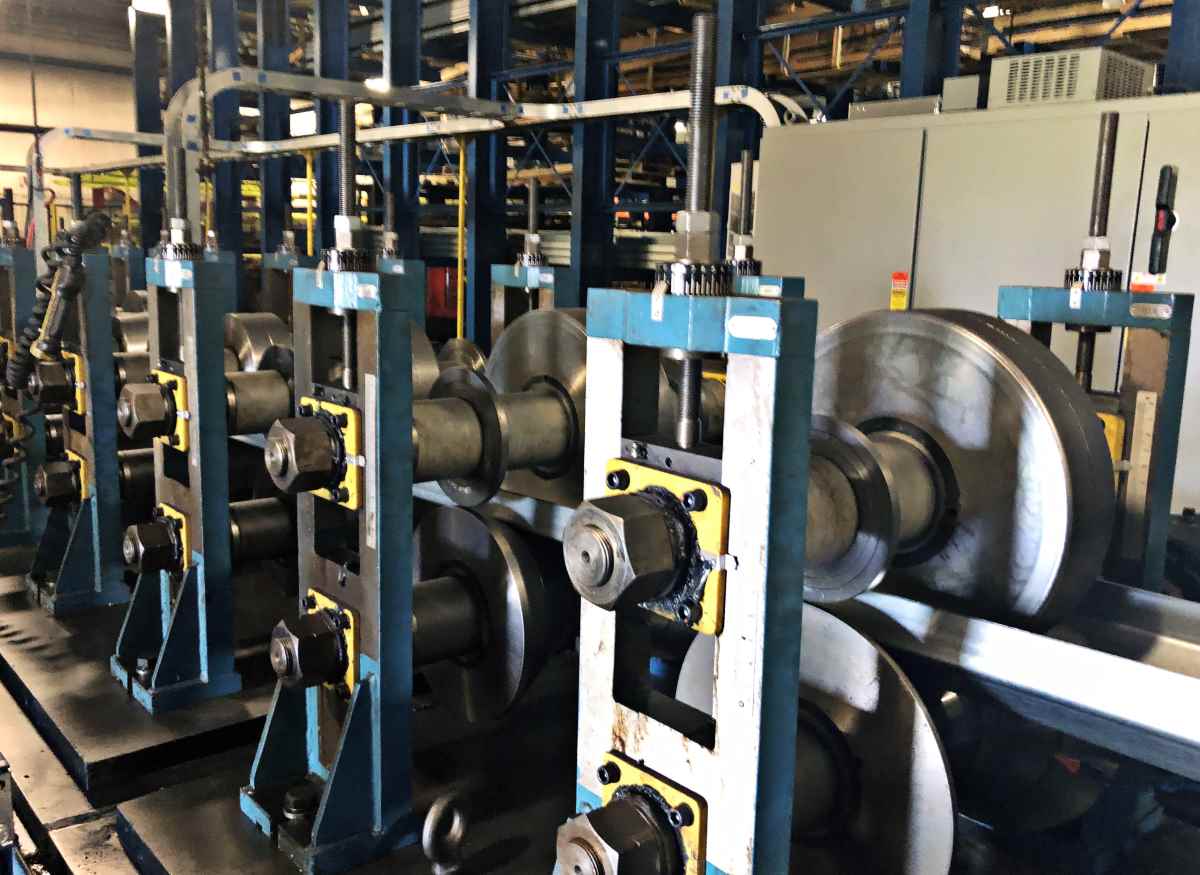

• SAMCO Universal Drive Rafted Rollformer

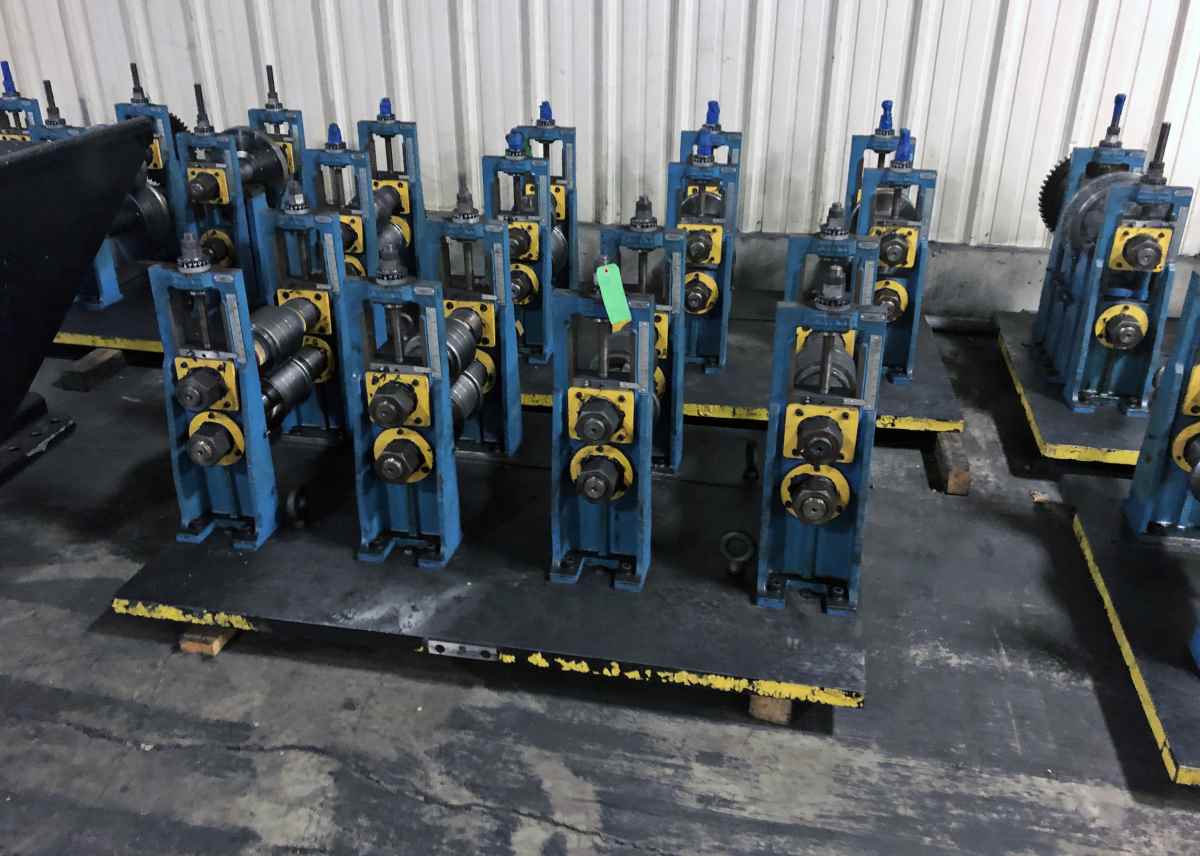

• Roll Tooling Combo Set, All Strut Sizes
• Cut-Off Die & Inserts, Struts
• Pre-Punch For Cut-Off Die, Welded Tube
• Rafted Tops for Welded 4" x 4" Tube

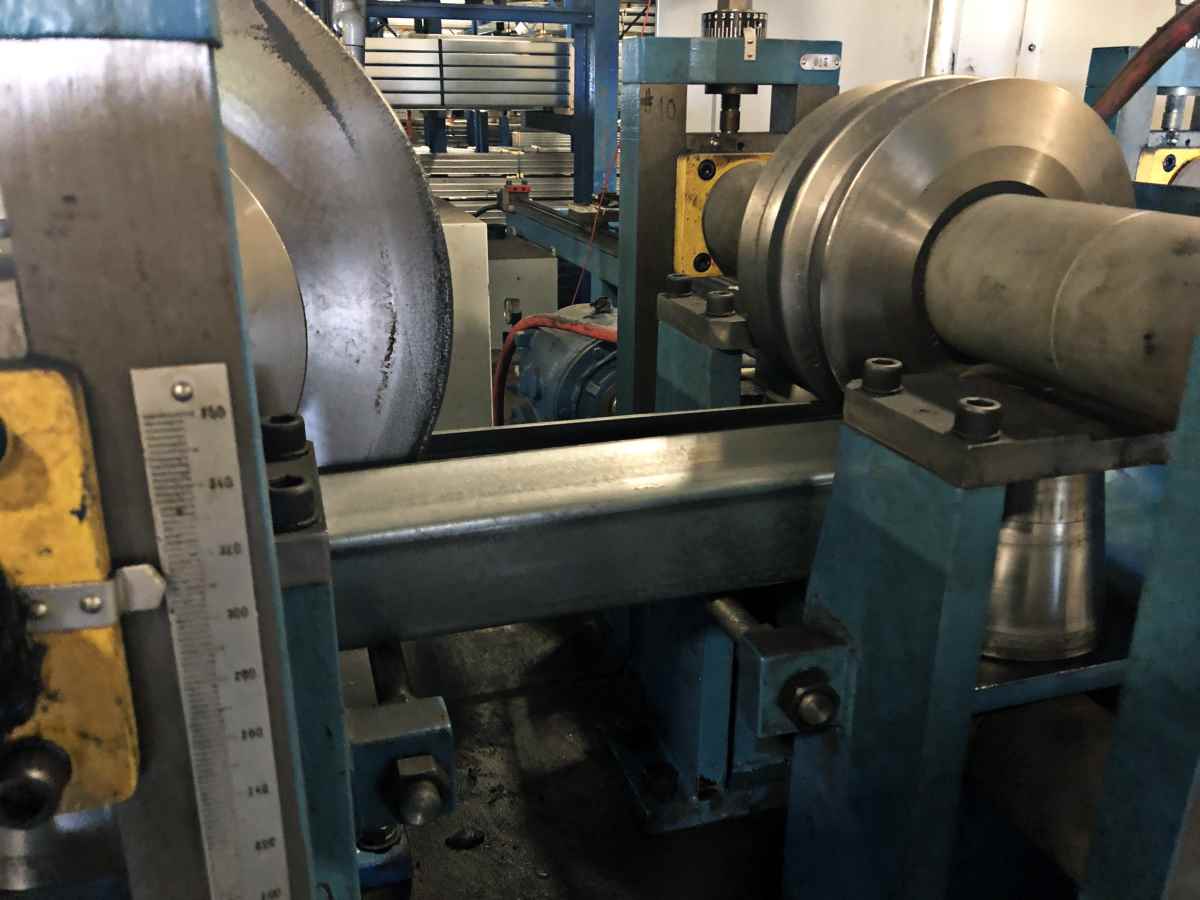

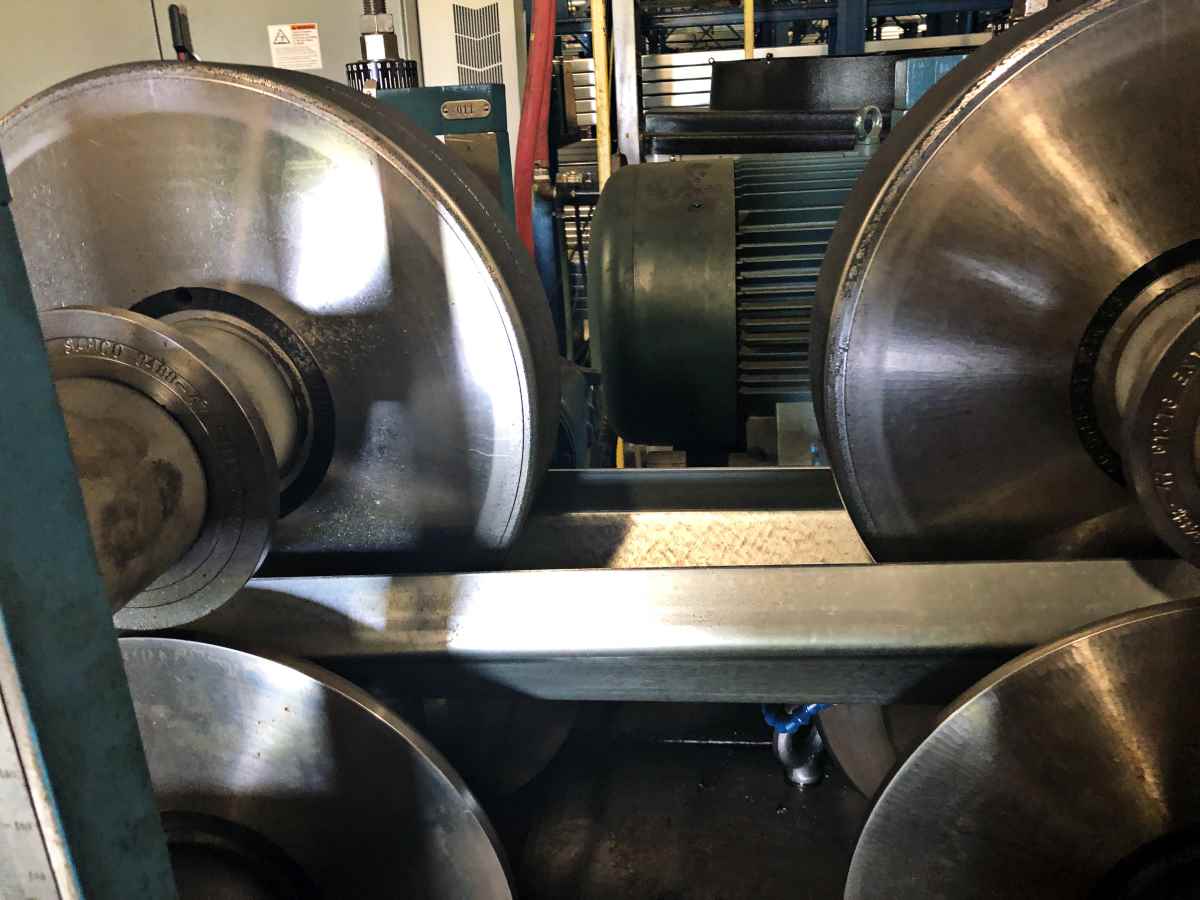

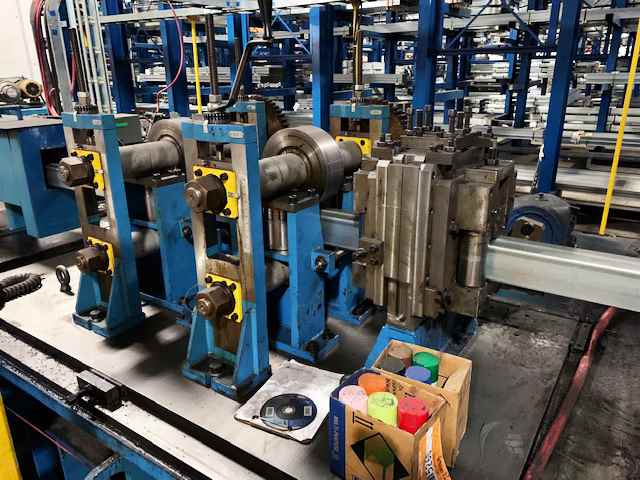

• Roll Tooling Welded Tube 4" x 4"

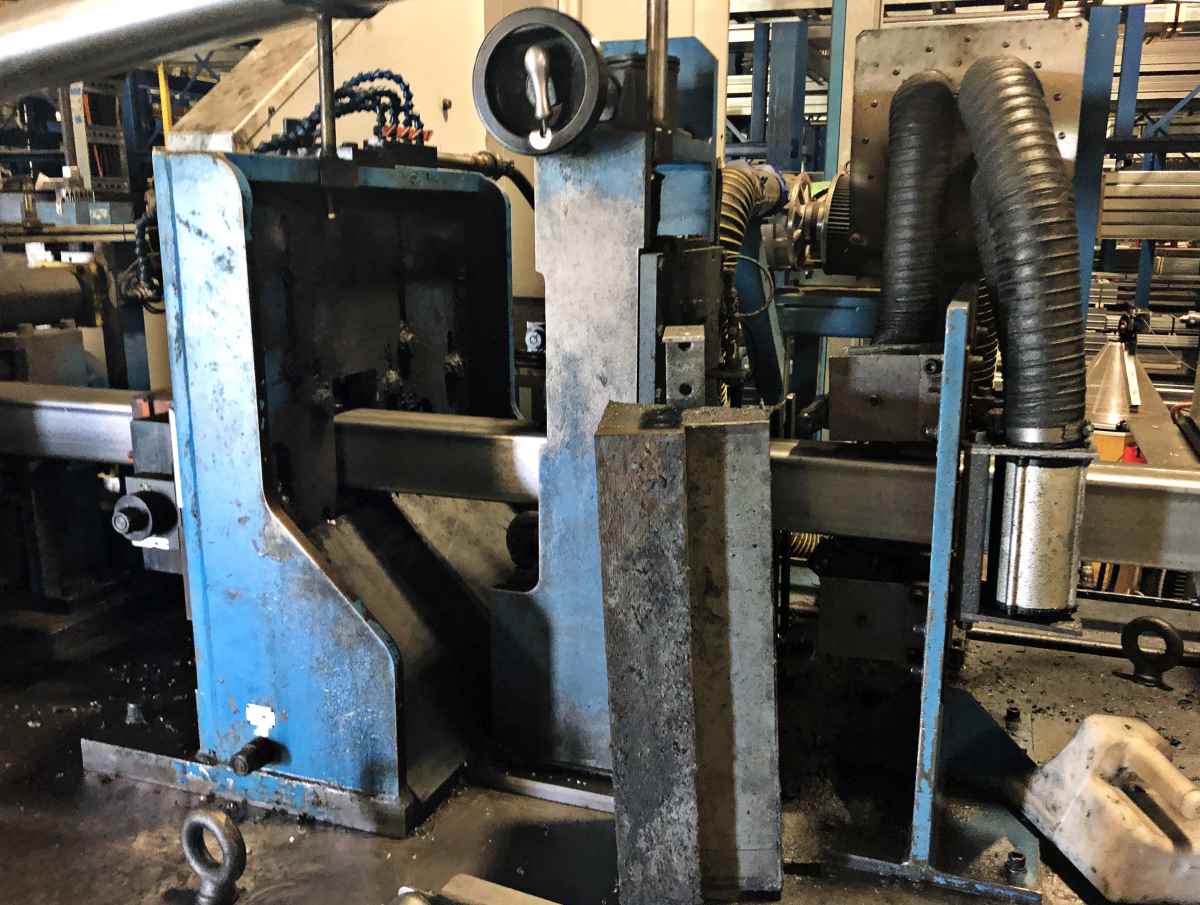

• 100 KW Induction Welder w/Retraction for rollforming

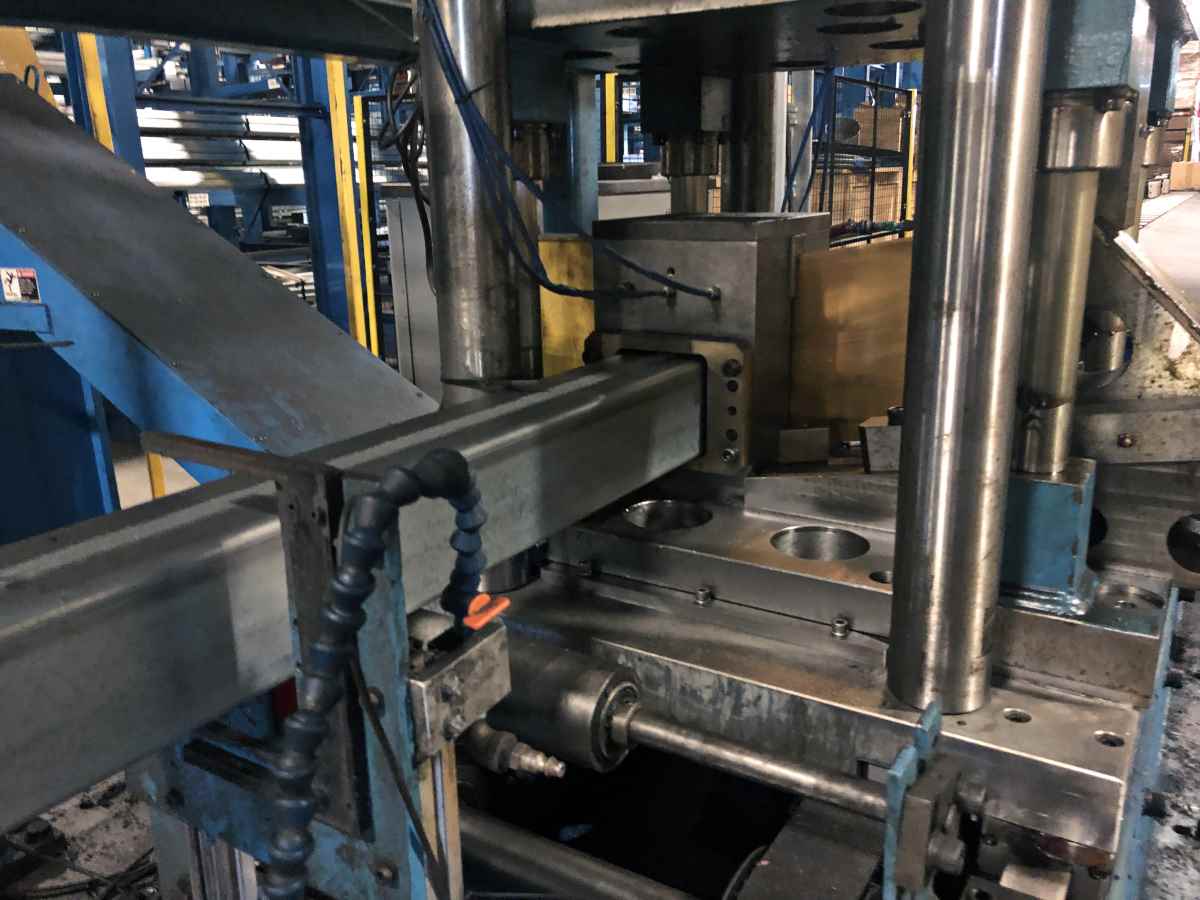

• Cut-Off Die, Welded Tube 4" x 4"

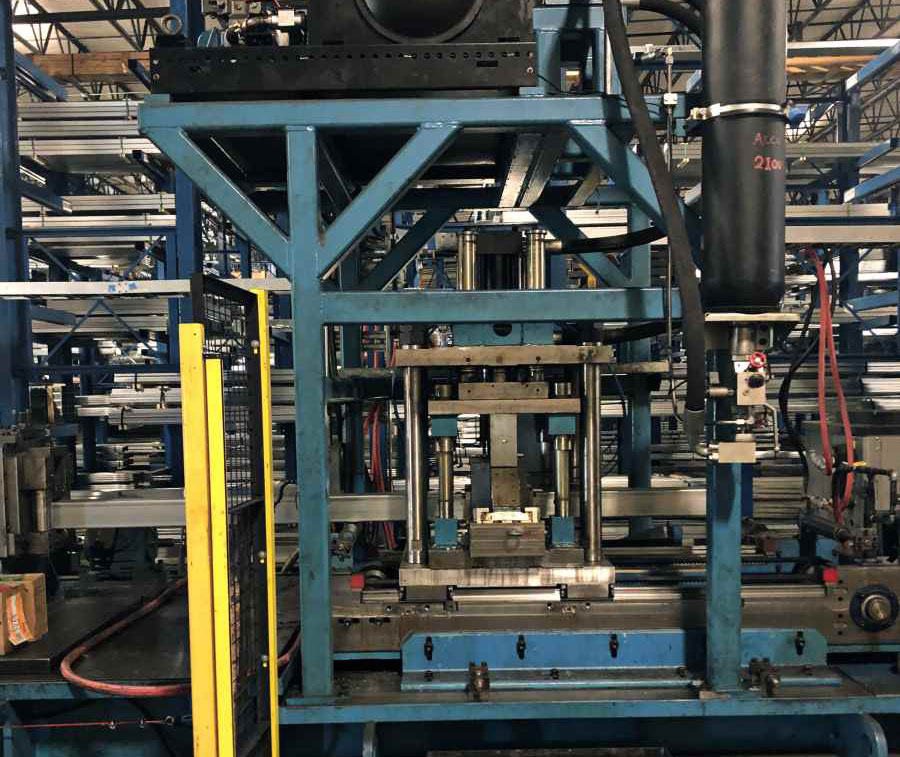

• Hydraulic Flying Cut-Off Press
• Length Control System
• Vacuum Coolant Removal System

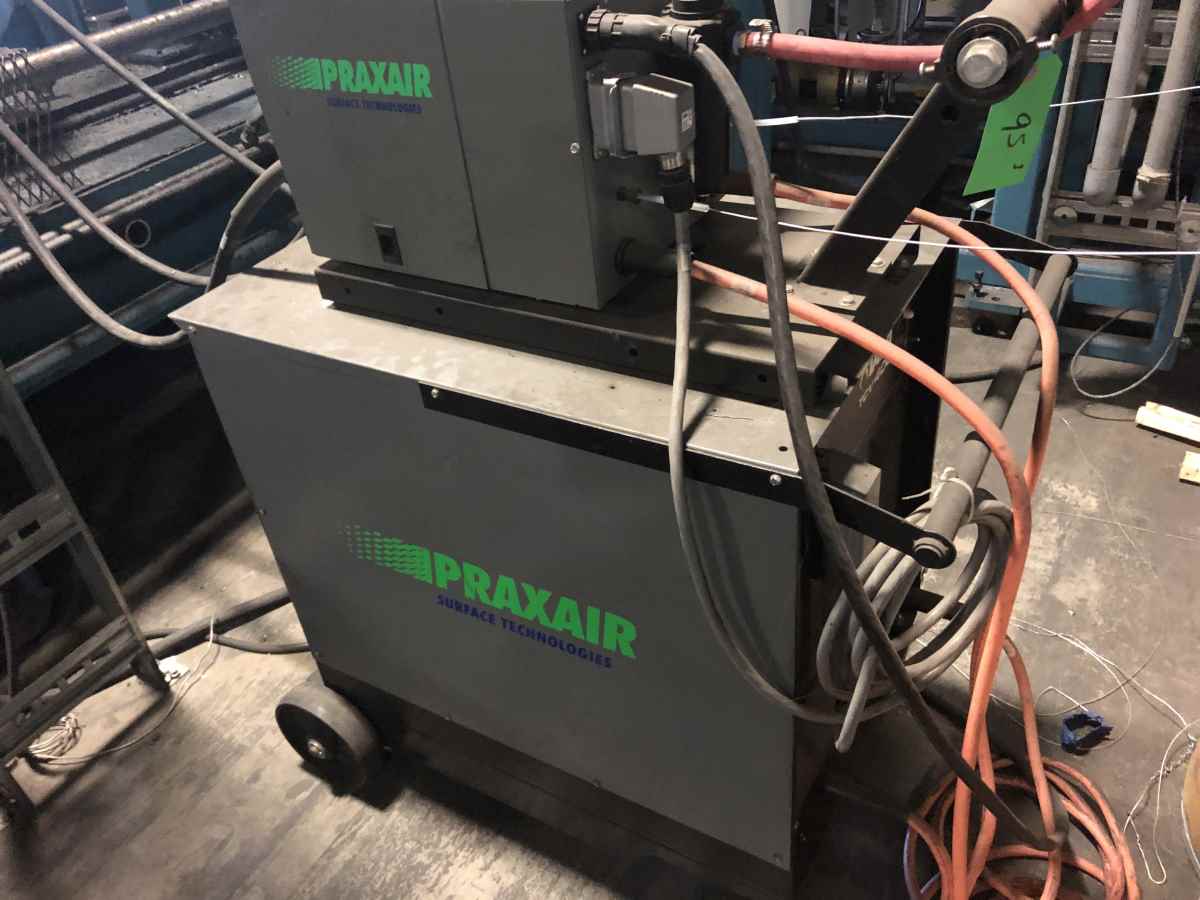

• Zinc Coating System & Integration
• Exit Conveyor/Slant Table & Scissor Lift

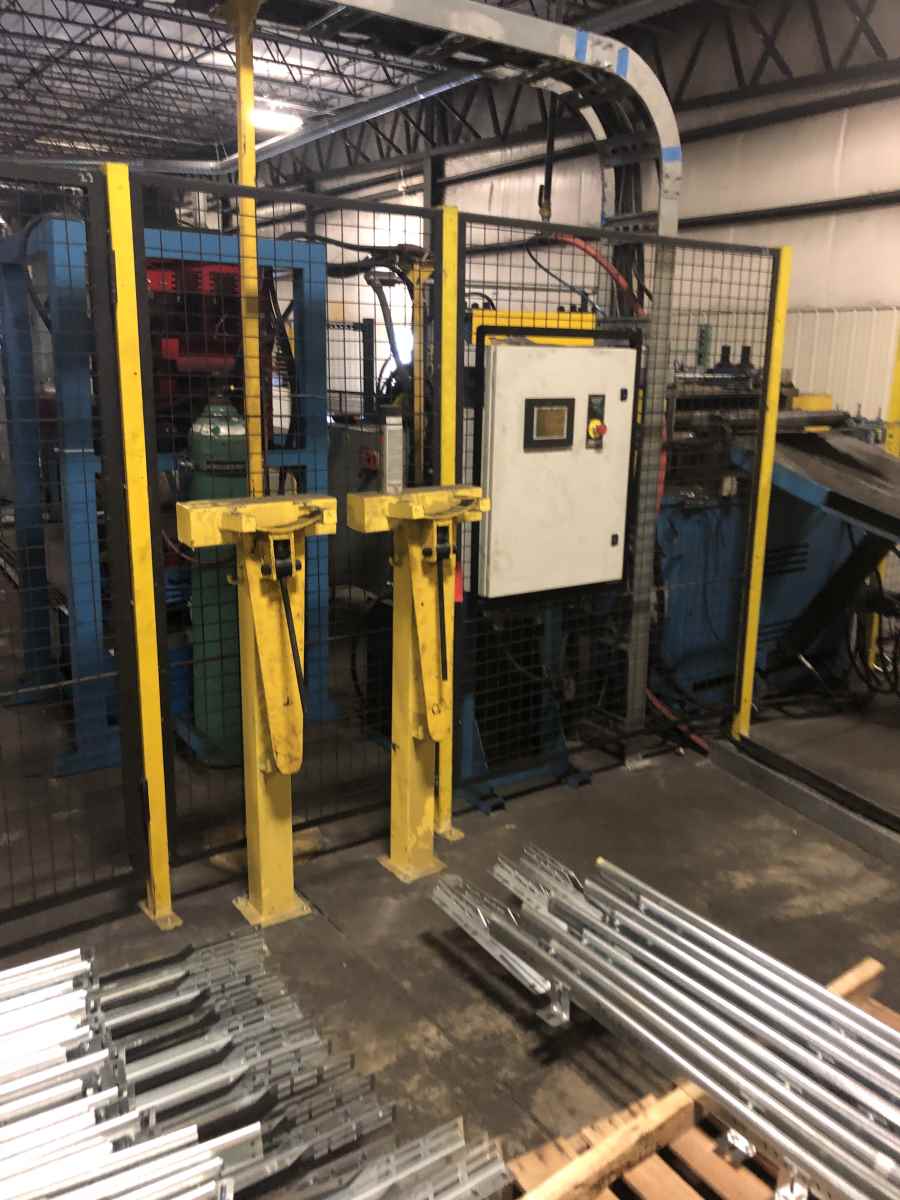

• 2 Light Curtains & Perimeter Safety
• Electrics, Integration & Controls
