COMPLETE Tube Mill Line For Sale!

VIEW VIDEOS



SPECIFICATIONS:
Tube O.D. Range: 1/2" - 3" (12.7 - 76.2mm)
Wall Thickness Range: .018" - .160" (.45 - 4mm)
Wall Thickness Shapes: .120" - .134" (3.17 - 3.4mm)
Drive All Shift Boxes:
Forced Lube System
Line Direction: Left to Right
Max Line Speed: 300 FPM (92 MPM), Max. Gear in Speed, No Load
Max D/T Ratio: 60:1
Min D/T Ratio: 10:1
Max Material Yield: 50,000 PSI

ENTRY EQUIPMENT:

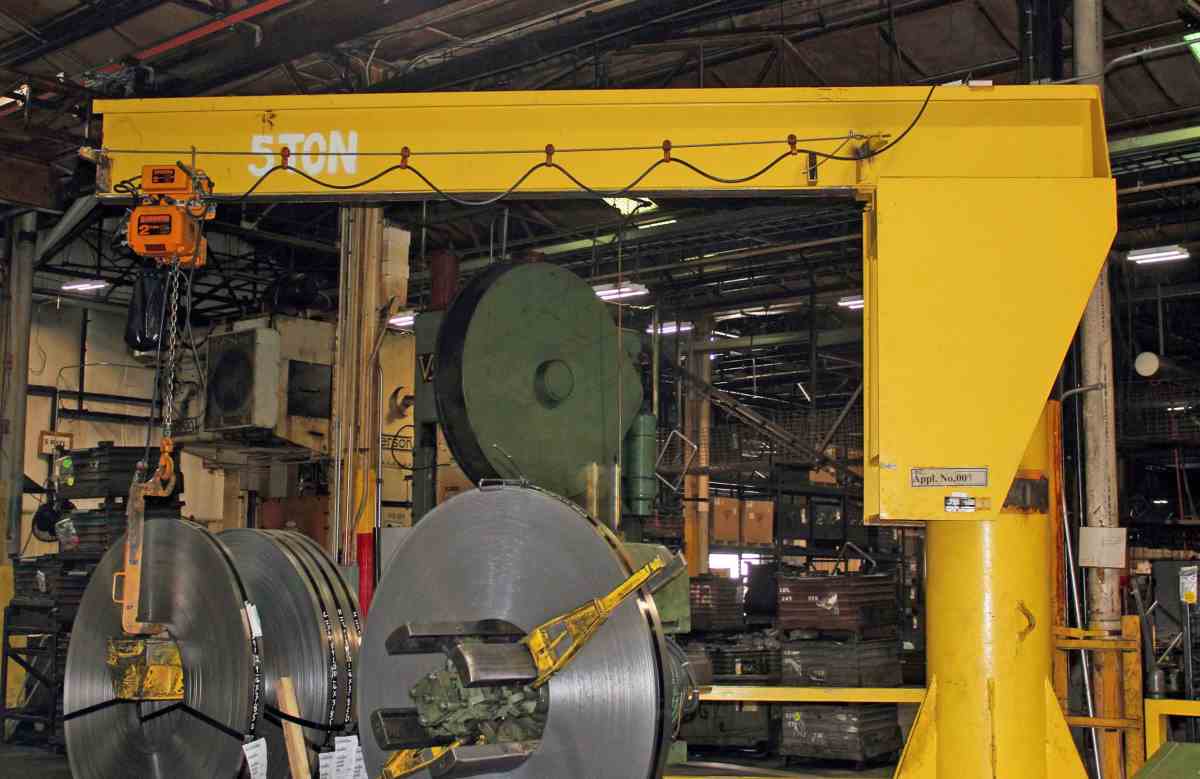

(1) 5 Ton Free Standing Jib Crane
(1) 10,000 Lb. LITTELL Double Uncoiler
(1) KENT PMA-135 Shear/End Welder (New in 2016)
(1) KENT Floop, Model #R229-LE (Rebuilt in 2016)

EQUIPPED WITH:
AC Motors & Drive System: (New in 2016)
Forming Motor: 100 HP 1800 RPM AC VECTOR
Sizing Motor: 100 HP 1800 RPM AC VECTOR
Mill Control System w/ABB Drives & Siemens PLC Controls (New in 2016)

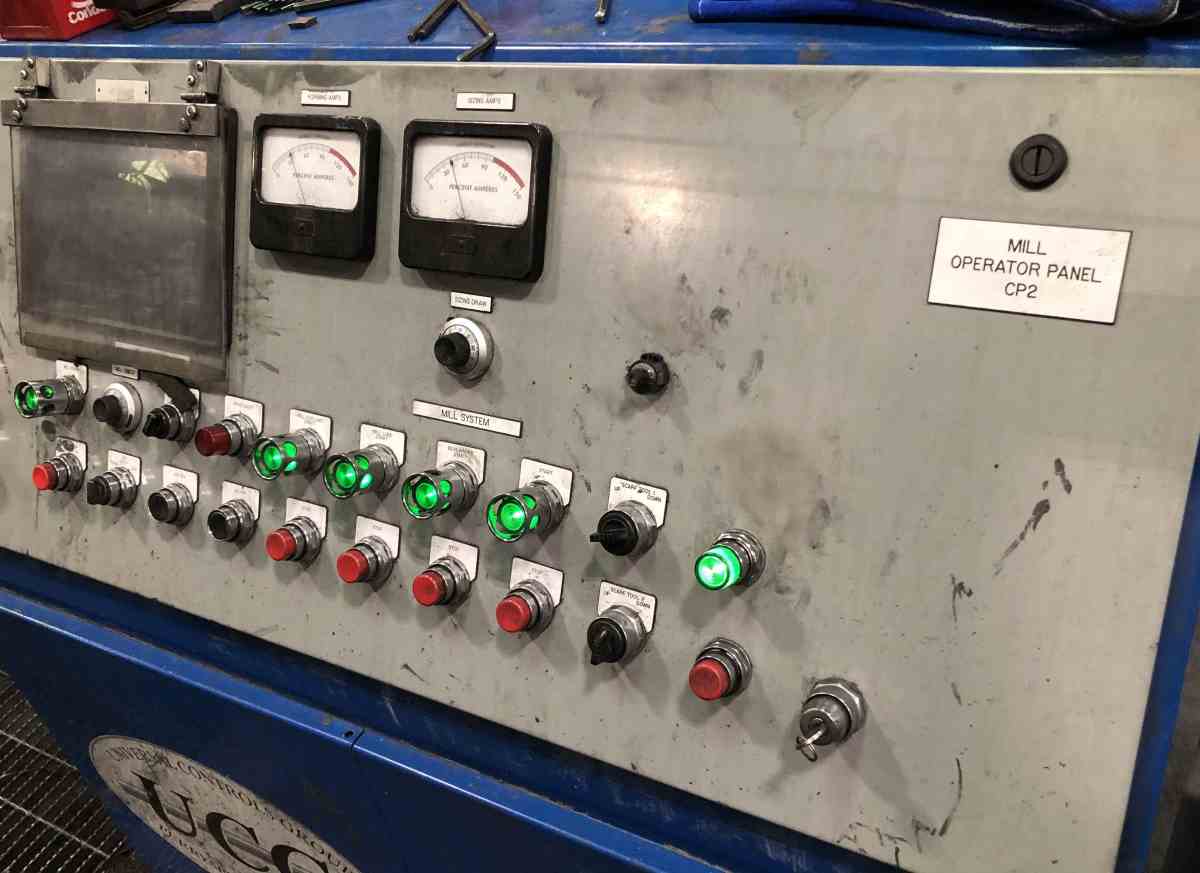

Operator Control Station w/Complete Mill Control System (New in 2016)

GEARBOX DATA:
Type: 3XU
Spindle Diameter: 2.5" (63.5 mm)
Roll Space, Forming: 10" (254 mm)
Roll Space, Fin & Sizing: 5" (127 mm)
Horizontal Centers Breakdown/Fin:
Horizontal Centers, Sizing:
Vertical Adjustment: "All Stands" 5-1/2" - 8-1/2" (139 mm - 215 mm)

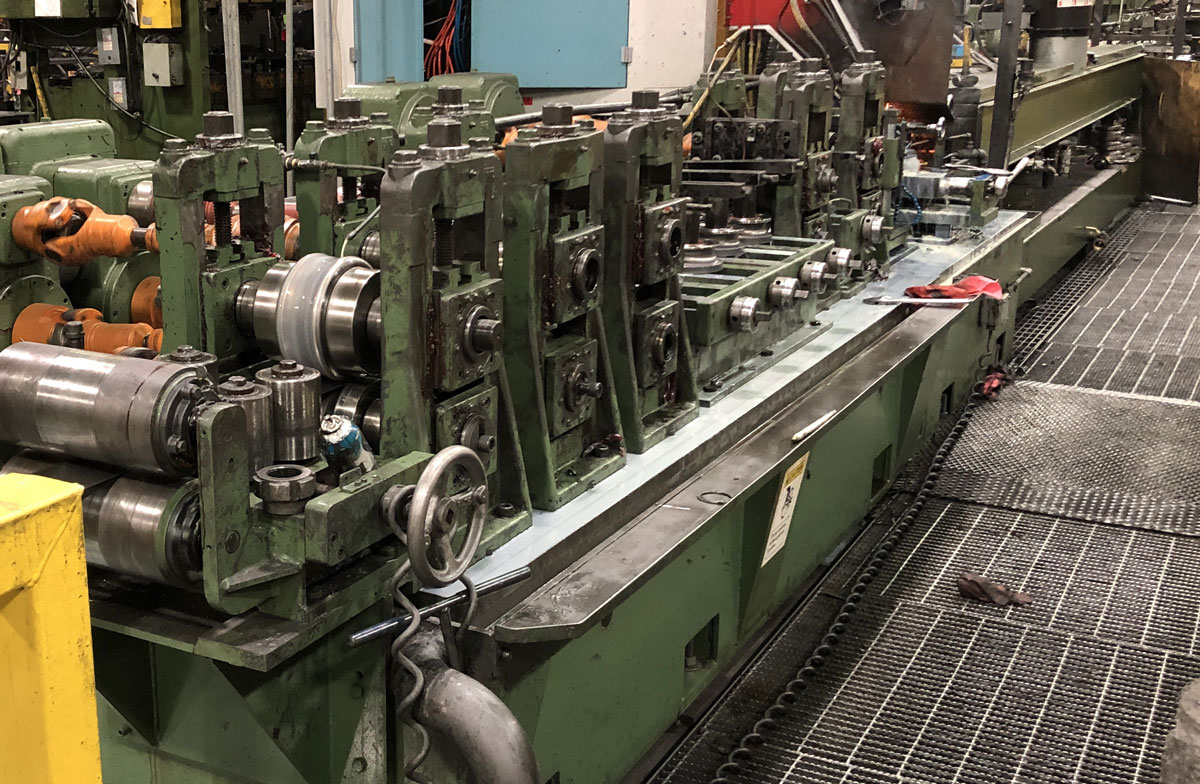

FORMING MILL (Rebuilt in 2016):
(1) Entry Guide
(3) Driven Breakdown Stands
(4) Idle Side Rolls (Cluster Unit)
(2) Driven Fin Stands
(2) Idle Side Rolls

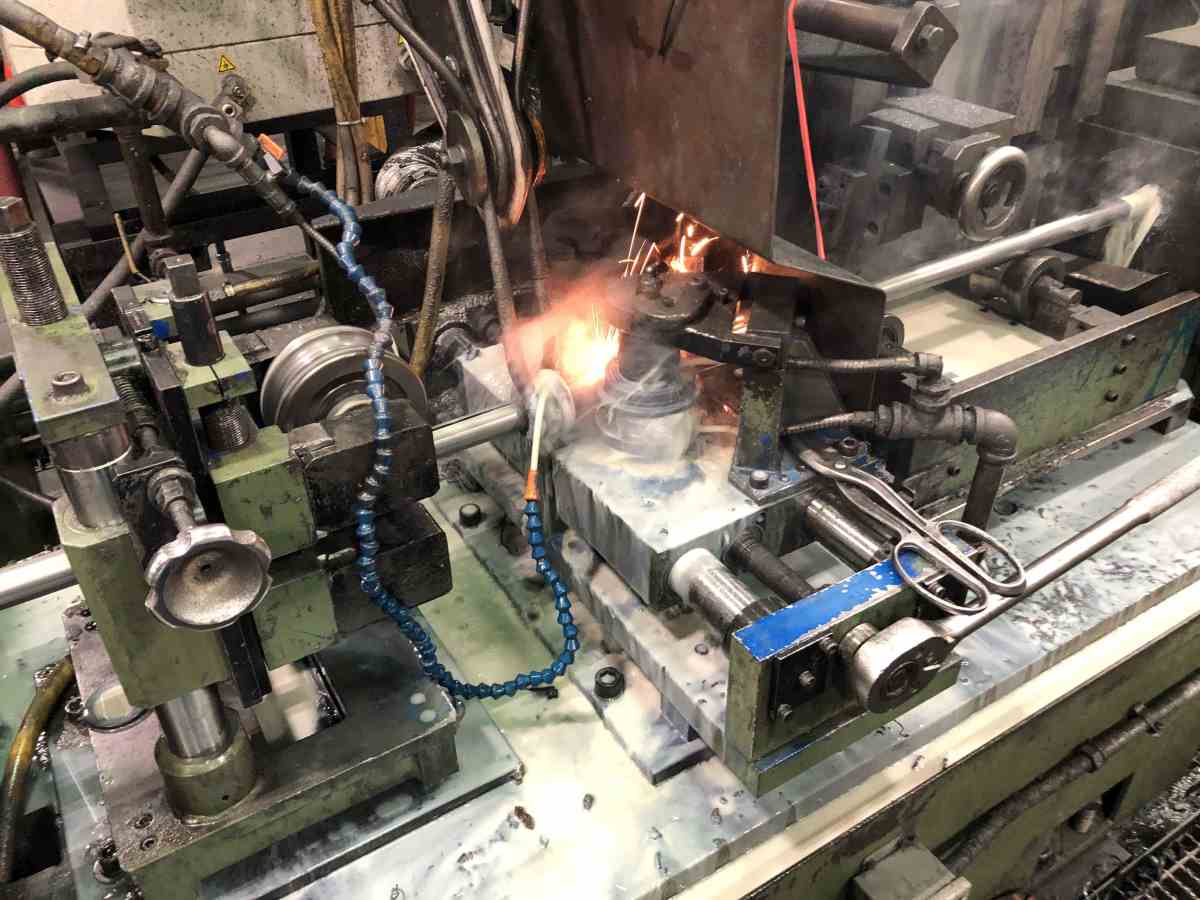

WELDING SECTION (New in 2016):
(1) SAN FENG 300KW HF Solid State Welder
Primary Volts: 460/30/60 HZ
Primary Amps:
Output Power: 300KW
Complete with Heat Exchanger
(1) RMTS 2-Roll Weld Pressure (New in 2016)
(1) Scarfing Stand
(1) RMTS Edge Presentation Unit (New in 2016)

COOLANT SECTION:
Flood Type, 20'

SIZING MILL:
(1) Seam Orientation Stand
(3) Driven Sizing Stands
(3) Idle Side Rolls
(1) RMTS 8-Roll Turkshead (New in 2016)

CUT-OFF:
BETARAM 3" Single Cut-Off (Rebuilt in 2016)
Tube O.D. Range: 1/2" - 3" (12.7 - 76.2 mm)
Wall Thickness: .018" - .160" (.45 - 4.0 mm)

UNIVERSAL CONTROLS, U-TRAK Length Control System (New in 2016):
H.S. Belt Type
Operator Control Desk (New in 2016)
Runout Table: 30'

NOTE: This tube mill was upgraded in 2016 with new drives and accelerator for up to 300FPM.
