UTUBE NUMBER: 850
MANUFACTURER: CUSTOM
MODEL NUMBER:
SERIAL NUMBER:
YEAR:
SPECIFICATIONS:
Tonnage: 22 Tons (Based on 2″ Crank Diameter, Main)
Stroke: 2″
Clamping Via Air Toggle Clamp, One at Each Station
Overall Length of Part: 6″ Minimum, 30″ Maximum
Type of Feed: Turret, Driven by 1/4 HP Electric Motor
Interlocked with Press
Single Back Geared Machine Mechanical Clutch, Knife Type
Speed: 60 SPM (Calculated)

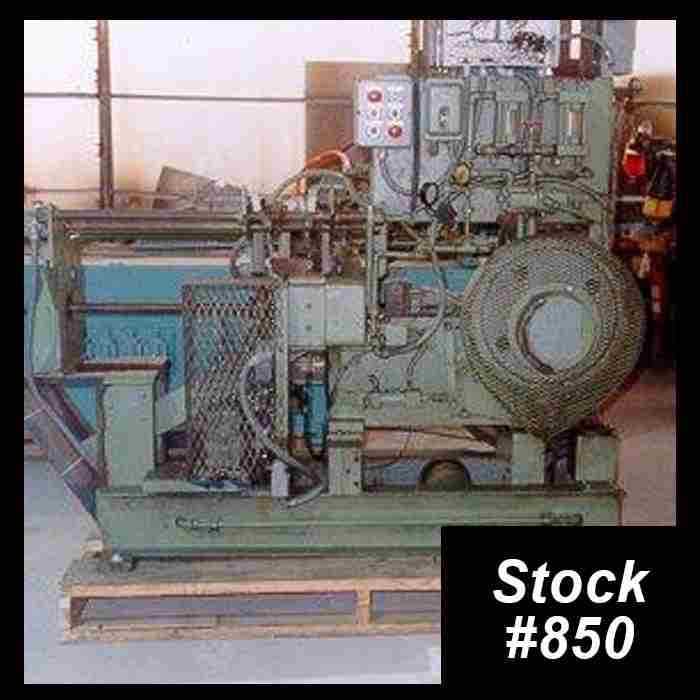

This is a Unique Horizontal Press Type Tube & Small Wire Diameter End Former. Parts Are Fed Into The Machine From A Gravity Magazine Rack. A Rotating Turret Picks Up a Part & Rotates Down To The First Station For The First Blow, Then Rotates It To The Second Station Where It Is Struck a Second Time. Therefore, Producing a Finished Part Each Machine Cycle.
MOTOR DATA: 1 HP, 220 / 440 / 3 / 60 – 1800 RPM
CONDITION: Very Good
OVERALL DIMENSIONS: 6′ x 3′ x 7′
APPROXIMATE WEIGHT: 3,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
