12″ x 15″ x 5,000 Lb. BRACE #1A Slitting Machine

Stock #: 2793

Year End Sale!

10% OFF EVERYTHING!

Limited Time Offer! Applies only to machinery paid in full no later than 12/31/2019. Offer valid for original list price. Not valid with any other specials, discounts, custom lines or machinery projects currently in negotiations.


SKU: 2793 Categories: ,

UTUBE NUMBER: 2793
MANUFACTURER: W BRACE, ENGLAND
MODEL NUMBER: 1A

PRELIMINARY SPECIFICATIONS:
Maximum Strip Width: 12″ (305 mm)
Line Direction: Left to Right
Arbor Diameter: 1-1/2″
Arbor Length: 15″ (381 mm)
Strip Thickness Range: .004″ – .006″ (.101 – .152 mm)
Maximum Coil Weight: 5,000 Lbs. (2,267 kgs.) On Recoiler
Recoiler Arbor: 100 mm diameter x 15-1/2″ (393 mm) long
Maximum Coil O.D.: 15″ (381 mm) On Recoiler
Estimated Line Speed: 120 FPM

EQUIPPED WITH:
Entry Pinch Rolls
Motor: 7.5 HP, 220 / 440 / 3 / 60 – 870 RPM
Operator Control Console

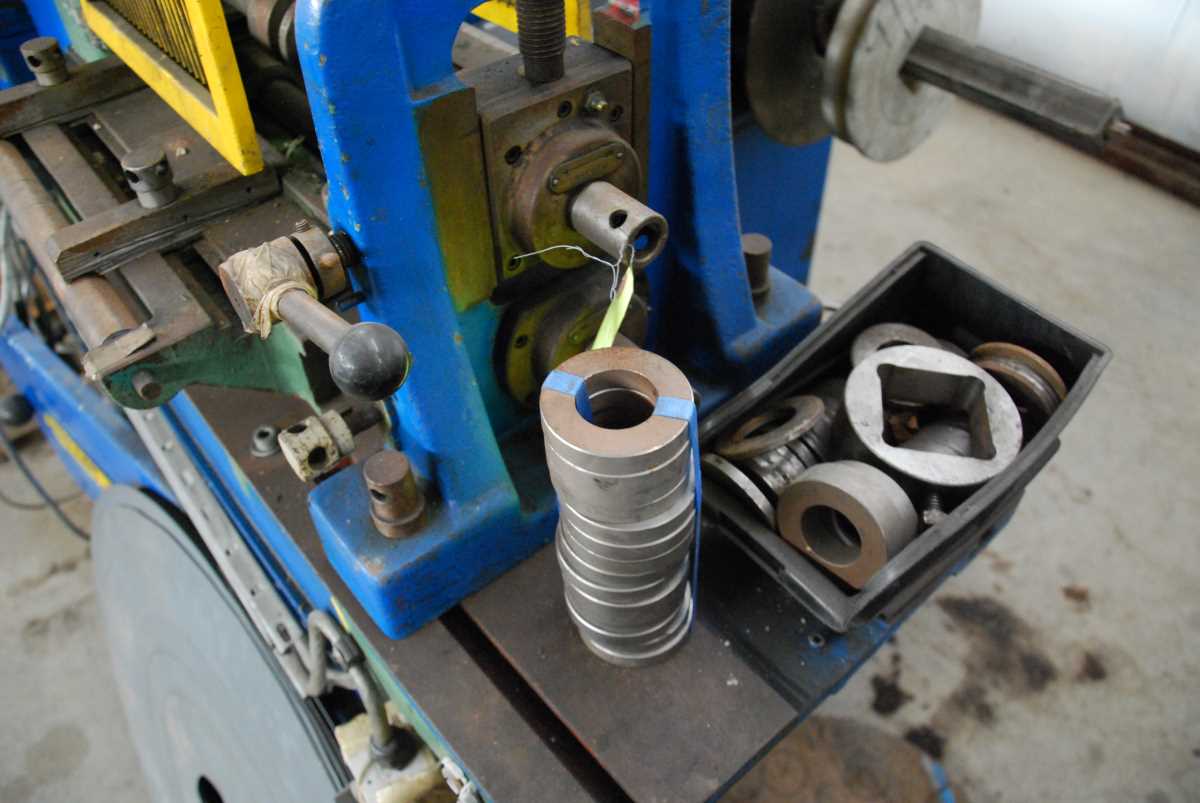

TOOLING:
8 Pieces – 4-1/4″ x .343″
13 Pieces – 4-1/2″ x .100″
18 Pieces – 3-3/4″ x .093″
8 Pieces – 3-7/8″ x .078″
7 Pieces – 3-7/8″ x .062″
5 Pieces – 3-7/8″ x .057″

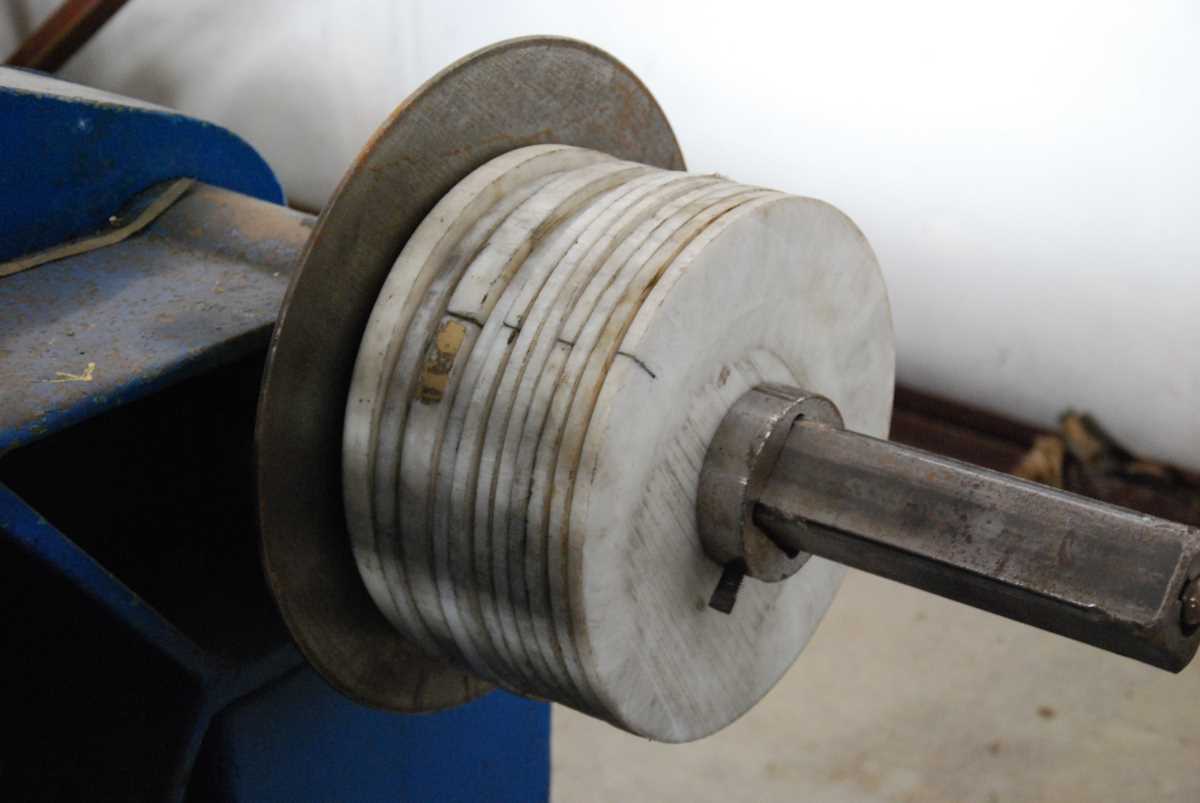

Spacers
10 Plastic Separators
10 Steel Separators

OVERALL DIMENSIONS: 6′ x 5′ x 5′
APPROXIMATE WEIGHT: 3,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
