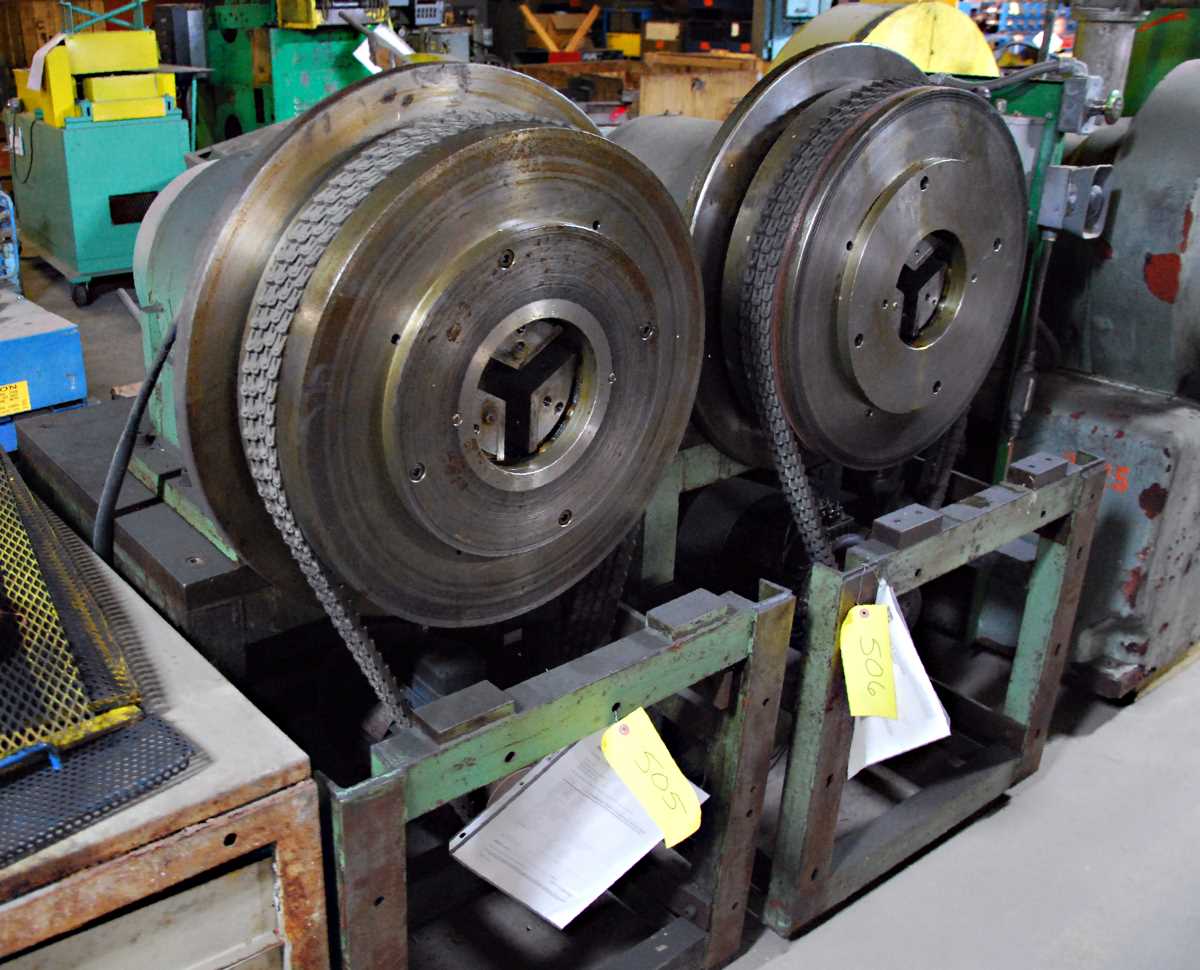

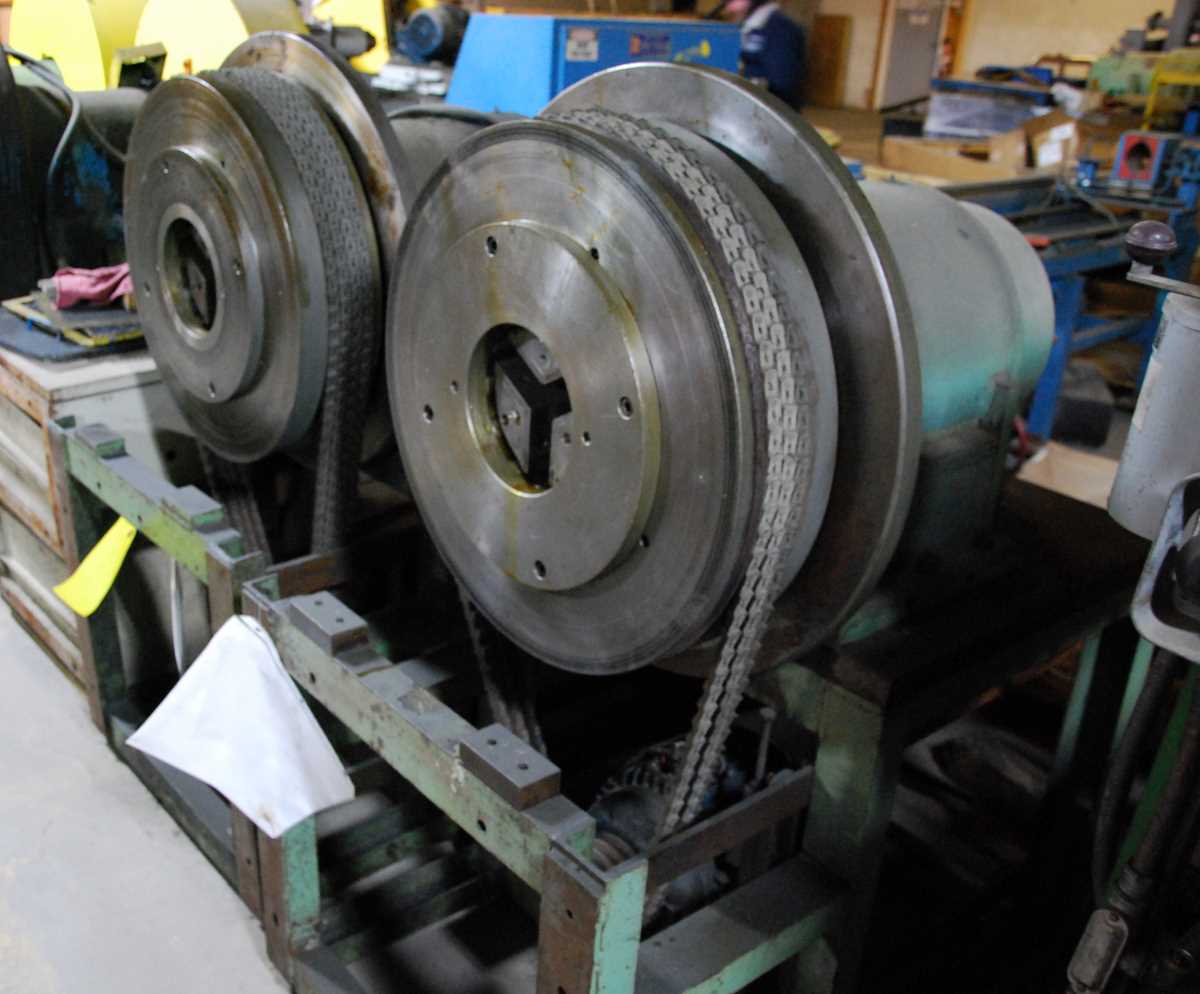

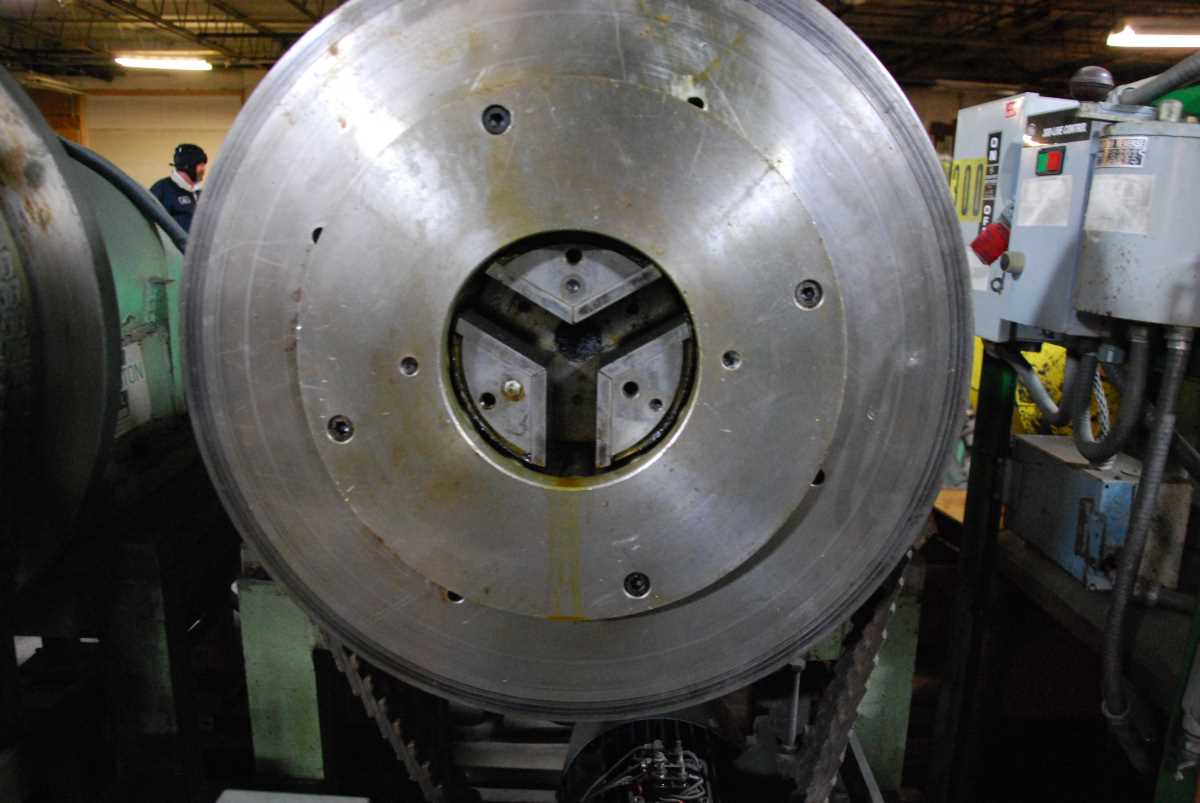

1-1/4″ (31.7 mm) TORRINGTON #323SS 3-Die Stationary Spindle Swager

Stock #: 506

SKU: 506 Categories: ,

UTUBE NUMBER: 506
MANUFACTURER: TORRINGTON
MODEL NUMBER: 323SS
SERIAL NUMBER: HTV32355-2-80
YEAR: 1980

SPECIFICATIONS:
Capacities:
Solids (60,000 PSI): 1/2″ (12.7 mm)
Tubing (Standard Dies): 1-1/4″ (31.7 mm)
Square Tubing (Special Dies): 1″ (25.4 mm)
Taper Per Operation: 3-3/8″ (85.7 mm)
Hole Through Spindle: 1-1/2″ (38.1 mm) Diameter
Die Size: 1-1/2″ w X 3-1/2″ L X 1.813″ H
Backer Size: 1-1/2″ W x 3-1/2″ L x 1-1/2″ H
(12) Rolls: 1-3/4″ (44.4 mm) Diameter x 3-7/8″ (98.4 mm)
Spindle Speed: 340 RPM
Blows Per Minute: 2,400
Floor to Spindle Center Line: 36″

EQUIPPED WITH:
Multiple V-Belt Drive
AC Motor 5.5 KW, 415/3/50, 1435 RPM

OVERALL DIMENSIONS: 10′ x 4′ x 4′ H
APPROXIMATE WEIGHT: 3,270 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
