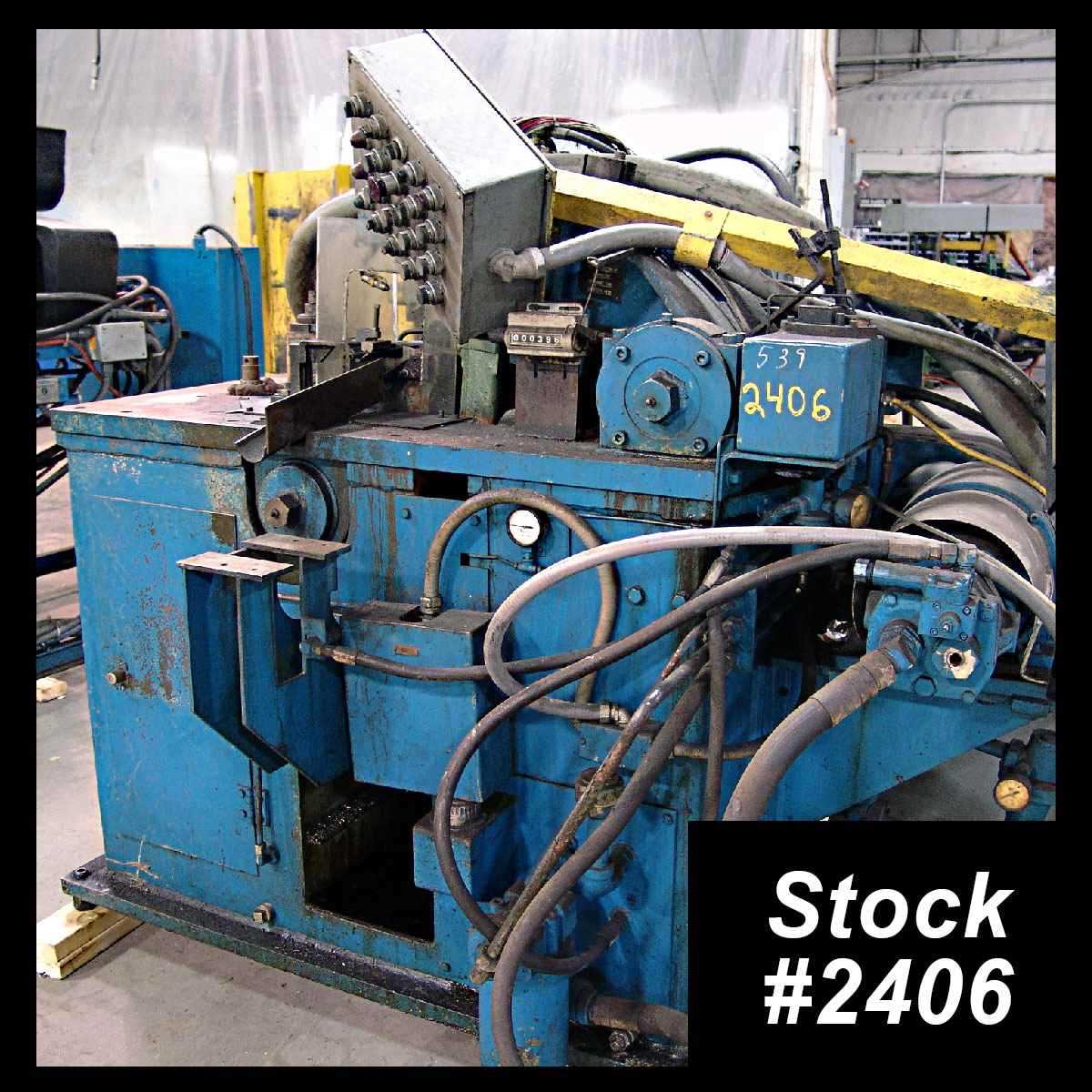

1-1/2″ (38.1 mm) x .065″ (1.65 mm) PINES 15 Dynacut

Stock #: 2406

SKU: 2406 Categories: ,

UTUBE NUMBER: 2406
MANUFACTURER: PINES
MODEL NUMBER: 15
SERIAL NUMBER: 33550-73236
YEAR: 1973

SPECIFICATIONS:
Maximum Tube Diameter: 1-1/2" (38.1 mm)
Minimum Tube Diameter: 1/8" (3.17 mm)
Maximum Wall Thickness: .065" (1.65 mm)
Maximum Cut Length: 60" (Standard Tools)
Minimum Cut Length: 2-1/2" (Standard Tools)
Production Rate, Gross: 6,200 Pcs. Per Hour

EQUIPPED WITH:
Push Button Station
BIJUR Lube System
End Cropping
5 HP, 230 / 460 – 1800 RPM Motor

TOOLING:
.250" (6.35 mm) in Machine

OVERALL DIMENSIONS:
4′ 6" W x 6′ L x 4′ High

APPROXIMATE WEIGHT:
10,000 Lbs.

LOCATION:
Universal Warehouse, Perrysburg, Ohio

CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS PINES 15 DYNACUT BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ OUR TERMS AND CONDITIONS OF SALE.
